The segment threshold determines when a segment is committed in real-time tables.

When data is first ingested from a streaming provider like Kafka, Pinot stores the data in a consuming segment.

This segment is on the disk of the server(s) processing a particular partition from the streaming provider.

However, it's not until a segment is committed that the segment is written to the deep store. The segment threshold decides when that should happen.

Why is the segment threshold important?

The segment threshold is important because it ensures segments are a reasonable size.

When queries are processed, smaller segments may increase query latency due to more overhead (number of threads spawned, meta data processing, and so on).

Larger segments may cause servers to run out of memory. When a server is restarted, the consuming segment must start consuming from the first row again, causing a lag between Pinot and the streaming provider.

Mark Needham explains the segment threshold

Apache Pinot™ is a database designed to deliver highly concurrent, ultra-low-latency queries on large datasets through a set of common data model abstractions. Delivering on these goals requires several foundational architectural commitments, including:

• Storing data in columnar form to support high-performance scanning

• Sharding of data to scale both storage and computation

• A distributed architecture designed to scale capacity linearly

• A tabular data model read by SQL queries

To learn about Pinot components, terminology, and gain a conceptual understanding of how data is stored in Pinot, review the following sections:

Segments in Pinot tables have a retention time, after which the segments are deleted. Typically, offline tables retain segments for a longer period of time than real-time tables.

The removal of segments is done by the retention manager. By default, the retention manager runs once every 6 hours.

The retention manager purges two types of segments:

• Expired segments: Segments whose end time has exceeded the retention period.

• Replaced segments: Segments that have been replaced as part of the

There are a couple of scenarios where segments in offline tables won't be purged:

• If the segment doesn't have an end time. This would happen if the segment doesn't contain a time column.

• If the segment's table has a segmentIngestionType of REFRESH.

If the retention period isn't specified, segments aren't purged from tables.

The retention manager initially moves these segments into a Deleted Segments area, from where they will eventually be permanently removed.

Running Pinot

To simplify the getting started experience, Apache Pinot™ ships with quick start guides that launch Pinot components in a single process and import pre-built datasets.

For a full list of these guides, see .

Deploy to a public cloud

Data import examples

Getting data into Pinot is easy. Take a look at these two quick start guides which will help you get up and running with sample data for offline and real-time .

These quickstart guides show you how to run an Apache Pinot cluster using Kubernetes on different public cloud providers.

Learn about time boundaries in hybrid tables. Hybrid tables are when we have offline and real-time tables with the same name.

When querying these tables, the Pinot broker decides which records to read from the offline table and which to read from the real-time table. It does this using the time boundary.

How is the time boundary determined?

The time boundary is determined by looking at the maximum end time of the offline segments and the segment ingestion frequency specified for the offline table.

If it's set to hourly, then:

timeBoundary = Maximum end time of offline segments - 1 hour

Otherwise:

timeBoundary = Maximum end time of offline segments - 1 day

It is possible to force the hybrid table to use max(all offline segments' end time) by calling the API (V 0.12.0+)

curl -X POST \
  "http://localhost:9000/tables/{tableName}/timeBoundary" \
  -H "accept: application/json"

Note that this will not automatically update the time boundary as more segments are added to the offline table, and must be called each time a segment with more recent end time is uploaded to the offline table. You can revert back to using the derived time boundary by calling API:

curl -X DELETE \
  "http://localhost:9000/tables/{tableName}/timeBoundary" \
  -H "accept: application/json"

Querying

When a Pinot broker receives a query for a hybrid table, the broker sends a time boundary annotated version of the query to the offline and real-time tables.

For example, if we executed the following query:

SELECT count(*)
FROM events

The broker would send the following query to the offline table:

SELECT count(*)
FROM events_OFFLINE
WHERE timeColumn <= $timeBoundary

And the following query to the real-time table:

SELECT count(*)
FROM events_REALTIME
WHERE timeColumn > $timeBoundary

The results of the two queries are merged by the broker before being returned to the client.

Range indexing allows you to get better performance for queries that involve filtering over a range.

It would be useful for a query like the following:

SELECT COUNT(*)
FROM baseballStats
WHERE hits > 11

A range index is a variant of an inverted index, where instead of creating a mapping from values to columns, we create mapping of a range of values to columns. You can use the range index by setting the following config in the table configuration.

{
    "tableIndexConfig": {
        "rangeIndexColumns": [
            "column_name",
            ...
        ],
        ...
    }
}

Range index is supported for dictionary encoded columns of any type as well as raw encoded columns of a numeric type. Note that the range index can also be used on a dictionary encoded time column using STRING type, since Pinot only supports datetime formats that are in lexicographical order.

Apache Pinot™ is a real-time distributed online analytical processing (OLAP) datastore. Use Pinot to ingest and immediately query data from streaming or batch data sources (including, Apache Kafka, Amazon Kinesis, Hadoop HDFS, Amazon S3, Azure ADLS, and Google Cloud Storage).

Apache Pinot includes the following:

• Ultra low-latency analytics even at extremely high throughput.

• Columnar data store with several smart indexing and pre-aggregation techniques.

• Scaling up and out with no upper bound.

• Consistent performance based on the size of your cluster and an expected query per second (QPS) threshold.

It's perfect for user-facing real-time analytics and other analytical use cases, including internal dashboards, anomaly detection, and ad hoc data exploration.

User-facing real-time analytics

User-facing analytics refers to the analytical tools exposed to the end users of your product. In a user-facing analytics application, all users receive personalized analytics on their devices, resulting in hundreds of thousands of queries per second. Queries triggered by apps may grow quickly in proportion to the number of active users on the app, as many as millions of events per second. Data generated in Pinot is immediately available for analytics in latencies under one second.

User-facing real-time analytics requires the following:

• Fresh data. The system needs to be able to ingest data in real time and make it available for querying, also in real time.

• Support for high-velocity, highly dimensional event data from a wide range of actions and from multiple sources.

• Low latency. Queries are triggered by end users interacting with apps, resulting in hundreds of thousands of queries per second with arbitrary patterns.

• Reliability and high availability.

• Scalability.

• Low cost to serve.

Why Pinot?

Pinot is designed to execute OLAP queries with low latency. It works well where you need fast analytics, such as aggregations, on both mutable and immutable data.

User-facing, real-time analytics

Pinot was originally built at LinkedIn to power rich interactive real-time analytics applications, such as Who Viewed Profile, Company Analytics, Talent Insights, and many more. UberEats Restaurant Manager is another example of a user-facing analytics app built with Pinot.

Real-time dashboards for business metrics

Pinot can perform typical analytical operations such as slice and dice, drill down, roll up, and pivot on large scale multi-dimensional data. For instance, at LinkedIn, Pinot powers dashboards for thousands of business metrics. Connect various business intelligence (BI) tools such as Superset, Tableau, or PowerBI to visualize data in Pinot.

Enterprise business intelligence

For analysts and data scientists, Pinot works well as a highly-scalable data platform for business intelligence. Pinot converges big data platforms with the traditional role of a data warehouse, making it a suitable replacement for analysis and reporting.

Enterprise application development

For application developers, Pinot works well as an aggregate store that sources events from streaming data sources, such as Kafka, and makes it available for a query using SQL. You can also use Pinot to aggregate data across a microservice architecture into one easily queryable view of the domain.

Pinot tenants prevent any possibility of sharing ownership of database tables across microservice teams. Developers can create their own query models of data from multiple systems of record depending on their use case and needs. As with all aggregate stores, query models are eventually consistent.

Get started

If you're new to Pinot, take a look at our Getting Started guide:

To start importing data into Pinot, see how to import batch and stream data:

To start querying data in Pinot, check out our Query guide:

Learn

For a conceptual overview that explains how Pinot works, check out the Concepts guide:

To understand the distributed systems architecture that explains Pinot's operating model, take a look at our basic architecture section:

Apache Pinot™ is a database designed to deliver highly concurrent, ultra-low-latency queries on large datasets through a set of common data model abstractions. Delivering on these goals requires several foundational architectural commitments, including:

• Storing data in columnar form to support high-performance scanning

• Sharding of data to scale both storage and computation

• A distributed architecture designed to scale capacity linearly

• A tabular data model read by SQL queries

Components

Learn about the major components and logical abstractions used in Pinot.

Operator reference

Developer reference

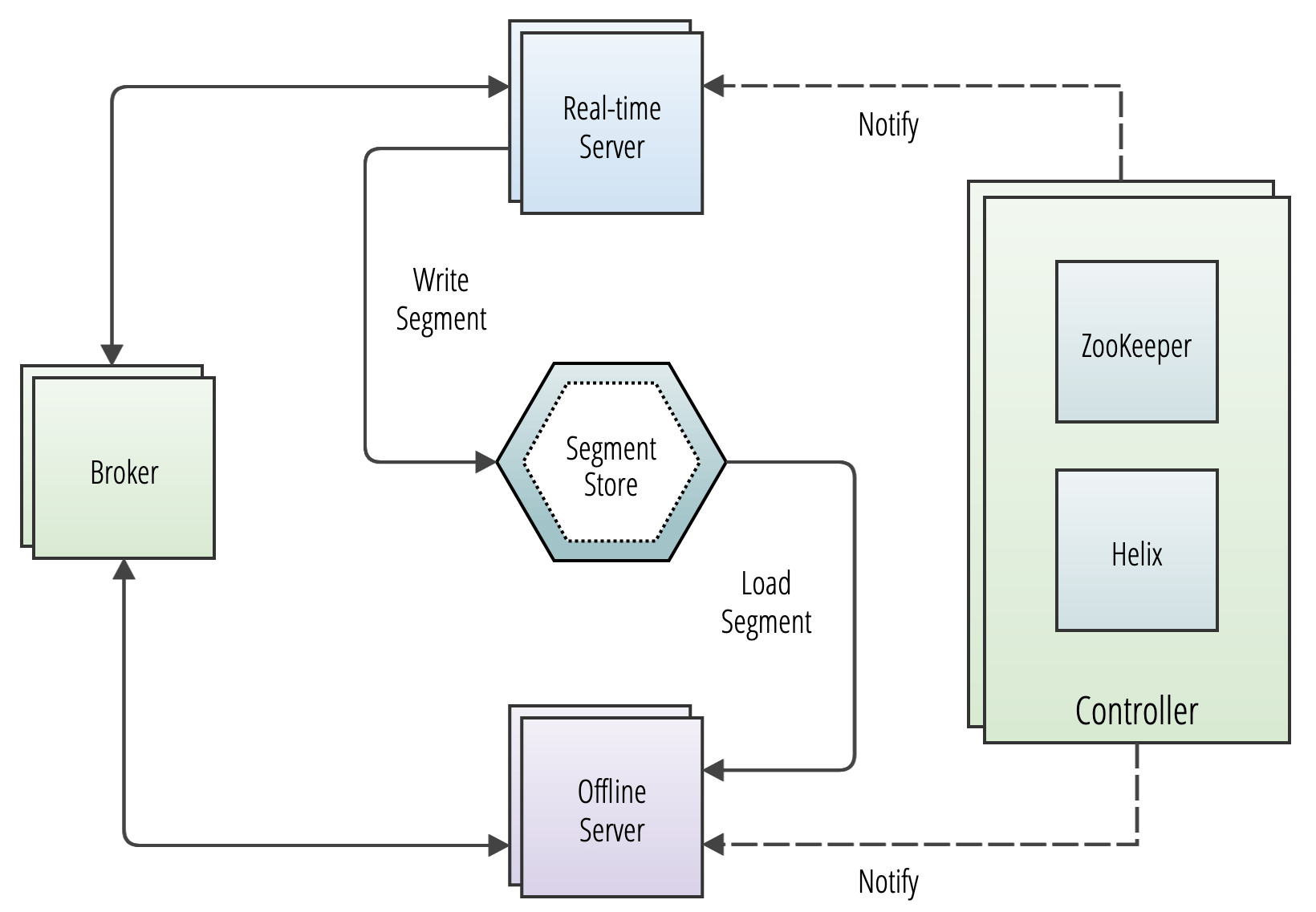

Pinot servers provide the primary storage for segments and perform the computation required to execute queries. A production Pinot cluster contains many servers. In general, the more servers, the more data the cluster can retain in tables, the lower latency the cluster can deliver on queries, and the more concurrent queries the cluster can process.

Servers are typically segregated into real-time and offline workloads, with "real-time" servers hosting only real-time tables, and "offline" servers hosting only offline tables. This is a ubiquitous operational convention, not a difference or an explicit configuration in the server process itself. There are two types of servers:

Offline

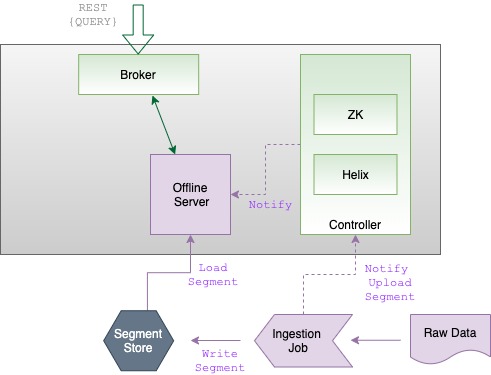

Offline servers are responsible for downloading segments from the segment store, to host and serve queries off. When a new segment is uploaded to the controller, the controller decides the servers (as many as replication) that will host the new segment and notifies them to download the segment from the segment store. On receiving this notification, the servers download the segment file and load the segment onto the server, to server queries off them.

Real-time

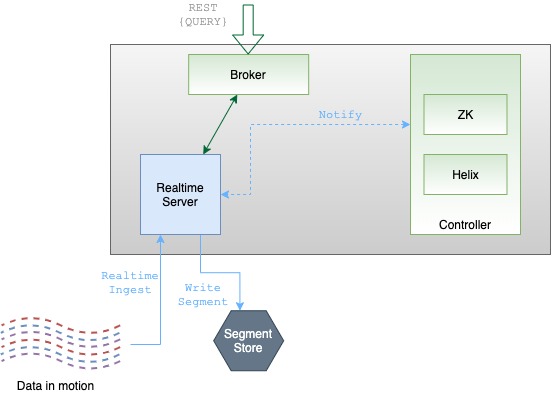

Real-time servers directly ingest from a real-time stream (such as Kafka or EventHubs). Periodically, they make segments of the in-memory ingested data, based on certain thresholds. This segment is then persisted onto the segment store.

Pinot servers are modeled as Helix participants, hosting Pinot tables (referred to as resources in Helix terminology). Segments of a table are modeled as Helix partitions (of a resource). Thus, a Pinot server hosts one or more Helix partitions of one or more helix resources (i.e. one or more segments of one or more tables).

Starting a server

Make sure you've set up Zookeeper. If you're using Docker, make sure to pull the Pinot Docker image. To start a server:

Usage: StartServer
	-serverHost               <String>                      : Host name for controller. (required=false)
	-serverPort               <int>                         : Port number to start the server at. (required=false)
	-serverAdminPort          <int>                         : Port number to serve the server admin API at. (required=false)
	-dataDir                  <string>                      : Path to directory containing data. (required=false)
	-segmentDir               <string>                      : Path to directory containing segments. (required=false)
	-zkAddress                <http>                        : Http address of Zookeeper. (required=false)
	-clusterName              <String>                      : Pinot cluster name. (required=false)
	-configFileName           <Config File Name>            : Broker Starter Config file. (required=false)
	-help                                                   : Print this message. (required=false)

docker run \
    --network=pinot-demo \
    --name pinot-server \
    -d ${PINOT_IMAGE} StartServer \
    -zkAddress pinot-zookeeper:2181

bin/pinot-admin.sh StartServer \
    -zkAddress localhost:2181

The deep store (or deep storage) is the permanent store for segment files.

It is used for backup and restore operations. New server nodes in a cluster will pull down a copy of segment files from the deep store. If the local segment files on a server gets damaged in some way (or accidentally deleted), a new copy will be pulled down from the deep store on server restart.

The deep store stores a compressed version of the segment files and it typically won't include any indexes. These compressed files can be stored on a local file system or on a variety of other file systems. For more details on supported file systems, see File Systems.

Note: Deep store by itself is not sufficient for restore operations. Pinot stores metadata such as table config, schema, segment metadata in Zookeeper. For restore operations, both Deep Store as well as Zookeeper metadata are required.

How do segments get into the deep store?

There are several different ways that segments are persisted in the deep store.

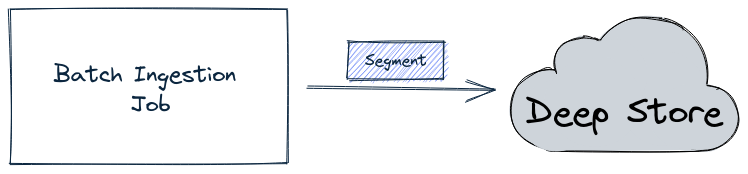

For offline tables, the batch ingestion job writes the segment directly into the deep store, as shown in the diagram below:

The ingestion job then sends a notification about the new segment to the controller, which in turn notifies the appropriate server to pull down that segment.

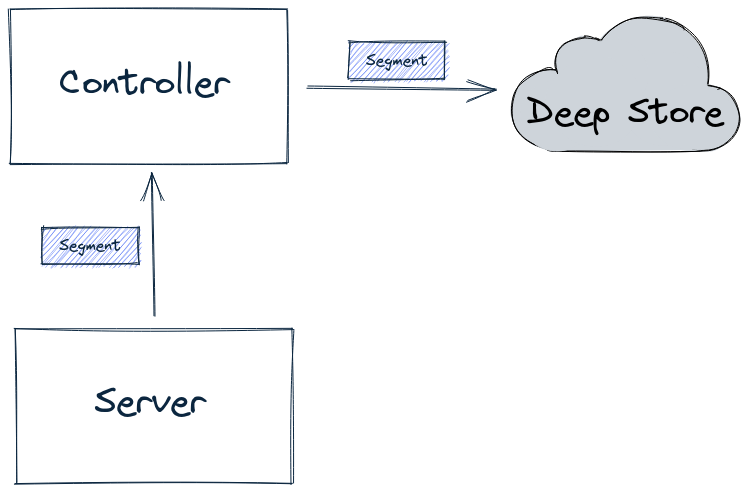

For real-time tables, by default, a segment is first built-in memory by the server. It is then uploaded to the lead controller (as part of the Segment Completion Protocol sequence), which writes the segment into the deep store, as shown in the diagram below:

Having all segments go through the controller can become a system bottleneck under heavy load, in which case you can use the peer download policy, as described in Decoupling Controller from the Data Path.

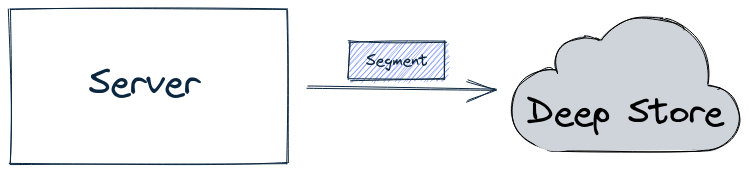

When using this configuration, the server will directly write a completed segment to the deep store, as shown in the diagram below:

Configuring the deep store

For hands-on examples of how to configure the deep store, see the following tutorials:

• Use OSS as Deep Storage for Pinot

• Use S3 as Deep Storage for Pinot

Find debug information in Pinot

Pinot offers various ways to assist with troubleshooting and debugging problems that might happen.

Start with the debug API which will surface many of the commonly occurring problems. The debug api provides information such as tableSize, ingestion status, and error messages related to state transition in server.

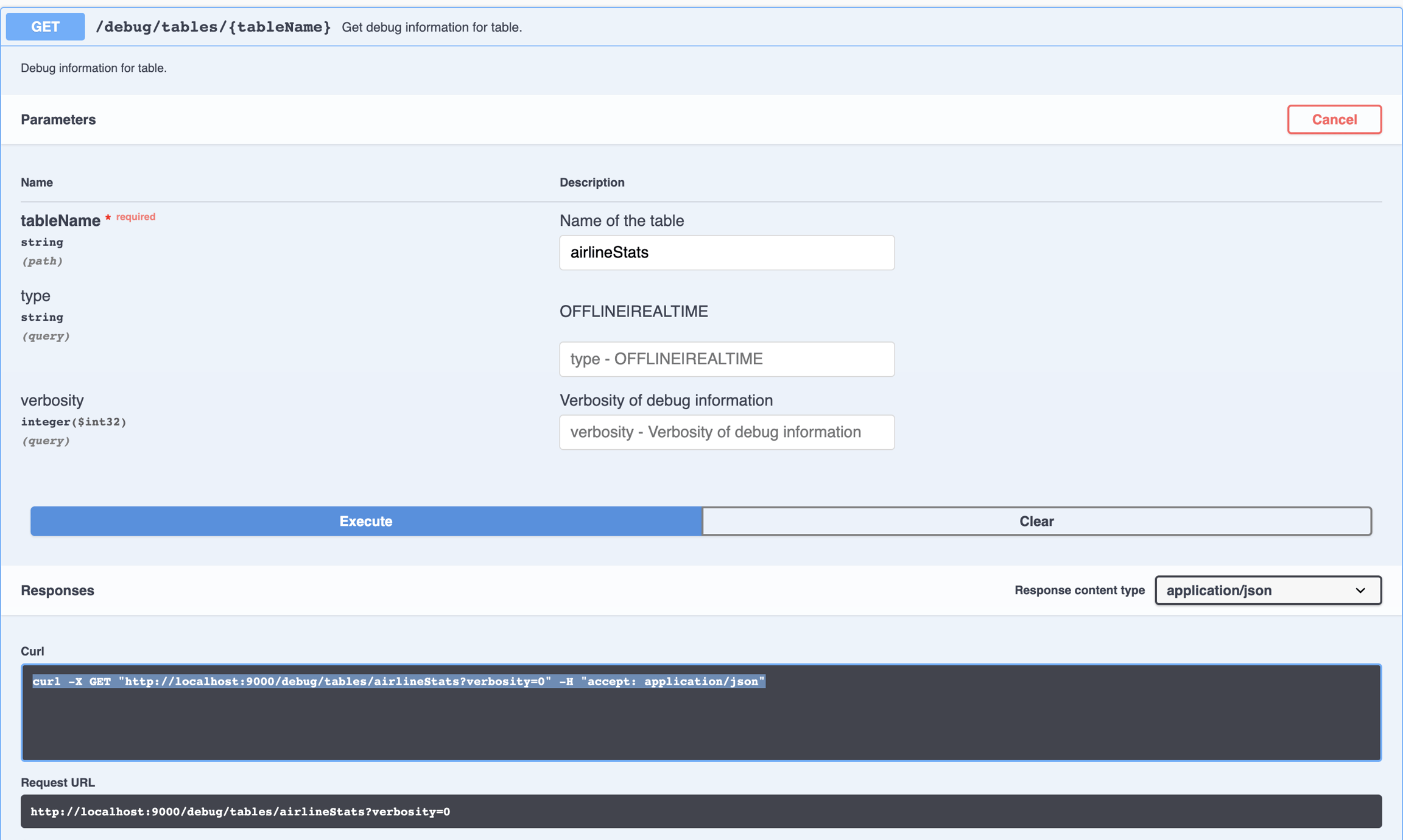

The table debug API can be invoked via the Swagger UI, as in the following image:

It can also be invoked directly by accessing the URL as follows. The api requires the tableName, and can optionally take tableType (offline|realtime) and verbosity level.

curl -X GET "http://localhost:9000/debug/tables/airlineStats?verbosity=0" -H "accept: application/json"

Pinot also provides a variety of operational metrics that can be used for creating dashboards, alerting and monitoring.

Finally, all pinot components log debug information related to error conditions.

Debug a slow query or a query which keeps timing out

Use the following steps:

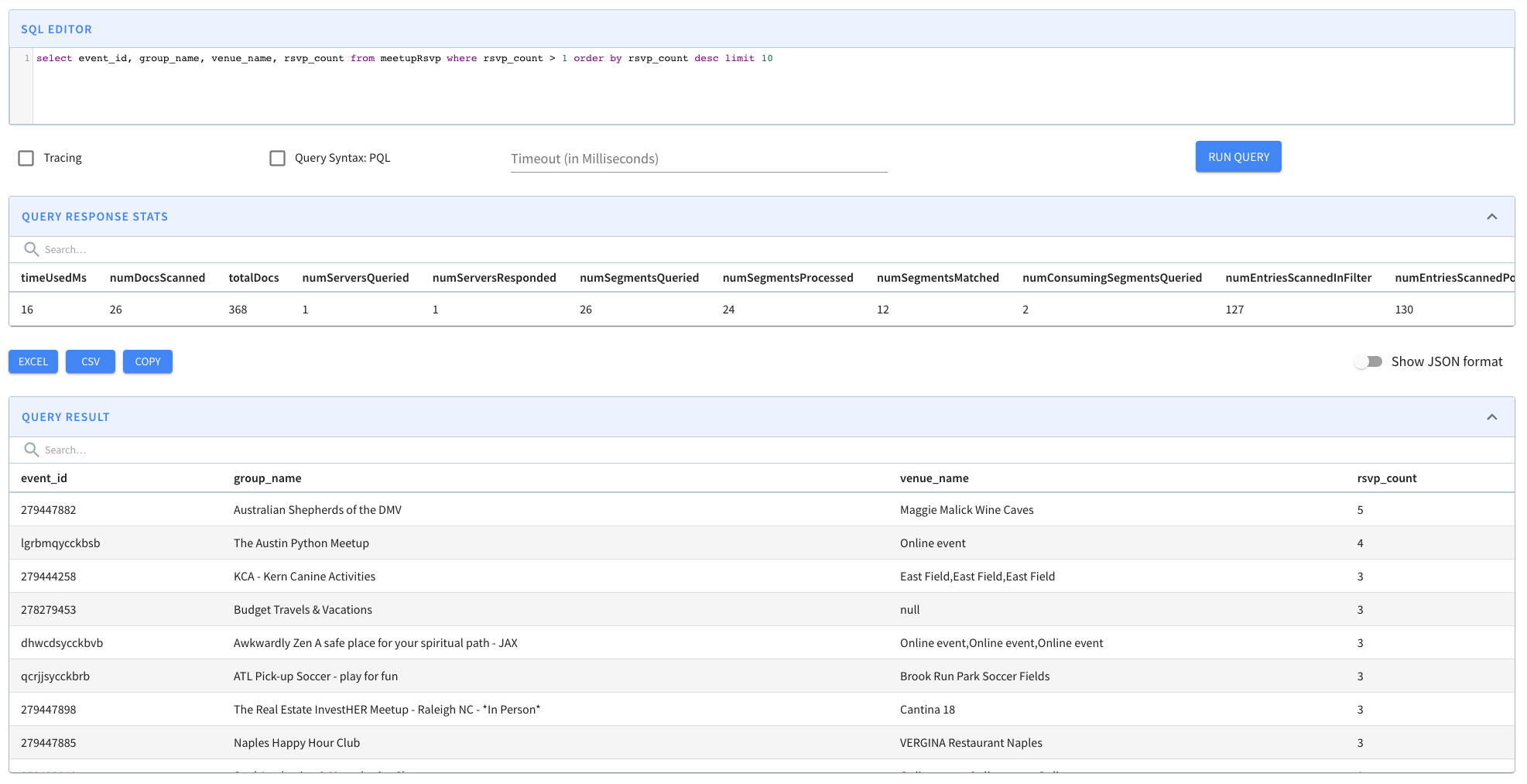

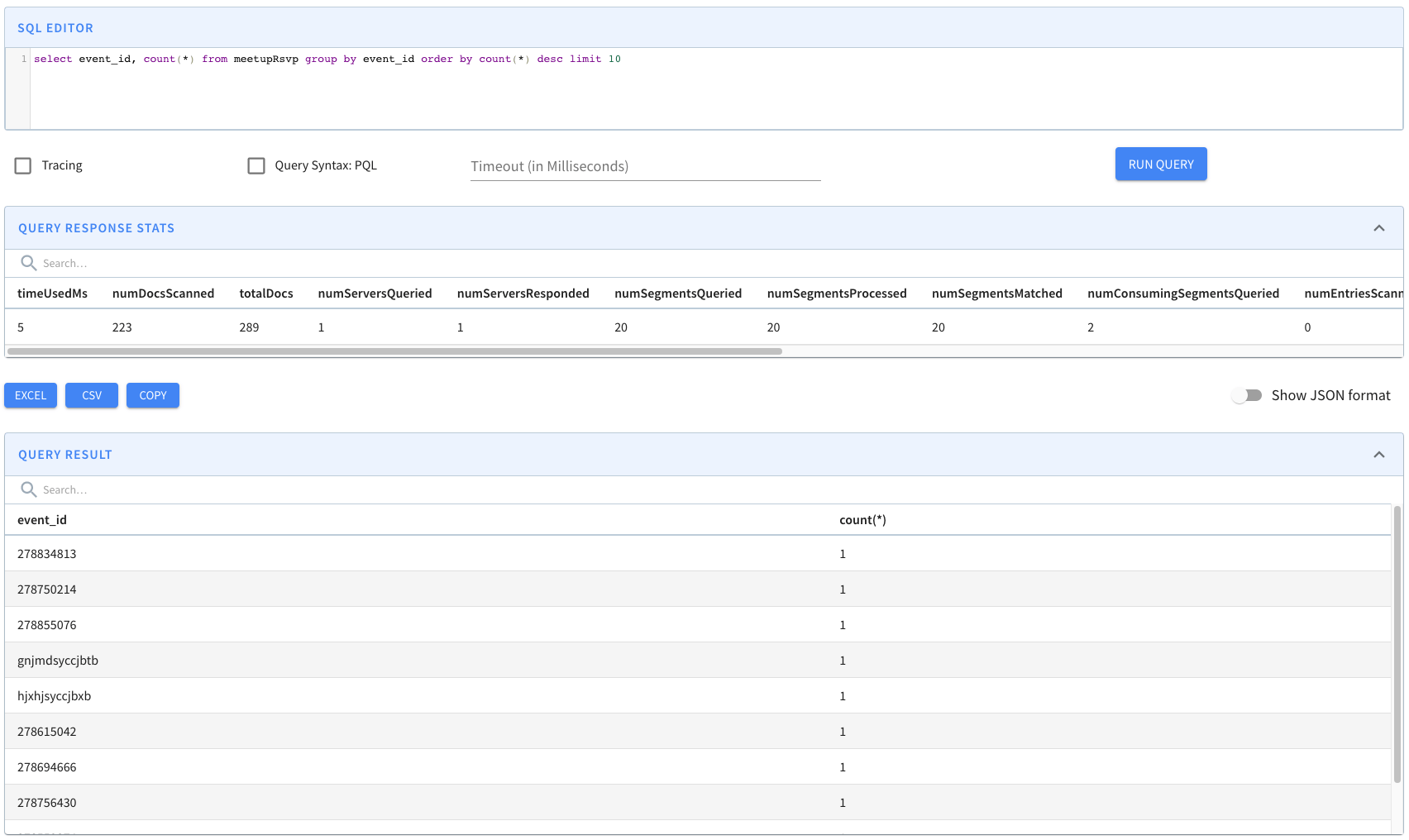

1. If the query executes, look at the query result. Specifically look at numEntriesScannedInFilter and numDocsScanned.

   1. If numEntriesScannedInFilter is very high, consider adding indexes for the corresponding columns being used in the filter predicates. You should also think about partitioning the incoming data based on the dimension most heavily used in your filter queries.

   2. If numDocsScanned is very high, that means the selectivity for the query is low and lots of documents need to be processed after the filtering. Consider refining the filter to increase the selectivity of the query.

2. If the query is not executing, you can extend the query timeout by appending a timeoutMs parameter to the query, for example, select * from mytable limit 10 option(timeoutMs=60000). Then repeat step 1, as needed.

3. Look at garbage collection (GC) stats for the corresponding Pinot servers. If a particular server seems to be running full GC all the time, you can do a couple of things such as

   1. Increase Java Virtual Machine (JVM) heap (java -Xmx<size>).

   2. Consider using off-heap memory for segments.

   3. Decrease the total number of segments per server (by partitioning the data in a more efficient way).

Apache Pinot™ uses a variety of terms which can refer to either abstractions that model the storage of data or infrastructure components that drive the functionality of the system, including:

• to store data

• to partition data

• to isolate data

• to manage data

Pinot has a distributed systems architecture that scales horizontally. Pinot expects the size of a table to grow infinitely over time. To achieve this, all data needs to be distributed across multiple nodes. Pinot achieves this by breaking data into smaller chunks known as (similar to shards/partitions in HA relational databases). Segments can also be seen as time-based partitions.

Table

Similar to traditional databases, Pinot has the concept of a —a logical abstraction to refer to a collection of related data. As is the case with relational database management systems (RDBMS), a table is a construct that consists of columns and rows (documents) that are queried using SQL. A table is associated with a , which defines the columns in a table as well as their data types.

As opposed to RDBMS schemas, multiple tables can be created in Pinot (real-time or batch) that inherit a single schema definition. Tables are independently configured for concerns such as indexing strategies, partitioning, tenants, data sources, and replication.

Pinot stores data in . A Pinot table is conceptually identical to a relational database table with rows and columns. Columns have the same name and data type, known as the table's .

Pinot schemas are defined in a JSON file. Because that schema definition is in its own file, multiple tables can share a single schema. Each table can have a unique name, indexing strategy, partitioning, data sources, and other metadata.

Pinot table types include:

• real-time: Ingests data from a streaming source like Apache Kafka®

• offline: Loads data from a batch source

• hybrid: Loads data from both a batch source and a streaming source

Segment

Pinot tables are stored in one or more independent shards called . A small table may be contained by a single segment, but Pinot lets tables grow to an unlimited number of segments. There are different processes for creating segments (see ). Segments have time-based partitions of table data, and are stored on Pinot that scale horizontally as needed for both storage and computation.

Tenant

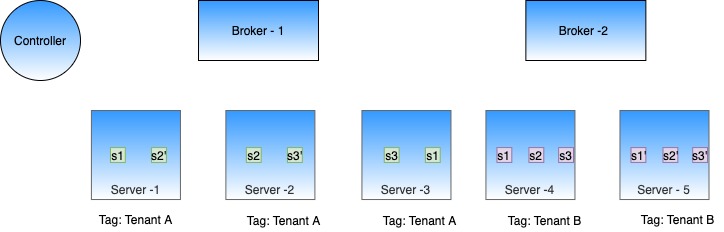

To support multi-tenancy, Pinot has first class support for tenants. A table is associated with a . This allows all tables belonging to a particular logical namespace to be grouped under a single tenant name and isolated from other tenants. This isolation between tenants provides different namespaces for applications and teams to prevent sharing tables or schemas. Development teams building applications do not have to operate an independent deployment of Pinot. An organization can operate a single cluster and scale it out as new tenants increase the overall volume of queries. Developers can manage their own schemas and tables without being impacted by any other tenant on a cluster.

Every table is associated with a , or a logical namespace that restricts where the cluster processes queries on the table. A Pinot tenant takes the form of a text tag in the logical tenant namespace. Physical cluster hardware resources (i.e., and ) are also associated with a tenant tag in the common tenant namespace. Tables of a particular tenant tag will only be scheduled for storage and query processing on hardware resources that belong to the same tenant tag. This lets Pinot cluster operators assign specified workloads to certain hardware resources, preventing data from separate workloads from being stored or processed on the same physical hardware.

By default, all tables, brokers, and servers belong to a tenant called DefaultTenant, but you can configure multiple tenants in a Pinot cluster.

Cluster

A Pinot is a collection of the software processes and hardware resources required to ingest, store, and process data. For detail about Pinot cluster components, see .

Physical architecture

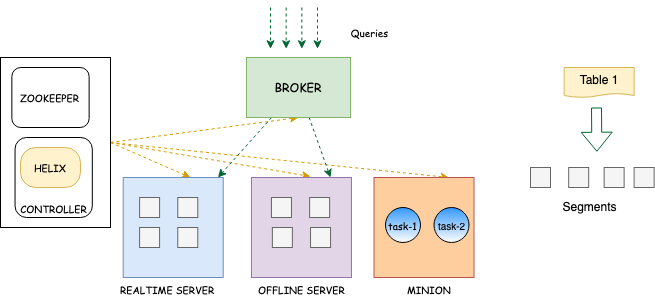

A Pinot cluster consists of the following processes, which are typically deployed on separate hardware resources in production. In development, they can fit comfortably into Docker containers on a typical laptop.

• Controller: Maintains cluster metadata and manages cluster resources.

• Zookeeper: Manages the Pinot cluster on behalf of the controller. Provides fault-tolerant, persistent storage of metadata, including table configurations, schemas, segment metadata, and cluster state.

• Broker: Accepts queries from client processes and forwards them to servers for processing.

• Server: Provides storage for segment files and compute for query processing.

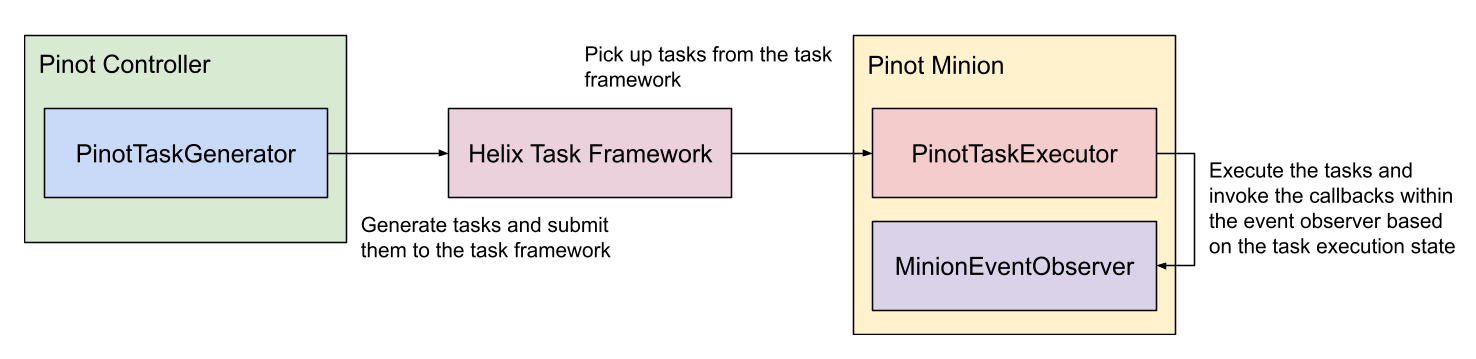

• (Optional) Minion: Computes background tasks other than query processing, minimizing impact on query latency. Optimizes segments, and builds additional indexes to ensure performance (even if data is deleted).

The simplest possible Pinot cluster consists of four components: a server, a broker, a controller, and a Zookeeper node. In production environments, these components typically run on separate server instances, and scale out as needed for data volume, load, availability, and latency. Pinot clusters in production range from fewer than ten total instances to more than 1,000.

Pinot uses as a distributed metadata store and and for cluster management.

Helix is a cluster management solution created by the authors of Pinot. Helix maintains a persistent, fault-tolerant map of the intended state of the Pinot cluster. It constantly monitors the cluster to ensure that the right hardware resources are allocated to implement the present configuration. When the configuration changes, Helix schedules or decommissions hardware resources to reflect the new configuration. When elements of the cluster change state catastrophically, Helix schedules hardware resources to keep the actual cluster consistent with the ideal represented in the metadata. From a physical perspective, Helix takes the form of a controller process plus agents running on servers and brokers.

Controller

A is the core orchestrator that drives the consistency and routing in a Pinot cluster. Controllers are horizontally scaled as an independent component (container) and has visibility of the state of all other components in a cluster. The controller reacts and responds to state changes in the system and schedules the allocation of resources for tables, segments, or nodes. As mentioned earlier, Helix is embedded within the controller as an agent that is a participant responsible for observing and driving state changes that are subscribed to by other components.

The Pinot schedules and re-schedules resources in a Pinot cluster when metadata changes or a node fails. As an Apache Helix Controller, it schedules the resources that comprise the cluster and orchestrates connections between certain external processes and cluster components (e.g., ingest of and ). It can be deployed as a single process on its own server or as a group of redundant servers in an active/passive configuration.

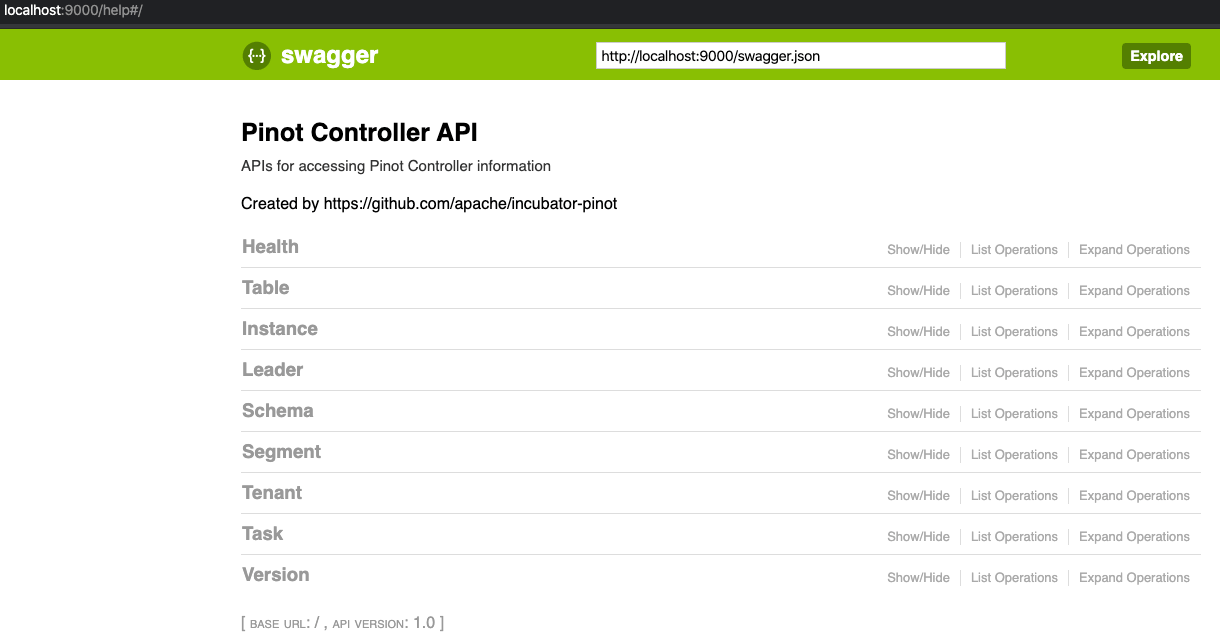

The controller exposes a for cluster-wide administrative operations as well as a web-based query console to execute interactive SQL queries and perform simple administrative tasks.

Server

host segments (shards) that are scheduled and allocated across multiple nodes and routed on an assignment to a tenant (there is a single tenant by default). Servers are independent containers that scale horizontally and are notified by Helix through state changes driven by the controller. A server can either be a real-time server or an offline server.

A real-time and offline server have very different resource usage requirements, where real-time servers are continually consuming new messages from external systems (such as Kafka topics) that are ingested and allocated on segments of a tenant. Because of this, resource isolation can be used to prioritize high-throughput real-time data streams that are ingested and then made available for query through a broker.

Broker

Pinot take query requests from client processes, scatter them to applicable servers, gather the results, and return them to the client. The controller shares cluster metadata with the brokers that allows the brokers to create a plan for executing the query involving a minimal subset of servers with the source data and, when required, other servers to shuffle and consolidate results.

A production Pinot cluster contains many brokers. In general, the more brokers, the more concurrent queries a cluster can process, and the lower latency it can deliver on queries.

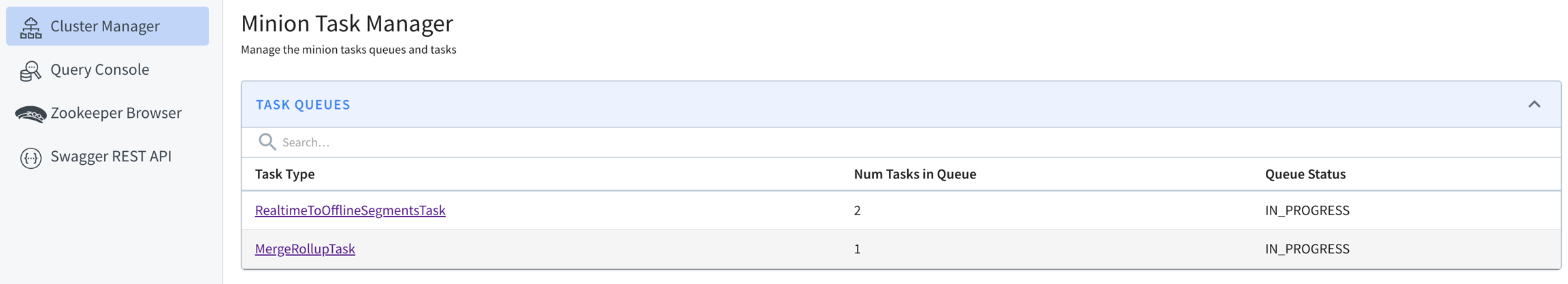

Pinot minion

Pinot minion is an optional component that can be used to run background tasks such as "purge" for GDPR (General Data Protection Regulation). As Pinot is an immutable aggregate store, records containing sensitive private data need to be purged on a request-by-request basis. Minion provides a solution for this purpose that complies with GDPR while optimizing Pinot segments and building additional indices that guarantees performance in the presence of the possibility of data deletion. One can also write a custom task that runs on a periodic basis. While it's possible to perform these tasks on the Pinot servers directly, having a separate process (Minion) lessens the overall degradation of query latency as segments are impacted by mutable writes.

A Pinot is an optional cluster component that executes background tasks on table data apart from the query processes performed by brokers and servers. Minions run on independent hardware resources, and are responsible for executing minion tasks as directed by the controller. Examples of minon tasks include converting batch data from a standard format like Avro or JSON into segment files to be loaded into an offline table, and rewriting existing segment files to purge records as required by data privacy laws like GDPR. Minion tasks can run once or be scheduled to run periodically.

Minions isolate the computational burden of out-of-band data processing from the servers. Although a Pinot cluster can function with or without minions, they are typically present to support routine tasks like batch data ingest.

\

There are multiple options for importing data into Apache Pinot™. The pages in this section provide step-by-step instructions for importing records into Pinot, supported by our . The intent is to get you up and running with imported data as quickly as possible.

Pinot supports multiple file input formats without needing to change anything other than the file name. Each example imports a ready-made dataset so you can see how things work without needing to find or create your own dataset.

Pinot Batch Ingestion

These guides show you how to import data from popular big data platforms.

Pinot Stream Ingestion

This guide shows you how to import data using stream ingestion from Apache Kafka topics.

This guide shows you how to import data using stream ingestion with upsert.

This guide shows you how to import data using stream ingestion with deduplication.

This guide shows you how to import data using stream ingestion with CLP.

Pinot file systems

By default, Pinot does not come with a storage layer, so all the data sent won't be stored in case of system crash. In order to persistently store the generated segments, you will need to change controller and server configs to add a deep storage. See for all the info and related configs.

These guides show you how to import data and persist it in these file systems.

Pinot input formats

This guide shows you how to import data from various Pinot-supported input formats.

This guide shows you how to handle the complex type in the ingested data, such as map and array.

This guide shows additional examples on how to work with complex types.

This guide shows you how to handle records with dynamic schemas, like JSON log events.

Reloading and uploading existing Pinot segments

This guide shows you how to reload Pinot segments from your deep store.

This guide shows you how to upload Pinot segments from an old, closed Pinot instance.

FileSystem is an abstraction provided by Pinot to access data stored in distributed file systems (DFS).

Pinot uses distributed file systems for the following purposes:

• Batch ingestion job: To read the input data (CSV, Avro, Thrift, etc.) and to write generated segments to DFS.

• Controller: When a segment is uploaded to the controller, the controller saves it in the configured DFS.

• Server:- When a server(s) is notified of a new segment, the server copies the segment from remote DFS to their local node using the DFS abstraction.

Supported file systems

Pinot lets you choose a distributed file system provider. The following file systems are supported by Pinot:

Enabling a file system

To use a distributed file system, you need to enable plugins. To do that, specify the plugin directory and include the required plugins:

You can change the file system in the controller and server configuration. In the following configuration example, the URI is s3://bucket/path/to/file and scheme refers to the file system URI prefix s3.

You can also change the file system during ingestion. In the ingestion job spec, specify the file system with the following configuration:

Native text index

Pinot supports text indexing and search by building Lucene indices as sidecars to the main Pinot segments. While this is a great technique, it essentially limits the avenues of optimizations that can be done for Pinot specific use cases of text search.

How is Pinot different?

Pinot, like any other database/OLAP engine, does not need to conform to the entire full text search domain-specific language (DSL) that is traditionally used by full-text search (FTS) engines like ElasticSearch and Solr. In traditional SQL text search use cases, the majority of text searches belong to one of three patterns: prefix wildcard queries (like pino*), postfix or suffix wildcard queries (like *inot), and term queries (like pinot).

Native text indices in Pinot

In Pinot, native text indices are built from the ground up. They use a custom text-indexing engine, coupled with Pinot's powerful inverted indices, to provide a fast text search experience.

The benefits are that native text indices are 80-120% faster than Lucene-based indices for the text search use cases mentioned above. They are also 40% smaller on disk.

Native text indices support real-time text search. For REALTIME tables, native text indices allow data to be indexed in memory in the text index, while concurrently supporting text searches on the same index.

Historically, most text indices depend on the in-memory text index being written to first and then sealed, before searches are possible. This limits the freshness of the search, being near-real-time at best.

Native text indices come with a custom in-memory text index, which allows for real-time indexing and search.

Searching Native Text Indices

The function, TEXT\_CONTAINS, supports text search on native text indices.

Examples:

TEXT\_CONTAINS can be combined using standard boolean operators

Note: TEXT\_CONTAINS supports regex and term queries and will work only on native indices. TEXT\_CONTAINS supports standard regex patterns (as used by LIKE in SQL Standard), so there might be some syntatical differences from Lucene queries.

Creating Native Text Indices

Native text indices are created using field configurations. To indicate that an index type is native, specify it using properties in the field configuration:

When Pinot writes data to segments in a table, it saves those segments to a deep store location specified in your , such as a storage drive or Amazon S3 bucket.

Use the Pinot Controller API to reload segments

To reload all segments from a table, use:

To reload a specific segment from a table, use:

A successful API call returns the following response:

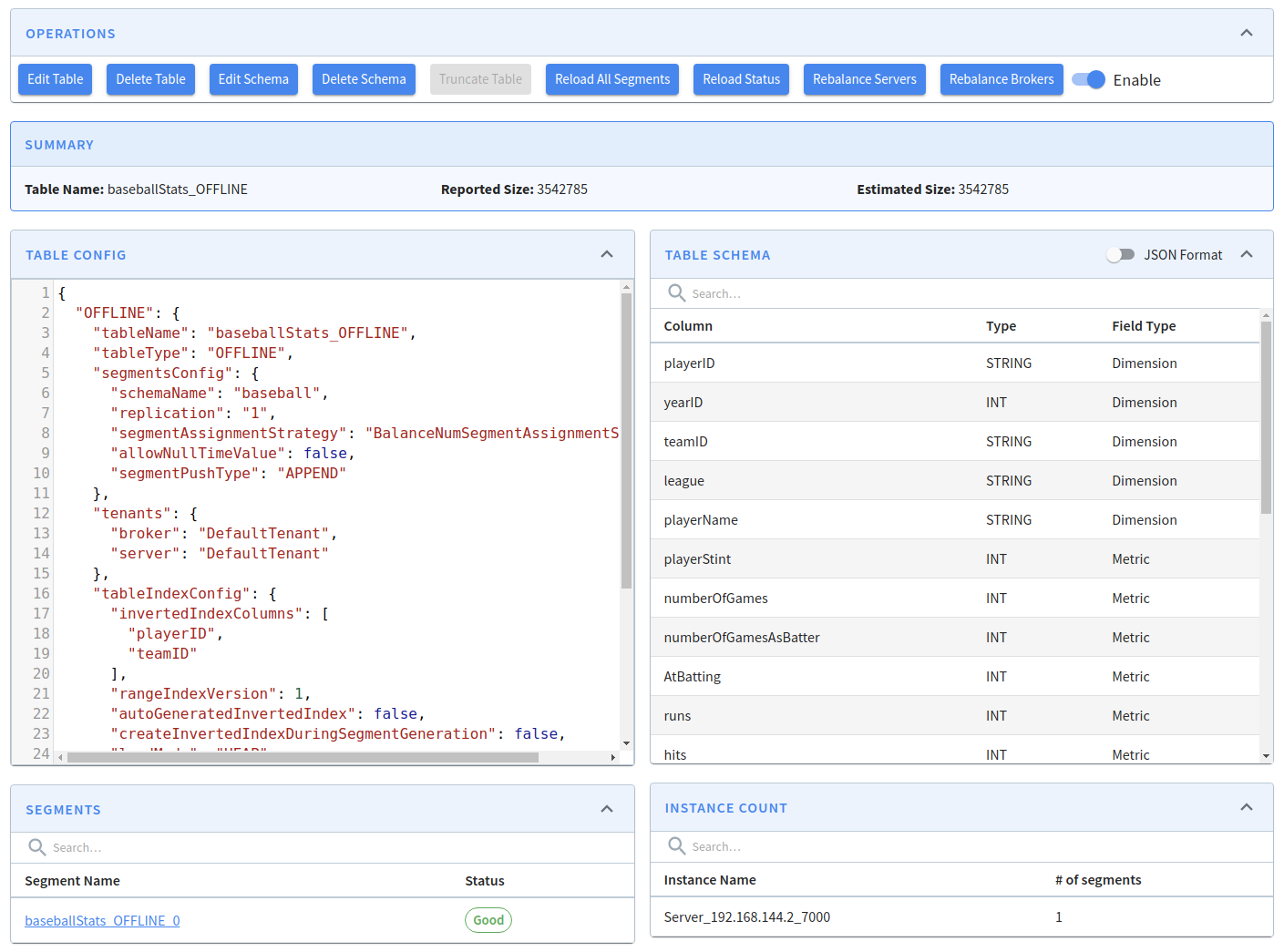

Use the Pinot Admin Console to reload segments

To use the Pinot Admin Console, do the following:

1. From the left navigation menu, select Cluster Manager.

2. Under TENANTS, select the Tenant Name.

3. From the list of tables in the tenant, select the Table Name.

4. Do one of the following:

   • To reload all segments, under OPERATIONS, click Reload All Segments.

   • To reload a specific segment, under SEGMENTS, select the Segment Name, and then in the new OPERATIONS section, select Reload Segment.

In this quickstart guide, you will set up a Kubernetes Cluster on Google Kubernetes Engine(GKE)

1. Tooling Installation

1.1 Install Kubectl

Follow this link (https://kubernetes.io/docs/tasks/tools/install-kubectl) to install kubectl.

For Mac users

brew install kubernetes-cli

Check kubectl version after installation.

kubectl version

1.2 Install Helm

Follow this link (https://helm.sh/docs/using_helm/#installing-helm) to install helm.

For Mac users

brew install kubernetes-helm

Check helm version after installation.

helm version

1.3 Install Google Cloud SDK

To install Google Cloud SDK, see Install the gcloud CLI

1.3.1 For Mac users

• Install Google Cloud SDK

curl https://sdk.cloud.google.com | bash

Restart your shell

exec -l $SHELL

2. (Optional) Initialize Google Cloud Environment

gcloud init

3. (Optional) Create a Kubernetes cluster(GKE) in Google Cloud

This script will create a 3 node cluster named pinot-quickstart in us-west1-b with n1-standard-2 machines for demo purposes.

Modify the parameters in the following example command with your gcloud details:

GCLOUD_PROJECT=[your gcloud project name]
GCLOUD_ZONE=us-west1-b
GCLOUD_CLUSTER=pinot-quickstart
GCLOUD_MACHINE_TYPE=n1-standard-2
GCLOUD_NUM_NODES=3
gcloud container clusters create ${GCLOUD_CLUSTER} \
  --num-nodes=${GCLOUD_NUM_NODES} \
  --machine-type=${GCLOUD_MACHINE_TYPE} \
  --zone=${GCLOUD_ZONE} \
  --project=${GCLOUD_PROJECT}

Use the following command do monitor cluster status:

gcloud compute instances list

Once the cluster is in RUNNING status, it's ready to be used.

4. Connect to an existing cluster

Run the following command to get the credential for the cluster pinot-quickstart that you just created:

GCLOUD_PROJECT=[your gcloud project name]
GCLOUD_ZONE=us-west1-b
GCLOUD_CLUSTER=pinot-quickstart
gcloud container clusters get-credentials ${GCLOUD_CLUSTER} --zone ${GCLOUD_ZONE} --project ${GCLOUD_PROJECT}

To verify the connection, run the following:

kubectl get nodes

5. Pinot quickstart

Follow this Kubernetes quickstart to deploy your Pinot demo.

6. Delete a Kubernetes Cluster

GCLOUD_ZONE=us-west1-b
gcloud container clusters delete pinot-quickstart --zone=${GCLOUD_ZONE}

Learn how to apply indexes to a Pinot table. This guide assumes that you have followed the Ingest data from Apache Kafka guide.

Pinot supports a series of different indexes that can be used to optimize query performance. In this guide, we'll learn how to add indexes to the events table that we set up in the Ingest data from Apache Kafka guide.

Why do we need indexes?

If no indexes are applied to the columns in a Pinot segment, the query engine needs to scan through every document, checking whether that document meets the filter criteria provided in a query. This can be a slow process if there are a lot of documents to scan.

When indexes are applied, the query engine can more quickly work out which documents satisfy the filter criteria, reducing the time it takes to execute the query.

What indexes does Pinot support?

By default, Pinot creates a forward index for every column. The forward index generally stores documents in insertion order.

However, before flushing the segment, Pinot does a single pass over every column to see whether the data is sorted. If data is sorted, Pinot creates a sorted (forward) index for that column instead of the forward index.

For real-time tables you can also explicitly tell Pinot that one of the columns should be sorted. For more details, see the [Sorted Index Documentation](https://docs.pinot.apache.org/basics/indexing/forward-index#real-time-tables).

For filtering documents within a segment, Pinot supports the following indexing techniques:

• Inverted index: Used for exact lookups.

• Range index - Used for range queries.

• Text index - Used for phrase, term, boolean, prefix, or regex queries.

• Geospatial index - Based on H3, a hexagon-based hierarchical gridding. Used for finding points that exist within a certain distance from another point.

• JSON index - Used for querying columns in JSON documents.

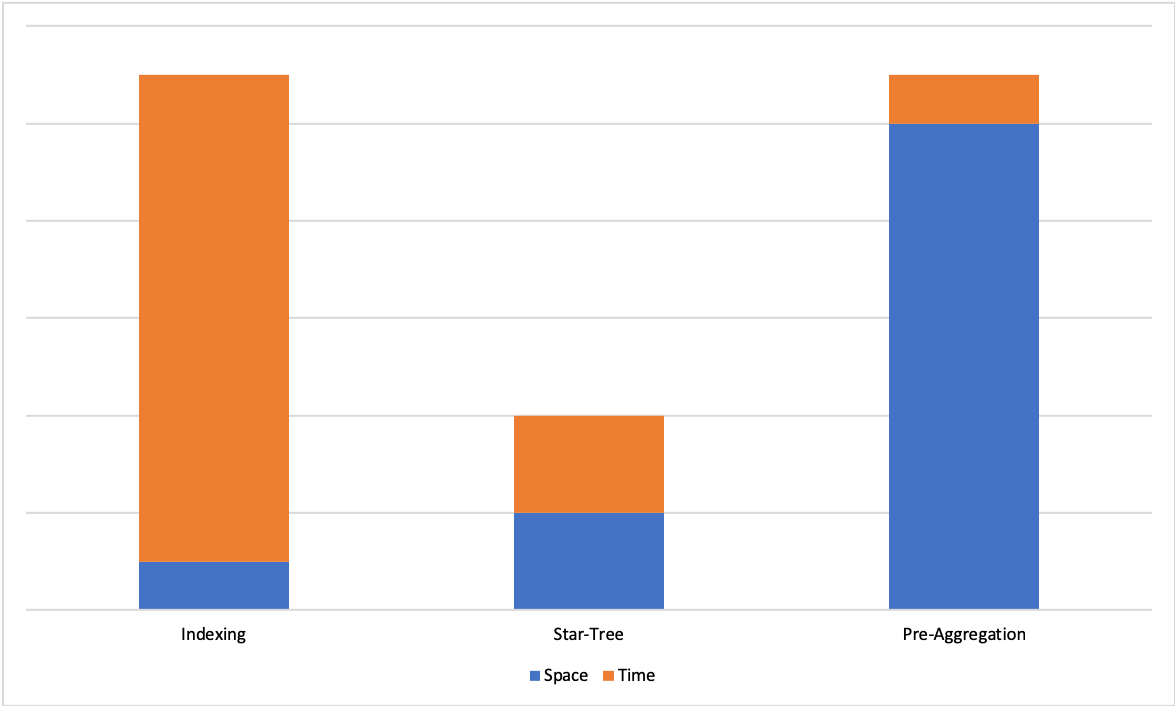

• Star-Tree index - Pre-aggregates results across multiple columns.

View events table

Let's see how we can apply these indexing techniques to our data. To recap, the events table has the following fields:

We might want to write queries that filter on the ts and uuid columns, so these are the columns on which we would want to configure indexes.

Since the data we're ingesting into the Kafka topic is all implicitly ordered by timestamp, this means that the ts column already has a sorted index. This means that any queries that filter on this column are already optimised.

So that leaves us with the uuid column.

Add an inverted index

We're going to add an inverted index to the uuid column so that queries that filter on that column will return quicker. We need to add the following line:

"invertedIndexColumns": ["uuid"]

To the tableIndexConfig section.

Copy the following to the clipboard:

/tmp/pinot/table-config-stream.json

{
  "tableName": "events",
  "tableType": "REALTIME",
  "segmentsConfig": {
    "timeColumnName": "ts",
    "schemaName": "events",
    "replicasPerPartition": "1"
  },
  "tenants": {},
  "tableIndexConfig": {
    "invertedIndexColumns": ["uuid"],
    "loadMode": "MMAP",
    "streamConfigs": {
      "streamType": "kafka",
      "stream.kafka.consumer.type": "lowlevel",
      "stream.kafka.topic.name": "events",
      "stream.kafka.decoder.class.name": "org.apache.pinot.plugin.stream.kafka.KafkaJSONMessageDecoder",
      "stream.kafka.consumer.factory.class.name": "org.apache.pinot.plugin.stream.kafka20.KafkaConsumerFactory",
      "stream.kafka.broker.list": "kafka:9092",
      "realtime.segment.flush.threshold.rows": "0",
      "realtime.segment.flush.threshold.time": "24h",
      "realtime.segment.flush.threshold.segment.size": "50M",
      "stream.kafka.consumer.prop.auto.offset.reset": "smallest"
    }
  },
  "metadata": {
    "customConfigs": {}
  }
}

Navigate to localhost:9000/#/tenants/table/events_REALTIME, click on Edit Table, paste the next table config, and then click Save.

Once you've done that, you'll need to click Reload All Segments and then Yes to apply the indexing change to all segments.

Check the index has been applied

We can check that the index has been applied to all our segments by querying Pinot's REST API. You can find Swagger documentation at localhost:9000/help.

The following query will return the indexes defined on the uuid column:

curl -X GET "http://localhost:9000/segments/events/metadata?columns=uuid" \
  -H "accept: application/json" 2>/dev/null |
  jq '.[] | [.segmentName, .indexes]'

Output

We're using the jq command line JSON processor to extract the fields that we're interested in.

[
  "events__0__1__20220214T1106Z",
  {
    "uuid": {
      "bloom-filter": "NO",
      "dictionary": "YES",
      "forward-index": "YES",
      "inverted-index": "YES",
      "null-value-vector-reader": "NO",
      "range-index": "NO",
      "json-index": "NO"
    }
  }
]
[
  "events__0__0__20220214T1053Z",
  {
    "uuid": {
      "bloom-filter": "NO",
      "dictionary": "YES",
      "forward-index": "YES",
      "inverted-index": "YES",
      "null-value-vector-reader": "NO",
      "range-index": "NO",
      "json-index": "NO"
    }
  }
]

We can see from looking at the inverted-index property that the index has been applied.

Querying

You can now run some queries that filter on the uuid column, as shown below:

SELECT *
FROM events
WHERE uuid = 'f4a4f'
LIMIT 10

You'll need to change the actual uuid value to a value that exists in your database, because the UUIDs are generated randomly by our script.

Dimension tables are a special kind of offline tables from which data can be looked up via the lookup UDF, providing join-like functionality.

Dimension tables are replicated on all the hosts for a given tenant to allow faster lookups. When a table is marked as a dimension table, it will be replicated on all the hosts, which means that these tables must be small in size.

A dimension table cannot be part of a hybrid table.

Configure dimension tables using following properties in the table configuration:

• isDimTable: Set to true.

• ingestionConfig.batchIngestionConfig.segmentIngestionType: Set to REFRESH.

• dimensionTableConfig.disablePreload: By default, dimension tables are preloaded to allow for fast lookups. Set to true to trade off speed for memory by storing only the segment reference and docID. Otherwise, the whole row is stored in the Dimension table hash map.

• controller.dimTable.maxSize: Determines the maximum size quota for a dimension table in a cluster. Table creation will fail if the storage quota exceeds this maximum size.

• dimensionFieldSpecs: To look up dimension values, dimension tables need a primary key. For details, see dimensionFieldSpecs.

Example dimension table configuration

{
  "OFFLINE": {
    "tableName": "dimBaseballTeams_OFFLINE",
    "tableType": "OFFLINE",
    "segmentsConfig": {
    },
    "ingestionConfig": {
      "batchIngestionConfig": {
        "segmentIngestionType": "REFRESH"
      }
    }
    "quota": {
      "storage": "200M"
    },
    "isDimTable": true,
    "dimensionTableConfig": {
      "disablePreload": true
    }
  }
}

Example table schema configuration

{
  "dimensionFieldSpecs": [
    {
      "dataType": "STRING",
      "name": "teamID"
    },
    {
      "dataType": "STRING",
      "name": "teamName"
    }
  ],
  "schemaName": "dimBaseballTeams",
  "primaryKeyColumns": ["teamID"]
}

Note

Before upgrading from one version to another one, read the release notes. While the Pinot committers strive to keep releases backward-compatible and introduce new features in a compatible manner, your environment may have a unique combination of configurations/data/schema that may have been somehow overlooked. Before you roll out a new release of Pinot on your cluster, it is best that you run the compatibility test suite that Pinot provides. The tests can be easily customized to suit the configurations and tables in your pinot cluster(s). As a good practice, you should build your own test suite, mirroring the table configurations, schema, sample data, and queries that are used in your cluster.

1.3.0 (February 2025)

1.2.0 (August 2024)

1.1.0 (March 2024)

1.0.0 (September 2023)

0.12.1 (March 2023)

0.12.0 (December 2022)

0.11.0 (September 2022)

0.10.0 (March 2022)

0.9.3 (December 2021)

0.9.2 (December 2021)

0.9.1 (December 2021)

0.9.0 (November 2021)

0.8.0 (August 2021)

0.7.1 (April 2021)

0.6.0 (November 2020)

0.5.0 (September 2020)

0.4.0 (June 2020)

0.3.0 (March 2020)

0.2.0 (November 2019)

0.1.0 (March 2019, First release)

Every table is associated with a tenant, or a logical namespace that restricts where the cluster processes queries on the table. A Pinot tenant takes the form of a text tag in the logical tenant namespace. Physical cluster hardware resources (i.e., and ) are also associated with a tenant tag in the common tenant namespace. Tables of a particular tenant tag will only be scheduled for storage and query processing on hardware resources that belong to the same tenant tag. This lets Pinot cluster operators assign specified workloads to certain hardware resources, preventing data in separate workloads from being stored or processed on the same physical hardware.

By default, all tables, brokers, and servers belong to a tenant called DefaultTenant, but you can configure multiple tenants in a Pinot cluster.

To support multi-tenancy, Pinot has first-class support for tenants. Every table is associated with a server tenant and a broker tenant, which controls the nodes used by the table as servers and brokers. Multi-tenancy lets Pinot group all tables belonging to a particular use case under a single tenant name.

The concept of tenants is very important when the multiple use cases are using Pinot and there is a need to provide quotas or some sort of isolation across tenants. For example, consider we have two tables Table A and Table B in the same Pinot cluster.

We can configure Table A with server tenant Tenant A and Table B with server tenant Tenant B. We can tag some of the server nodes for Tenant A and some for Tenant B. This will ensure that segments of Table A only reside on servers tagged with Tenant A, and segment of Table B only reside on servers tagged with Tenant B. The same isolation can be achieved at the broker level, by configuring broker tenants to the tables.

No need to create separate clusters for every table or use case!

Tenant configuration

This tenant is defined in the section of the table config.

This section contains two main fields broker and server , which decide the tenants used for the broker and server components of this table.

In the above example:

• The table will be served by brokers that have been tagged as brokerTenantName_BROKER in Helix.

• If this were an offline table, the offline segments for the table will be hosted in Pinot servers tagged in Helix as serverTenantName_OFFLINE

• If this were a real-time table, the real-time segments (both consuming as well as completed ones) will be hosted in pinot servers tagged in Helix as serverTenantName_REALTIME.

Create a tenant

Broker tenant

Here's a sample broker tenant config. This will create a broker tenant sampleBrokerTenant by tagging three untagged broker nodes as sampleBrokerTenant_BROKER.

To create this tenant use the following command. The creation will fail if number of untagged broker nodes is less than numberOfInstances.

Check out the table config in the to make sure it was successfully uploaded.

Server tenant

Here's a sample server tenant config. This will create a server tenant sampleServerTenant by tagging 1 untagged server node as sampleServerTenant_OFFLINE and 1 untagged server node as sampleServerTenant_REALTIME.

To create this tenant use the following command. The creation will fail if number of untagged server nodes is less than offlineInstances + realtimeInstances.

Check out the table config in the to make sure it was successfully uploaded.

In this quickstart guide, you will set up a Kubernetes Cluster on

1. Tooling Installation

1.1 Install Kubectl

Follow this link () to install kubectl.

For Mac users

Check kubectl version after installation.

1.2 Install Helm

To install Helm, see .

For Mac users

Check helm version after installation.

1.3 Install Azure CLI

Follow this link () to install Azure CLI.

For Mac users

2. (Optional) Log in to your Azure account

This script will open your default browser to sign-in to your Azure Account.

3. (Optional) Create a Resource Group

Use the following script create a resource group in location eastus.

4. (Optional) Create a Kubernetes cluster(AKS) in Azure

This script will create a 3 node cluster named pinot-quickstart for demo purposes.

Modify the parameters in the following example command with your resource group and cluster details:

Once the command succeeds, the cluster is ready to be used.

5. Connect to an existing cluster

Run the following command to get the credential for the cluster pinot-quickstart that you just created:

To verify the connection, run the following:

6. Pinot quickstart

Follow this to deploy your Pinot demo.

7. Delete a Kubernetes Cluster

Once you have set up a cluster, you can start exploring the data and the APIs using the Pinot Data Explorer.

Navigate to in your browser to open the Data Explorer UI.

Cluster Manager

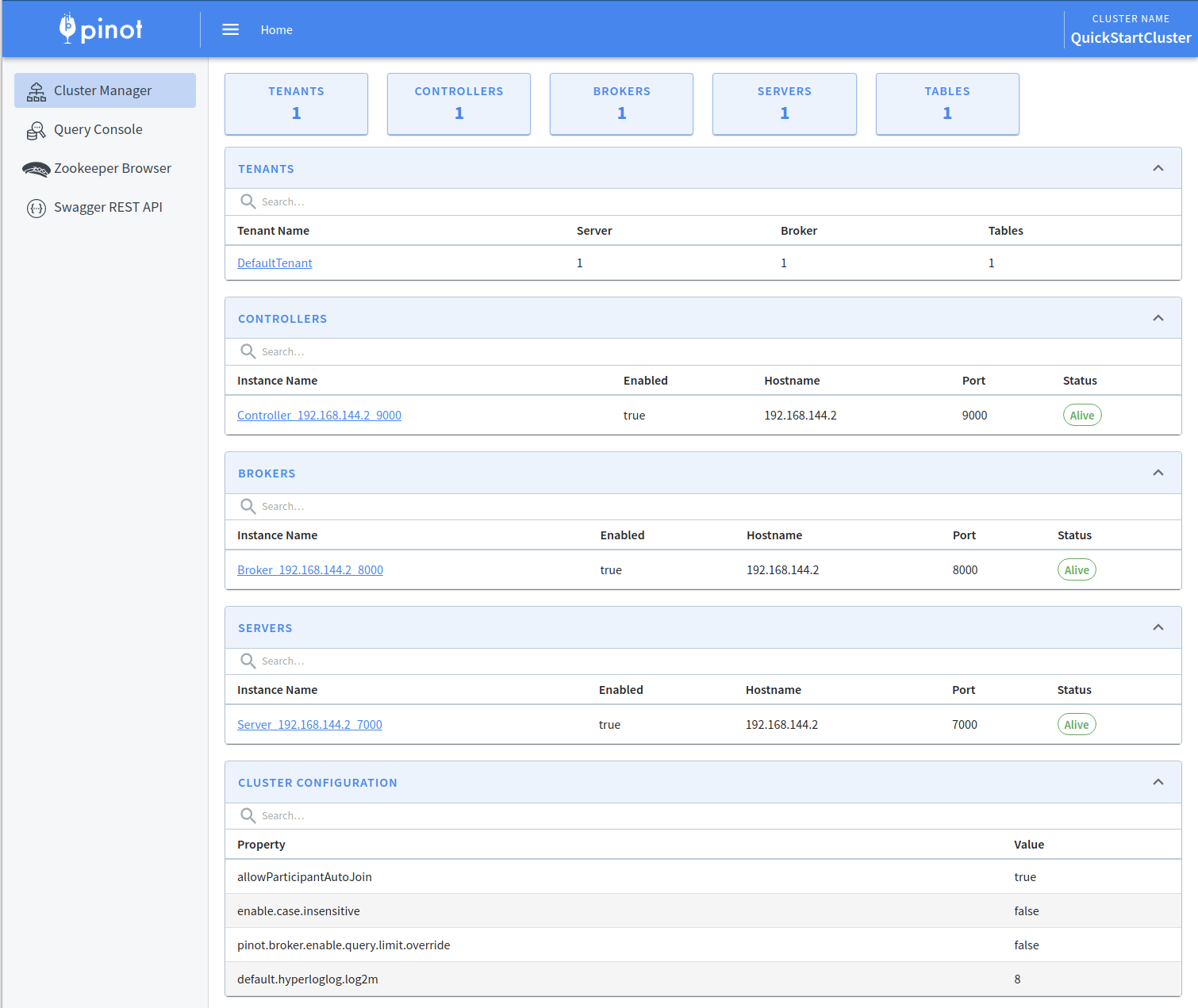

The first screen that you'll see when you open the Pinot Data Explorer is the Cluster Manager. The Cluster Manager provides a UI to operate and manage your cluster.

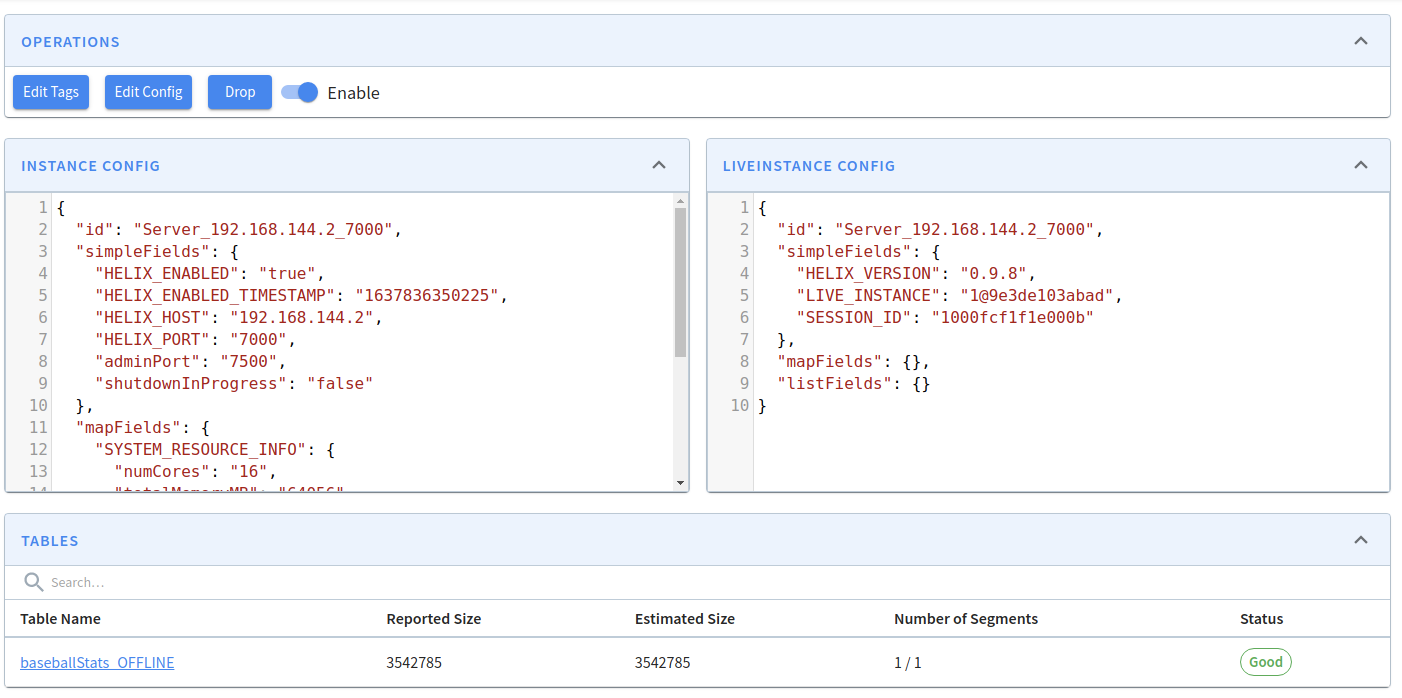

If you want to view the contents of a server, click on its instance name. You'll then see the following:

To view the baseballStats table, click on its name, which will show the following screen:

From this screen, we can edit or delete the table, edit or adjust its schema, as well as several other operations.

For example, if we want to add yearID to the list of inverted indexes, click on Edit Table, add the extra column, and click Save:

Query Console

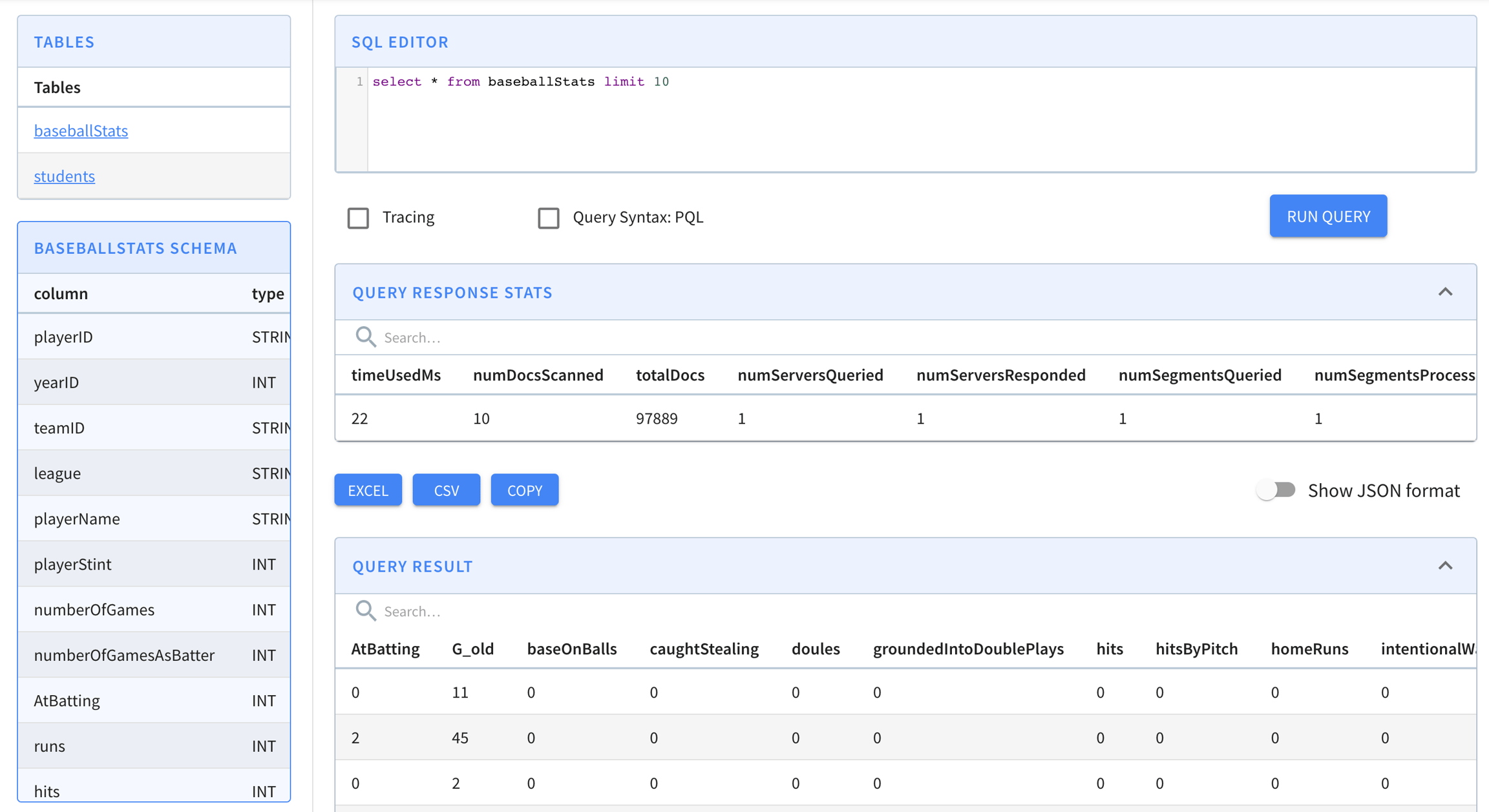

Let's run some queries on the data in the Pinot cluster. Navigate to to see the querying interface.

We can see our baseballStats table listed on the left (you will see meetupRSVP or airlineStats if you used the streaming or the hybrid ). Click on the table name to display all the names along with the data types of the columns of the table.

You can also execute a sample query select * from baseballStats limit 10 by typing it in the text box and clicking the Run Query button.

Cmd + Enter can also be used to run the query when focused on the console.

Here are some sample queries you can try:

Pinot supports a subset of standard SQL. For more information, see .

Rest API

The contains all the APIs that you will need to operate and manage your cluster. It provides a set of APIs for Pinot cluster management including health check, instances management, schema and table management, data segments management.

Let's check out the tables in this cluster by going to , click Try it out, and then click Execute. We can see thebaseballStats table listed here. We can also see the exact cURL call made to the controller API.

You can look at the configuration of this table by going to , click Try it out, type baseballStats in the table name, and then click Execute.

Let's check out the schemas in the cluster by going to , click Try it out, and then click Execute. We can see a schema called baseballStats in this list.

Take a look at the schema by going to , click Try it out, type baseballStats in the schema name, and then click Execute.

Finally, let's check out the data segments in the cluster by going to , click Try it out, type in baseballStats in the table name, and then click Execute. There's 1 segment for this table, called baseballStats_OFFLINE_0.

To learn how to upload your own data and schema, see or .

We can define the as a mapping from document IDs (also known as rows) to values. Similarly, an inverted index establishes a mapping from values to a set of document IDs, making it the "inverted" version of the forward index. When you frequently use a column for filtering operations like EQ (equal), IN (membership check), GT (greater than), etc., incorporating an inverted index can significantly enhance query performance.

Pinot supports two distinct types of inverted indexes: bitmap inverted indexes and sorted inverted indexes. Bitmap inverted indexes represent the actual inverted index type, whereas the sorted type is automatically available when the column is sorted. Both types of indexes necessitate the enabling of a for the respective column.

Bitmap inverted index

When a column is not sorted, and an inverted index is enabled for that column, Pinot maintains a mapping from each value to a bitmap of rows. This design ensures that value lookup operations take constant time, providing efficient querying capabilities.

When an inverted index is enabled for a column, Pinot maintains a map from each value to a bitmap of rows, which makes value lookup take constant time. If you have a column that is frequently used for filtering, adding an inverted index will improve performance greatly. You can create an inverted index on a multi-value column.

Inverted indexes are disabled by default and can be enabled for a column by specifying the configuration within the :

The older way to configure inverted indexes can also be used, although it is not actually recommended:

When the index is created

By default, bitmap inverted indexes are not generated when the segment is initially created; instead, they are created when the segment is loaded by Pinot. This behavior is governed by the table configuration option indexingConfig.createInvertedIndexDuringSegmentGeneration, which is set to false by default.

Sorted inverted index

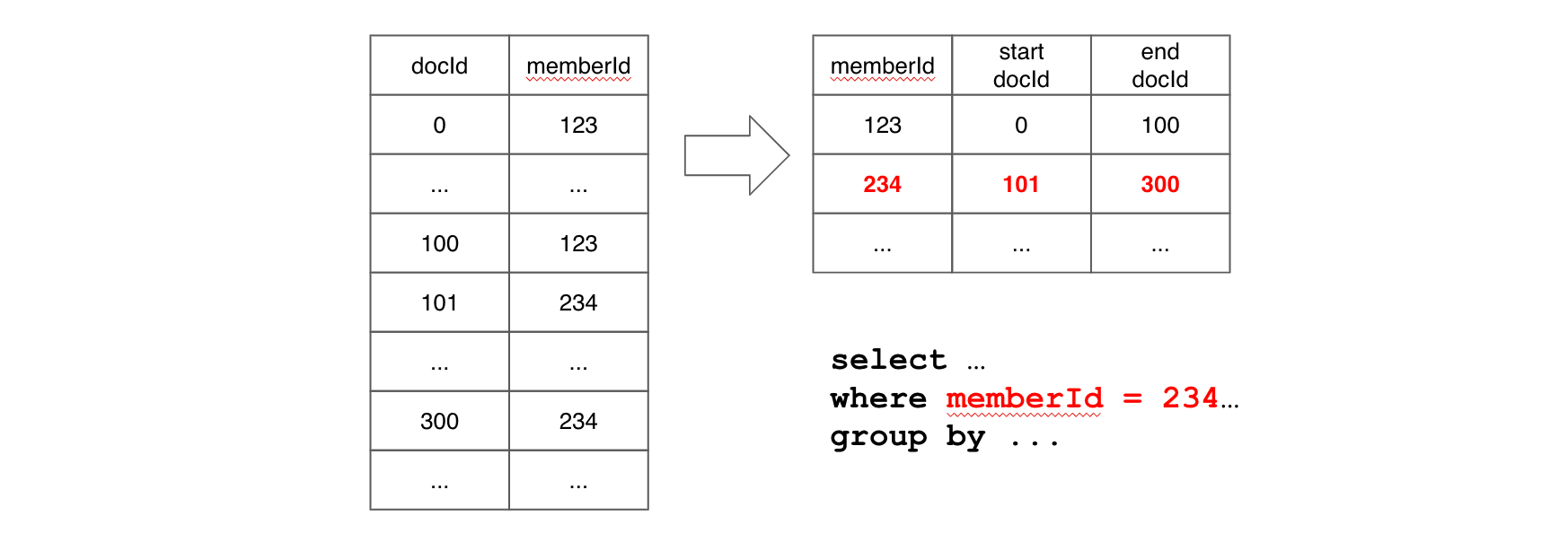

As explained in the section, a column that is both sorted and equipped with a dictionary is encoded in a specialized manner that serves the purpose of implementing both forward and inverted indexes. Consequently, when these conditions are met, an inverted index is effectively created without additional configuration, even if the configuration suggests otherwise. This sorted version of the forward index offers a lookup time complexity of log(n) and leverages data locality.

For instance, consider the following example: if a query includes a filter on the memberId column, Pinot will perform a binary search on memberId values to find the range pair of docIds for corresponding filtering value. If the query needs to scan values for other columns after filtering, values within the range docId pair will be located together, which means we can benefit from data locality.

A sorted inverted index indeed offers superior performance compared to a bitmap inverted index, but it's important to note that it can only be applied to sorted columns. In cases where query performance with a regular inverted index is unsatisfactory, especially when a large portion of queries involve filtering on the same column (e.g., _memberId_), using a sorted index can substantially enhance query performance.

In this quickstart guide, you will set up a Kubernetes Cluster on Amazon Elastic Kubernetes Service (Amazon EKS)

1. Tooling Installation

1.1 Install Kubectl

To install kubectl, see Install kubectl.

For Mac users

brew install kubernetes-cli

Check kubectl version after installation.

kubectl version

1.2 Install Helm

Follow this link (https://helm.sh/docs/using_helm/#installing-helm) to install helm.

For Mac users

brew install kubernetes-helm

Check helm version after installation.

helm version

1.3 Install AWS CLI

Follow this link (https://docs.aws.amazon.com/cli/latest/userguide/cli-chap-install.html#install-tool-bundled) to install AWS CLI.

For Mac users

curl "https://d1vvhvl2y92vvt.cloudfront.net/awscli-exe-macos.zip" -o "awscliv2.zip"
unzip awscliv2.zip
sudo ./aws/install

1.4 Install Eksctl

Follow this link (https://docs.aws.amazon.com/eks/latest/userguide/eksctl.html#installing-eksctl) to install AWS CLI.

For Mac users

brew tap weaveworks/tap
brew install weaveworks/tap/eksctl

2. (Optional) Log in to your AWS account

For first-time AWS users, register your account at https://aws.amazon.com/.

Once you have created the account, go to AWS Identity and Access Management (IAM) to create a user and create access keys under Security Credential tab.

aws configure

3. (Optional) Create a Kubernetes cluster(EKS) in AWS

The script below will create a 1 node cluster named pinot-quickstart in us-west-2 with a t3.xlarge machine for demo purposes:

EKS_CLUSTER_NAME=pinot-quickstart
eksctl create cluster \
--name ${EKS_CLUSTER_NAME} \
--version 1.16 \
--region us-west-2 \
--nodegroup-name standard-workers \
--node-type t3.xlarge \
--nodes 1 \
--nodes-min 1 \
--nodes-max 1

For k8s 1.23+, run the following commands to allow the containers to provision their storage:

eksctl utils associate-iam-oidc-provider --region=us-east-2 --cluster=pinot-quickstart --approve

eksctl create iamserviceaccount \
  --name ebs-csi-controller-sa \
  --namespace kube-system \
  --cluster pinot-quickstart \
  --attach-policy-arn arn:aws:iam::aws:policy/service-role/AmazonEBSCSIDriverPolicy \
  --approve \
  --role-only \
  --role-name AmazonEKS_EBS_CSI_DriverRole

eksctl create addon --name aws-ebs-csi-driver --cluster pinot-quickstart --service-account-role-arn arn:aws:iam::$(aws sts get-caller-identity --query Account --output text):role/AmazonEKS_EBS_CSI_DriverRole --force

Use the following command to monitor the cluster status:

EKS_CLUSTER_NAME=pinot-quickstart
aws eks describe-cluster --name ${EKS_CLUSTER_NAME} --region us-west-2

Once the cluster is in ACTIVE status, it's ready to be used.

4. Connect to an existing cluster

Run the following command to get the credential for the cluster pinot-quickstart that you just created:

EKS_CLUSTER_NAME=pinot-quickstart
aws eks update-kubeconfig --name ${EKS_CLUSTER_NAME}

To verify the connection, run the following:

kubectl get nodes

5. Pinot quickstart

Follow this Kubernetes quickstart to deploy your Pinot demo.

6. Delete a Kubernetes Cluster

EKS_CLUSTER_NAME=pinot-quickstart
aws eks delete-cluster --name ${EKS_CLUSTER_NAME}

Overview

Apache Pinot now supports a Vector Index for efficient similarity searches over high-dimensional vector embeddings. This feature introduces the capability to store and query float array columns (multi-valued) using a vector similarity algorithm.

Key Features

• Vector Index is implemented using HNSW (Hierarchical Navigable Small World) for approximate nearest neighbor (ANN) search.

• Adds support for a predicate and function:

  • VECTOR_SIMILARITY(v1, v2, [optional topK]) to retrieve the topK closest vectors based on similarity.

  • The similarity function can be used as part of a query to filter and rank results.

Examples

Below is an example schema designed for a use case involving product reviews with vector embeddings for each review.

Schema

{
  "metricFieldSpecs": [],
  "dimensionFieldSpecs": [
    {
      "dataType": "STRING",
      "name": "ProductId"
    },
    {
      "dataType": "STRING",
      "name": "UserId"
    },
    {
      "dataType": "INT",
      "name": "Score"
    },
    {
      "dataType": "STRING",
      "name": "Summary"
    },
    {
      "dataType": "STRING",
      "name": "Text"
    },
    {
      "dataType": "STRING",
      "name": "combined"
    },
    {
      "dataType": "INT",
      "name": "n_tokens"
    },
    {
      "dataType": "FLOAT",
      "name": "embedding",
      "singleValueField": false
    }
  ],
  "dateTimeFieldSpecs": [
    {
      "name": "ts",
      "dataType": "TIMESTAMP",
      "format": "1:MILLISECONDS:TIMESTAMP",
      "granularity": "1:SECONDS"
    }
  ],
  "schemaName": "fineFoodReviews"
}

In this schema:

• The embedding column is a multi-valued float array designed to store high-dimensional vector embeddings (e.g., 1536 dimensions from an NLP model).

• Other fields, such as ProductId, UserId, and Text, store metadata and review text.

Table Config

To enable the Vector Index, configure the table with the appropriate fieldConfigList. The embedding column is specified to use the Vector Index with HNSW for similarity searches.

{
  ...
  "fieldConfigList": [
    {
      "encodingType": "RAW",
      "indexType": "VECTOR",
      "name": "embedding",
      "properties": {
        "vectorIndexType": "HNSW",
        "vectorDimension": 1536,
        "vectorDistanceFunction": "COSINE",
        "version": 1
      }
    }
  ]
}

Explanation of Properties:

1. vectorIndexType:

Specifies the type of vector index to use. Currently supports HNSW.

1. vectorDimension:

Defines the dimensionality of the vectors stored in the column. (e.g., 1536 for typical embeddings from models like OpenAI or BERT).

1. vectorDistanceFunction:

Specifies the distance metric for similarity computation. Options include:

• INNER_PRODUCT:

  • Computes the inner product (dot product) of the two vectors.

  • Typically used when vectors are normalized and higher scores indicate greater similarity.

• L2:

  • Measures the Euclidean distance between vectors.

  • Suitable for tasks where spatial closeness in high-dimensional space indicates similarity.

• L1:

  • Measures the Manhattan distance between vectors (sum of absolute differences of coordinates).

  • Useful for some scenarios where simpler distance metrics are preferred.

• COSINE:

  • Measures cosine similarity, which considers the angle between vectors.

  • Ideal for normalized vectors where orientation matters more than magnitude.

1. version:

Specifies the version of the Vector Index implementation.

Query

SELECT ProductId,
       UserId,
       l2_distance(embedding, ARRAY[-0.0013143676, -0.011042999, ...]) AS l2_dist,
       n_tokens,
       combined
FROM fineFoodReviews
WHERE VECTOR_SIMILARITY(embedding, ARRAY[-0.0013143676, -0.011042999, ...], 5)
ORDER BY l2_dist ASC
LIMIT 10;

VECTOR_SIMILARITY:

A predicate that retrieves the top k closest vectors to the query vector.

Inputs:

• embedding: The vector column.

• Query vector (literal array).

• Optional topK parameter (default: 10).

To use HDFS as deep storage you need to include HDFS dependency jars and plugins.

Server Setup

Configuration

pinot.server.instance.enable.split.commit=true
pinot.server.storage.factory.class.hdfs=org.apache.pinot.plugin.filesystem.HadoopPinotFS
pinot.server.storage.factory.hdfs.hadoop.conf.path=/path/to/hadoop/conf/directory/
pinot.server.segment.fetcher.protocols=file,http,hdfs
pinot.server.segment.fetcher.hdfs.class=org.apache.pinot.common.utils.fetcher.PinotFSSegmentFetcher
pinot.server.segment.fetcher.hdfs.hadoop.kerberos.principle=<your kerberos principal>
pinot.server.segment.fetcher.hdfs.hadoop.kerberos.keytab=<your kerberos keytab>
pinot.set.instance.id.to.hostname=true
pinot.server.instance.dataDir=/path/in/local/filesystem/for/pinot/data/server/index
pinot.server.instance.segmentTarDir=/path/in/local/filesystem/for/pinot/data/server/segment
pinot.server.grpc.enable=true
pinot.server.grpc.port=8090

Executable

export HADOOP_HOME=/path/to/hadoop/home
export HADOOP_VERSION=2.7.1
export HADOOP_GUAVA_VERSION=11.0.2
export HADOOP_GSON_VERSION=2.2.4
export GC_LOG_LOCATION=/path/to/gc/log/file
export PINOT_VERSION=0.10.0
export PINOT_DISTRIBUTION_DIR=/path/to/apache-pinot-${PINOT_VERSION}-bin/
export SERVER_CONF_DIR=/path/to/pinot/conf/dir/
export ZOOKEEPER_ADDRESS=localhost:2181


export CLASSPATH_PREFIX="${HADOOP_HOME}/share/hadoop/hdfs/hadoop-hdfs-${HADOOP_VERSION}.jar:${HADOOP_HOME}/share/hadoop/common/lib/hadoop-annotations-${HADOOP_VERSION}.jar:${HADOOP_HOME}/share/hadoop/common/lib/hadoop-auth-${HADOOP_VERSION}.jar:${HADOOP_HOME}/share/hadoop/common/hadoop-common-${HADOOP_VERSION}.jar:${HADOOP_HOME}/share/hadoop/common/lib/guava-${HADOOP_GUAVA_VERSION}.jar:${HADOOP_HOME}/share/hadoop/common/lib/gson-${HADOOP_GSON_VERSION}.jar"
export JAVA_OPTS="-Xms4G -Xmx16G -XX:+UseG1GC -XX:MaxGCPauseMillis=200 -Xloggc:${GC_LOG_LOCATION}/gc-pinot-server.log"
${PINOT_DISTRIBUTION_DIR}/bin/start-server.sh  -zkAddress ${ZOOKEEPER_ADDRESS} -configFileName ${SERVER_CONF_DIR}/server.conf

Controller Setup

Configuration

controller.data.dir=hdfs://path/in/hdfs/for/controller/segment
controller.local.temp.dir=/tmp/pinot/
controller.zk.str=<ZOOKEEPER_HOST:ZOOKEEPER_PORT>
controller.enable.split.commit=true
controller.access.protocols.http.port=9000
controller.helix.cluster.name=PinotCluster
pinot.controller.storage.factory.class.hdfs=org.apache.pinot.plugin.filesystem.HadoopPinotFS
pinot.controller.storage.factory.hdfs.hadoop.conf.path=/path/to/hadoop/conf/directory/
pinot.controller.segment.fetcher.protocols=file,http,hdfs
pinot.controller.segment.fetcher.hdfs.class=org.apache.pinot.common.utils.fetcher.PinotFSSegmentFetcher
pinot.controller.segment.fetcher.hdfs.hadoop.kerberos.principle=<your kerberos principal>
pinot.controller.segment.fetcher.hdfs.hadoop.kerberos.keytab=<your kerberos keytab>
controller.vip.port=9000
controller.port=9000
pinot.set.instance.id.to.hostname=true
pinot.server.grpc.enable=true

Executable

export HADOOP_HOME=/path/to/hadoop/home
export HADOOP_VERSION=2.7.1
export HADOOP_GUAVA_VERSION=11.0.2
export HADOOP_GSON_VERSION=2.2.4
export GC_LOG_LOCATION=/path/to/gc/log/file
export PINOT_VERSION=0.10.0
export PINOT_DISTRIBUTION_DIR=/path/to/apache-pinot-${PINOT_VERSION}-bin/
export SERVER_CONF_DIR=/path/to/pinot/conf/dir/
export ZOOKEEPER_ADDRESS=localhost:2181


export CLASSPATH_PREFIX="${HADOOP_HOME}/share/hadoop/hdfs/hadoop-hdfs-${HADOOP_VERSION}.jar:${HADOOP_HOME}/share/hadoop/common/lib/hadoop-annotations-${HADOOP_VERSION}.jar:${HADOOP_HOME}/share/hadoop/common/lib/hadoop-auth-${HADOOP_VERSION}.jar:${HADOOP_HOME}/share/hadoop/common/hadoop-common-${HADOOP_VERSION}.jar:${HADOOP_HOME}/share/hadoop/common/lib/guava-${HADOOP_GUAVA_VERSION}.jar:${HADOOP_HOME}/share/hadoop/common/lib/gson-${HADOOP_GSON_VERSION}.jar"
export JAVA_OPTS="-Xms8G -Xmx12G -XX:+UseG1GC -XX:MaxGCPauseMillis=200 -Xloggc:${GC_LOG_LOCATION}/gc-pinot-controller.log"
${PINOT_DISTRIBUTION_DIR}/bin/start-controller.sh -configFileName ${SERVER_CONF_DIR}/controller.conf

Broker Setup

Configuration

pinot.set.instance.id.to.hostname=true
pinot.server.grpc.enable=true

Executable

export HADOOP_HOME=/path/to/hadoop/home
export HADOOP_VERSION=2.7.1
export HADOOP_GUAVA_VERSION=11.0.2
export HADOOP_GSON_VERSION=2.2.4
export GC_LOG_LOCATION=/path/to/gc/log/file
export PINOT_VERSION=0.10.0
export PINOT_DISTRIBUTION_DIR=/path/to/apache-pinot-${PINOT_VERSION}-bin/
export SERVER_CONF_DIR=/path/to/pinot/conf/dir/
export ZOOKEEPER_ADDRESS=localhost:2181


export CLASSPATH_PREFIX="${HADOOP_HOME}/share/hadoop/hdfs/hadoop-hdfs-${HADOOP_VERSION}.jar:${HADOOP_HOME}/share/hadoop/common/lib/hadoop-annotations-${HADOOP_VERSION}.jar:${HADOOP_HOME}/share/hadoop/common/lib/hadoop-auth-${HADOOP_VERSION}.jar:${HADOOP_HOME}/share/hadoop/common/hadoop-common-${HADOOP_VERSION}.jar:${HADOOP_HOME}/share/hadoop/common/lib/guava-${HADOOP_GUAVA_VERSION}.jar:${HADOOP_HOME}/share/hadoop/common/lib/gson-${HADOOP_GSON_VERSION}.jar"
export JAVA_OPTS="-Xms4G -Xmx4G -XX:+UseG1GC -XX:MaxGCPauseMillis=200 -Xloggc:${GC_LOG_LOCATION}/gc-pinot-broker.log"
${PINOT_DISTRIBUTION_DIR}/bin/start-broker.sh -zkAddress ${ZOOKEEPER_ADDRESS} -configFileName  ${SERVER_CONF_DIR}/broker.conf

Troubleshooting

If you receive an error that says No FileSystem for scheme"hdfs", the problem is likely to be a class loading issue.

To fix, try adding the following property to core-site.xml:

fs.hdfs.impl org.apache.hadoop.hdfs.DistributedFileSystem

And then export /opt/pinot/lib/hadoop-common-<release-version>.jar in the classpath.

Summary

This is a bug-fixing release contains:

• use legacy case-when format (https://github.com/apache/pinot/pull/10291)

The release is based on the release 0.12.0 with the following cherry-picks:

• 6f5a8fc883e1d576117fdb92f09103067672aaca

Each table in Pinot is associated with a schema. A schema defines:

• Fields in the table with their data types.

• Whether the table uses column-based or table-based null handling. For more information, see Null value support.

The schema is stored in Zookeeper along with the table configuration.

Categories

A schema also defines what category a column belongs to. Columns in a Pinot table can be categorized into three categories:

Pinot does not enforce strict rules on which of these categories columns belong to, rather the categories can be thought of as hints to Pinot to do internal optimizations.

For example, metrics may be stored without a dictionary and can have a different default null value.

The categories are also relevant when doing segment merge and rollups. Pinot uses the dimension and time fields to identify records against which to apply merge/rollups.

Metrics aggregation is another example where Pinot uses dimensions and time are used as the key, and automatically aggregates values for the metric columns.

For configuration details, see Schema configuration reference.

Date and time fields

Since Pinot doesn't have a dedicated DATETIME datatype support, you need to input time in either STRING, LONG, or INT format. However, Pinot needs to convert the date into an understandable format such as epoch timestamp to do operations. You can refer to DateTime field spec configs for more details on supported formats.

Creating a schema

First, Make sure your cluster is up and running.

Let's create a schema and put it in a JSON file. For this example, we have created a schema for flight data.

{
  "schemaName": "flights",
  "enableColumnBasedNullHandling": true,
  "dimensionFieldSpecs": [
    {
      "name": "flightNumber",
      "dataType": "LONG",
      "notNull": true
    },
    {
      "name": "tags",
      "dataType": "STRING",
      "singleValueField": false,
      "defaultNullValue": "null"
    }
  ],
  "metricFieldSpecs": [
    {
      "name": "price",
      "dataType": "DOUBLE",
      "notNull": true,
      "defaultNullValue": 0
    }
  ],
  "dateTimeFieldSpecs": [
    {
      "name": "millisSinceEpoch",
      "dataType": "LONG",
      "format": "EPOCH",
      "granularity": "15:MINUTES"
    },
    {
      "name": "hoursSinceEpoch",
      "dataType": "INT",
      "notNull": true,
      "format": "EPOCH|HOURS",
      "granularity": "1:HOURS"
    },
    {
      "name": "dateString",
      "dataType": "STRING",
      "format": "SIMPLE_DATE_FORMAT|yyyy-MM-dd",
      "granularity": "1:DAYS"
    }
  ]
}

Then, we can upload the sample schema provided above using either a Bash command or REST API call.

bin/pinot-admin.sh AddSchema -schemaFile flights-schema.json -exec

OR

bin/pinot-admin.sh AddTable -schemaFile flights-schema.json -tableFile flights-table.json -exec

curl -F [email protected]  localhost:9000/schemas

Check out the schema in the Rest API to make sure it was successfully uploaded

Overview of segment compaction

Compacting a segment replaces the completed segment with a compacted segment that only contains the latest version of records. For more information about how to use upserts on a real-time table in Pinot, see Stream Ingestion with Upsert.

The Pinot upsert feature stores all versions of the record ingested into immutable segments on disk. Even though the previous versions are not queried, they continue to add to the storage overhead. To remove older records (no longer used in query results) and reclaim storage space, we need to compact Pinot segments periodically. Segment compaction is done via a new minion task. To schedule Pinot tasks periodically, see the Minion documentation.

Compact segments on upserts in a real-time table

To compact segments on upserts, complete the following steps:

1. Ensure task scheduling is enabled and a minion is available.

2. Add the following to your table configuration. These configurations (except schedule)determine which segments to compact.

"task": {
  "taskTypeConfigsMap": {
    "UpsertCompactionTask": {
      "schedule": "0 */5 * ? * *",
      "bufferTimePeriod": "7d",
      "invalidRecordsThresholdPercent": "30",
      "invalidRecordsThresholdCount": "100000",
      "tableMaxNumTasks": "100",
      "validDocIdsType": "SNAPSHOT"
    }
  }
}

• bufferTimePeriod: To compact segments once they are complete, set to “0d”. To delay compaction (as the configuration above shows by 7 days ("7d")), specify the number of days to delay compaction after a segment completes.

• invalidRecordsThresholdPercent (Optional) Limits the older records allowed in the completed segment as a percentage of the total number of records in the segment. In the example above, the completed segment may be selected for compaction when 30% of the records in the segment are old.

• invalidRecordsThresholdCount (Optional) Limits the older records allowed in the completed segment by record count. In the example above, if the segment contains more than 100K records, it may be selected for compaction.

• tableMaxNumTasks (Optional) Limits the number of tasks allowed to be scheduled.

• validDocIdsType (Optional) Specifies the source of validDocIds to fetch when running the data compaction. The valid types are SNAPSHOT, IN_MEMORY, IN_MEMORY_WITH_DELETE

  • SNAPSHOT: Default validDocIds type. This indicates that the validDocIds bitmap is loaded from the snapshot from the Pinot segment. UpsertConfig's enableSnapshot must be enabled for this type.

  • IN_MEMORY: This indicates that the validDocIds bitmap is loaded from the real-time server's in-memory.

  • IN_MEMORY_WITH_DELETE: This indicates that the validDocIds bitmap is read from the real-time server's in-memory. The valid document ids here does take account into the deleted records. UpsertConfig's deleteRecordColumn must be provided for this type.

Example

The following example includes a dataset with 24M records and 240K unique keys that have each been duplicated 100 times. After ingesting the data, there are 6 segments (5 completed segments and 1 consuming segment) with a total estimated size of 22.8MB.

Submitting the query “set skipUpsert=true; select count(*) from transcript_upsert” before compaction produces 24,000,000 results:

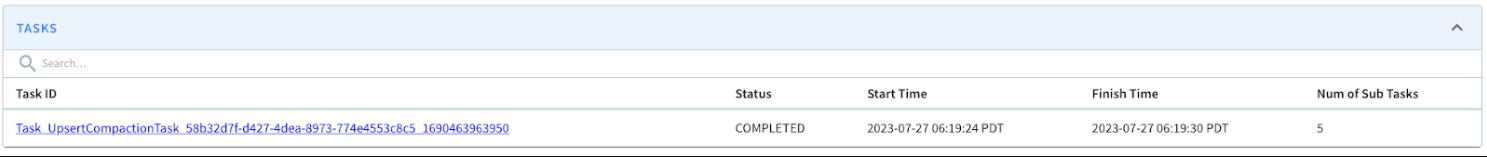

After the compaction tasks are complete, the Minion Task Manager UI reports the following.

Segment compactions generates a task for each segment to compact. Five tasks were generated in this case because 90% of the records (3.6–4.5M records) are considered ready for compaction in the completed segments, exceeding the configured thresholds.

Submitting the query again shows the count matches the set of 240K unique keys.

Once segment compaction has completed, the total number of segments remain the same and the total estimated size drops to 2.77MB.

Enable the using the pinot-hdfs plugin. In the controller or server, add the config:

HDFS implementation provides the following options:

• hadoop.conf.path: Absolute path of the directory containing Hadoop XML configuration files, such as hdfs-site.xml, core-site.xml .

• hadoop.write.checksum: Create checksum while pushing an object. Default is false

• hadoop.kerberos.principle

• hadoop.kerberos.keytab

Each of these properties should be prefixed by pinot.[node].storage.factory.class.hdfs. where node is either controller or server depending on the config

The kerberos configs should be used only if your Hadoop installation is secured with Kerberos. Refer to the for information on how to secure Hadoop using Kerberos.

You must provide proper Hadoop dependencies jars from your Hadoop installation to your Pinot startup scripts.

Push HDFS segment to Pinot Controller

To push HDFS segment files to Pinot controller, send the HDFS path of your newly created segment files to the Pinot Controller. The controller will download the files.

This curl example requests tells the controller to download segment files to the proper table:

Examples

Job spec

Standalone Job:

Hadoop Job:

Controller config

Server config

Minion config

Summary

This release fixes the major issue of and a major bug fixing of pinot admin exit code issue().

The release is based on the release 0.9.0 with the following cherry-picks:

Summary

This is a bug fixing release contains:

• Upgrade log4j to 2.16.0 to fix ()

• Upgrade swagger-ui to 3.23.11 to fix ()

• Fix the bug that RealtimeToOfflineTask failed to progress with large time bucket gaps ().

The release is based on the release 0.9.1 with the following cherry-picks:

In Apache Pinot, create a table by creating a JSON file, generally referred to as your table config. Update, add, or delete parameters as needed, and then reload the file.

Create a Pinot table configuration

Before you create a Pinot table configuration, you must first have a running Pinot cluster with broker and server tenants.

1. Create a plaintext file table configuration locally using settings from the available properties for your use case. You may find it useful to download an example from the Pinot GitHub and then modify it. An example from among these is included at the end of this page in Example Pinot table config file

2. Use the Pinot API to upload your table config file: POST @fileName.json URL:9000/tables

Update a Pinot table configuration

To modify your Pinot table configuration, use the Pinot UI or the API.

Any time you make a change to your table config, you may need to do one or more of the following, depending on the change.

Simple changes only require updating and saving your modified table configuration file. These include:

• Changing the data or segment retention time

• Changing the realtime consumption rate limiter settings

To update existing data and segments, after you update and save the changes to the table config file, do the following as applicable:

When you add or modify indexes or the table schema, perform a segment reload. To reload all segments:

• In the Pinot UI, from the table page, click Reload All Segments.

• Using the Pinot API, send POST /segments/{tableName}/reload.

When you re-partition data, perform a segment refresh. To refresh, replace an existing segment with a new one by uploading a segment reusing the existing filename. Use the Pinot API, send POST /segments?tableName={yourTableName}.

When you change the transform function used to populate a derived field or increase the number of partitions in an upsert-enabled table, perform a table re-bootstrap. One way to do this is to delete and recreate the table:

• Using the Pinot API, first send DELETE /tables/{tableName} followed by POST /tables with the new table configuration.

When you change the stream topic or change the Kafka cluster containing the Kafka topic you want to consume from, perform a real-time ingestion pause and resume. To pause and resume real-time ingestion:

• Using the Pinot API, first send POST /tables/{tableName}/pauseConsumption followed by POST /tables/{tableName}/resumeConsumption.

Update a Pinot table in the UI

To update a table configuration in the Pinot UI, do the following:

1. In the Cluster Manager click the Tenant Name of the tenant that hosts the table you want to modify.

2. Click the Table Name in the list of tables in the tenant.

3. Click the Edit Table button. This creates a pop-up window containing the table configuration. Edit the contents in this window. Click Save when you are done.

Update a Pinot table using the API

To update a table configuration using the Pinot API, do the following:

1. Get the current table configuration with GET /tables/{tableName}.

2. Modify the file locally.

3. Upload the edited file with PUT /table/{tableName} fileName.json.

Example Pinot table configuration file

This example comes from the Apache Pinot Quickstart Examples. This table configuration defines a table called airlineStats_OFFLINE, which you can interact with by running the example.

{
  "OFFLINE": {
    "tableName": "airlineStats_OFFLINE",
    "tableType": "OFFLINE",
    "segmentsConfig": {
      "timeType": "DAYS",
      "replication": "1",
      "segmentAssignmentStrategy": "BalanceNumSegmentAssignmentStrategy",
      "timeColumnName": "DaysSinceEpoch",
      "segmentPushType": "APPEND",
      "minimizeDataMovement": false
    },
    "tenants": {
      "broker": "DefaultTenant",
      "server": "DefaultTenant"
    },
    "tableIndexConfig": {
      "rangeIndexVersion": 2,
      "autoGeneratedInvertedIndex": false,
      "createInvertedIndexDuringSegmentGeneration": false,
      "loadMode": "MMAP",
      "enableDefaultStarTree": false,
      "starTreeIndexConfigs": [
        {
          "dimensionsSplitOrder": [
            "AirlineID",
            "Origin",
            "Dest"
          ],
          "skipStarNodeCreationForDimensions": [],
          "functionColumnPairs": [
            "COUNT__*",
            "MAX__ArrDelay"
          ],
          "maxLeafRecords": 10
        },
        {
          "dimensionsSplitOrder": [
            "Carrier",
            "CancellationCode",
            "Origin",
            "Dest"
          ],
          "skipStarNodeCreationForDimensions": [],
          "functionColumnPairs": [
            "MAX__CarrierDelay",
            "AVG__CarrierDelay"
          ],
          "maxLeafRecords": 10
        }
      ],
      "enableDynamicStarTreeCreation": true,
      "aggregateMetrics": false,
      "nullHandlingEnabled": false,
      "optimizeDictionary": false,
      "optimizeDictionaryForMetrics": false,
      "noDictionarySizeRatioThreshold": 0
    },
    "metadata": {
      "customConfigs": {}
    },
    "fieldConfigList": [
      {
        "name": "ts",
        "encodingType": "DICTIONARY",
        "indexType": "TIMESTAMP",
        "indexTypes": [
          "TIMESTAMP"
        ],
        "timestampConfig": {
          "granularities": [
            "DAY",
            "WEEK",
            "MONTH"
          ]
        }
      }
    ],
    "ingestionConfig": {
      "transformConfigs": [
        {
          "columnName": "ts",
          "transformFunction": "fromEpochDays(DaysSinceEpoch)"
        },
        {
          "columnName": "tsRaw",
          "transformFunction": "fromEpochDays(DaysSinceEpoch)"
        }
      ],
      "continueOnError": false,
      "rowTimeValueCheck": false,
      "segmentTimeValueCheck": true
    },
    "tierConfigs": [
      {
        "name": "hotTier",
        "segmentSelectorType": "time",
        "segmentAge": "3130d",
        "storageType": "pinot_server",
        "serverTag": "DefaultTenant_OFFLINE"
      },
      {
        "name": "coldTier",
        "segmentSelectorType": "time",
        "segmentAge": "3140d",
        "storageType": "pinot_server",
        "serverTag": "DefaultTenant_OFFLINE"
      }
    ],
    "isDimTable": false
  }
}

Prerequisite

• Ensure you have available Pinot Minion instances deployed within the cluster.

• Pinot version is 0.11.0 or above

How it works

1. Parse the query with the table name and directory URI along with a list of options for the ingestion job.

2. Call controller minion task execution API endpoint to schedule the task on minion

3. Response has the schema of table name and task job id.

Usage Syntax

INSERT INTO [database.]table FROM FILE dataDirURI OPTION ( k=v ) [, OPTION (k=v)]*

Example

SET taskName = 'myTask-s3';
SET input.fs.className = 'org.apache.pinot.plugin.filesystem.S3PinotFS';
SET input.fs.prop.accessKey = 'my-key';
SET input.fs.prop.secretKey = 'my-secret';
SET input.fs.prop.region = 'us-west-2';
INSERT INTO "baseballStats"
FROM FILE 's3://my-bucket/public_data_set/baseballStats/rawdata/'

Insert Rows into Pinot

We are actively developing this feature...

The details will be revealed soon.

Introduction

Pinot batch ingestion involves two parts: routine ingestion job(hourly/daily) and backfill. Here are some examples to show how routine batch ingestion works in Pinot offline table:

• Batch Ingestion Overview

• Batch Ingestion in Practice

High-level description

1. Organize raw data into buckets (eg: /var/pinot/airlineStats/rawdata/2014/01/01). Each bucket typically contains several files (eg: /var/pinot/airlineStats/rawdata/2014/01/01/airlineStats_data_2014-01-01_0.avro)

2. Run a Pinot batch ingestion job, which points to a specific date folder like ‘/var/pinot/airlineStats/rawdata/2014/01/01’. The segment generation job will convert each such avro file into a Pinot segment for that day and give it a unique name.

3. Run Pinot segment push job to upload those segments with those uniques names via a Controller API

This newly uploaded data can now be queried in Pinot. However, sometimes users will make changes to the raw data which need to be reflected in Pinot. This process is known as 'Backfill'.

How to backfill data in Pinot

Pinot supports data modification only at the segment level, which means you must update entire segments for doing backfills. The high level idea is to repeat steps 2 (segment generation) and 3 (segment upload) mentioned above:

• Backfill jobs must run at the same granularity as the daily job. E.g., if you need to backfill data for 2014/01/01, specify that input folder for your backfill job (e.g.: ‘/var/pinot/airlineStats/rawdata/2014/01/01’)

• The backfill job will then generate segments with the same name as the original job (with the new data).

• When uploading those segments to Pinot, the controller will replace the old segments with the new ones (segment names act like primary keys within Pinot) one by one.

Edge case example

Backfill jobs expect the same number of (or more) data files on the backfill date. So the segment generation job will create the same number of (or more) segments than the original run.

For example, assuming table airlineStats has 2 segments(airlineStats_2014-01-01_2014-01-01_0, airlineStats_2014-01-01_2014-01-01_1) on date 2014/01/01 and the backfill input directory contains only 1 input file. Then the segment generation job will create just one segment: airlineStats_2014-01-01_2014-01-01_0. After the segment push job, only segment airlineStats_2014-01-01_2014-01-01_0 got replaced and stale data in segment airlineStats_2014-01-01_2014-01-01_1 are still there.

If the raw data is modified in such a way that the original time bucket has fewer input files than the first ingestion run, backfill will fail.

The FST index supports regex queries on text. Decreases on-disk index by 4-6 times.

• Only supports regex queries

• Only supported on stored or completed Pinot segments (no consuming segments).

• Only supported on dictionary-encoded columns.

• Works better for prefix queries

For more information on the FST construction and code, see Lucene documentation.

Enable the FST index

To enable the FST index on a dictionary-encoded column, include the following configuration:

"fieldConfigList":[
{
"name":"text_col_1",
"encodingType":"DICTIONARY",
"indexType":"FST"
}
]

The FST index generates one FST index file (.lucene.fst). If the inverted index is enabled, this is further able to take advantage of that.

For more information about enabling the FST index, see ways to enable indexes.

Summary

This is a bug fixing release contains:

• Update Log4j to 2.17.0 to address CVE-2021-45105 (#7933)

The release is based on the release 0.9.2 with the following cherry-picks:

• 93c0404

In this guide, you'll learn how to download and install Apache Pinot as a standalone instance.

• Download Apache Pinot

• Set up a cluster

• Start a Pinot component in debug mode with IntelliJ

Download Apache Pinot

First, download the Pinot distribution for this tutorial. You can either download a packaged release or build a distribution from the source code.

Prerequisites

• Install with JDK 11 or 21. JDK 17 should work, but it is not officially supported.

• For JDK 8 support, Pinot 0.12.1 is the last version compilable from the source code.

• Pinot 1.0+ doesn't support JDK 8 anymore, build with JDK 11+

Note that some installations of the JDK do not contain the JNI bindings necessary to run all tests. If you see an error like java.lang.UnsatisfiedLinkError while running tests, you might need to change your JDK.

Download the distribution or build from source by selecting one of the following tabs:

PINOT_VERSION=1.1.0 #set to the Pinot version you decide to use

wget https://downloads.apache.org/pinot/apache-pinot-$PINOT_VERSION/apache-pinot-$PINOT_VERSION-bin.tar.gz

tar -zxvf apache-pinot-$PINOT_VERSION-bin.tar.gz

cd apache-pinot-$PINOT_VERSION-bin

OLDER_VERSION="0.10.0"
wget https://archive.apache.org/dist/pinot/apache-pinot-$OLDER_VERSION/apache-pinot-$OLDER_VERSION-bin.tar.gz

git clone https://github.com/apache/pinot.git
cd pinot

mvn install package -DskipTests -Pbin-dist

cd build

brew install pinot

Set up a cluster

Now that we've downloaded Pinot, it's time to set up a cluster. There are two ways to do this: through quick start or through setting up a cluster manually.

Quick start

Pinot comes with quick start commands that launch instances of Pinot components in the same process and import pre-built datasets.

For example, the following quick start command launches Pinot with a baseball dataset pre-loaded:

./bin/pinot-admin.sh QuickStart -type batch

For a list of all the available quick start commands, see the Quick Start Examples.

Manual cluster

If you want to play with bigger datasets (more than a few megabytes), you can launch each component individually.

The video below is a step-by-step walk through for launching the individual components of Pinot and scaling them to multiple instances.

You can find the commands that are shown in this video in the this Github repository.

export JAVA_OPTS="-Xms4G -Xmx8G"

export JAVA_OPTS="-Xms4G -Xmx8G -XX:+UseG1GC -XX:MaxGCPauseMillis=200 -Xloggc:gc-pinot-controller.log"

Start Zookeeper

./bin/pinot-admin.sh StartZookeeper \
  -zkPort 2191

You can use Zooinspector to browse the Zookeeper instance.

Start Pinot Controller

export JAVA_OPTS="-Xms4G -Xmx8G"
./bin/pinot-admin.sh StartController \
    -zkAddress localhost:2191 \
    -controllerPort 9000

Start Pinot Broker

export JAVA_OPTS="-Xms4G -Xmx4G"
./bin/pinot-admin.sh StartBroker \
    -zkAddress localhost:2191

Start Pinot Server

export JAVA_OPTS="-Xms4G -Xmx16G"
./bin/pinot-admin.sh StartServer \
    -zkAddress localhost:2191

Start Pinot Minion

export JAVA_OPTS="-Xms4G -Xmx4G"
./bin/pinot-admin.sh StartMinion \
    -zkAddress localhost:2191

Start Kafka

./bin/pinot-admin.sh  StartKafka \
  -zkAddress=localhost:2191/kafka \
  -port 19092

Once your cluster is up and running, you can head over to Exploring Pinot to learn how to run queries against the data.

Setup cluster with config files

Users could start and customize the cluster by modifying the config files and start the components with config files:

./bin/pinot-admin.sh StartController -config conf/pinot-controller.conf
./bin/pinot-admin.sh StartBroker -config conf/pinot-broker.conf
./bin/pinot-admin.sh StartServer -config conf/pinot-server.conf
./bin/pinot-admin.sh StartMinion -config conf/pinot-minion.conf

Start a Pinot component in debug mode with IntelliJ

Set break points and inspect variables by starting a Pinot component with debug mode in IntelliJ.

The following example demonstrates server debugging:

1. First, startzookeeper , controller, and broker using the steps described above.

2. Then, use the following configuration under $PROJECT_DIR$\.run ) to start the server, replacing the metrics-core version and cluster name as needed. This commit is an example of how to use it.

<component name="ProjectRunConfigurationManager">
  <configuration default="false" name="HelixServerStarter" type="Application" factoryName="Application" nameIsGenerated="true">
    <classpathModifications>
      <entry path="$PROJECT_DIR$/pinot-plugins/pinot-metrics/pinot-yammer/target/classes" />
      <entry path="$MAVEN_REPOSITORY$/com/yammer/metrics/metrics-core/2.2.0/metrics-core-2.2.0.jar" />
    </classpathModifications>
    <option name="MAIN_CLASS_NAME" value="org.apache.pinot.server.starter.helix.HelixServerStarter" />
    <module name="pinot-server" />
    <extension name="coverage">
      <pattern>
        <option name="PATTERN" value="org.apache.pinot.server.starter.helix.*" />
        <option name="ENABLED" value="true" />
      </pattern>
    </extension>
    <method v="2">
      <option name="Make" enabled="true" />
    </method>
  </configuration>
</component>

Commonly, ingested data has a complex structure. For example, Avro schemas have records and arrays while JSON supports objects and arrays.

Apache Pinot's data model supports primitive data types (including int, long, float, double, BigDecimal, string, bytes), and limited multi-value types, such as an array of primitive types. Simple data types allow Pinot to build fast indexing structures for good query performance, but does require some handling of the complex structures.

There are two options for complex type handling:

• Convert the complex-type data into a JSON string and then build a JSON index.

• Use the built-in complex-type handling rules in the ingestion configuration.

On this page, we'll show how to handle these complex-type structures with each of these two approaches. We will process some example data, consisting of the field group from the Meetup events Quickstart example.

This object has two child fields and the child group is a nested array with elements of object type.

JSON indexing

Apache Pinot provides a powerful JSON index to accelerate the value lookup and filtering for the column. To convert an object group with complex type to JSON, add the following to your table configuration.

{
    "ingestionConfig":{
      "transformConfigs": [
        {
          "columnName": "group_json",
          "transformFunction": "jsonFormat(\"group\")"
        }
      ],
    },
    ...
    "tableIndexConfig": {
    "loadMode": "MMAP",
    "noDictionaryColumns": [
      "group_json"
    ],
    "jsonIndexColumns": [
      "group_json"
    ]
  },

}

The config transformConfigs transforms the object group to a JSON string group_json, which then creates the JSON indexing with configuration jsonIndexColumns. To read the full spec, see meetupRsvpJson_realtime_table_config.json.

Also, note that group is a reserved keyword in SQL and therefore needs to be quoted in transformFunction.

The schema will look like this:

{
  {
      "name": "group_json",
      "dataType": "JSON",
    }
    ...
}

For the full specification, see json_meetupRsvp_schema.json.

With this, you can start to query the nested fields under group. For more details about the supported JSON function, see guide).

Ingestion configurations

Though JSON indexing is a handy way to process the complex types, there are some limitations:

• It’s not performant to group by or order by a JSON field, because JSON_EXTRACT_SCALAR is needed to extract the values in the GROUP BY and ORDER BY clauses, which invokes the function evaluation.

• It does not work with Pinot's multi-column functions such as DISTINCTCOUNTMV.

Alternatively, from Pinot 0.8, you can use the complex-type handling in ingestion configurations to flatten and unnest the complex structure and convert them into primitive types. Then you can reduce the complex-type data into a flattened Pinot table, and query it via SQL. With the built-in processing rules, you do not need to write ETL jobs in another compute framework such as Flink or Spark.

To process this complex type, you can add the configuration complexTypeConfig to the ingestionConfig. For example:

{
  "ingestionConfig": {
    "complexTypeConfig": {
      "delimiter": ".",
      "fieldsToUnnest": ["group.group_topics"],
      "collectionNotUnnestedToJson": "NON_PRIMITIVE"
    }
  }
}

With the complexTypeConfig , all the map objects will be flattened to direct fields automatically. And with unnestFields , a record with the nested collection will unnest into multiple records. For instance, the example at the beginning will transform into two rows with this configuration example.

Note that:

• The nested field group_id under group is flattened to group.group_id. The default value of the delimiter is . You can choose another delimiter by specifying the configuration delimiter under complexTypeConfig. This flattening rule also applies to maps in the collections to be unnested.

• The nested array group_topics under group is unnested into the top-level, and converts the output to a collection of two rows. Note the handling of the nested field within group_topics, and the eventual top-level field of group.group_topics.urlkey. All the collections to unnest shall be included in the configuration fieldsToUnnest.

• Collections not specified in fieldsToUnnestwill be serialized into JSON string, except for the array of primitive values, which will be ingested as a multi-value column by default. The behavior is defined by the collectionNotUnnestedToJson config, which takes the following values:

  • NON_PRIMITIVE- Converts the array to a multi-value column. (default)

  • ALL- Converts the array of primitive values to JSON string.

  • NONE- Does not do any conversion.

You can find the full specifications of the table config here and the table schema here.

You can then query the table with primitive values using the following SQL query:

SELECT "group.group_topics.urlkey",
       "group.group_topics.topic_name",
       "group.group_id"
FROM meetupRsvp
LIMIT 10

Infer the Pinot schema from the Avro schema and JSON data

When there are complex structures, it can be challenging and tedious to figure out the Pinot schema manually. To help with schema inference, Pinot provides utility tools to take the Avro schema or JSON data as input and output the inferred Pinot schema.

To infer the Pinot schema from Avro schema, you can use a command like this:

bin/pinot-admin.sh AvroSchemaToPinotSchema \
  -timeColumnName fields.hoursSinceEpoch \
  -avroSchemaFile /tmp/test.avsc \
  -pinotSchemaName myTable \
  -outputDir /tmp/test \
  -fieldsToUnnest entries

Note you can input configurations like fieldsToUnnest similar to the ones in complexTypeConfig. And this will simulate the complex-type handling rules on the Avro schema and output the Pinot schema in the file specified in outputDir.

Similarly, you can use the command like the following to infer the Pinot schema from a file of JSON objects.

bin/pinot-admin.sh JsonToPinotSchema \
  -timeColumnName hoursSinceEpoch \
  -jsonFile /tmp/test.json \
  -pinotSchemaName myTable \
  -outputDir /tmp/test \
  -fieldsToUnnest payload.commits

You can check out an example of this run in this PR.

Apache Pinot™ is a distributed OLAP database designed to serve real-time, user-facing use cases, which means handling large volumes of data and many concurrent queries with very low query latencies. Pinot supports the following requirements:

• Ultra low-latency queries (as low as 10ms P95)

• High query concurrency (as many as 100,000 queries per second)

• High data freshness (streaming data available for query immediately upon ingestion)

• Large data volume (up to petabytes)

Distributed design principles

To accommodate large data volumes with stringent latency and concurrency requirements, Pinot is designed as a distributed database that supports the following requirements:

• Highly available: Pinot has no single point of failure. When tables are configured for replication, and a node goes down, the cluster is able to continue processing queries.

• Horizontally scalable: Operators can scale a Pinot cluster by adding new nodes when the workload increases. There are even two node types ( and ) to scale query volume, query complexity, and data size independently.

• Immutable data: Pinot assumes all stored data is immutable, which helps simplify the parts of the system that handle data storage and replication. However, Pinot still supports upserts on streaming entity data and background purges of data to comply with data privacy regulations.

• Dynamic configuration changes: Operations like adding new tables, expanding a cluster, ingesting data, modifying an existing table, and adding indexes do not impact query availability or performance.

Core components

As described in the Pinot , Pinot has four node types:

Apache Helix and ZooKeeper

Distributed systems do not maintain themselves, and in fact require sophisticated scheduling and resource management to function. Pinot uses for this purpose. Helix exists as an independent project, but it was designed by the original creators of Pinot for Pinot's own cluster management purposes, so the architectures of the two systems are well-aligned. Helix takes the form of a process on the controller, plus embedded agents on the brokers and servers. It uses as a fault-tolerant, strongly consistent, durable state store.

Helix maintains a picture of the intended state of the cluster, including the number of servers and brokers, the configuration and schema of all tables, connections to streaming ingest sources, currently executing batch ingestion jobs, the assignment of table segments to the servers in the cluster, and more. All of these configuration items are potentially mutable quantities, since operators routinely change table schemas, add or remove streaming ingest sources, begin new batch ingestion jobs, and so on. Additionally, physical cluster state may change as servers and brokers fail or suffer network partition. Helix works constantly to drive the actual state of the cluster to match the intended state, pushing configuration changes to brokers and servers as needed.

There are three physical node types in a Helix cluster:

• Participant: These nodes do things, like store data or perform computation. Participants host resources, which are Helix's fundamental storage abstraction. Because Pinot servers store segment data, they are participants.

• Spectator: These nodes see things, observing the evolving state of the participants through events pushed to the spectator. Because Pinot brokers need to know which servers host which segments, they are spectators.

• Controller: This node observes and manages the state of participant nodes. The controller is responsible for coordinating all state transitions in the cluster and ensures that state constraints are satisfied while maintaining cluster stability.

In addition, Helix defines two logical components to express its storage abstraction:

• Partition. A unit of data storage that lives on at least one participant. Partitions may be replicated across multiple participants. A Pinot segment is a partition.

• Resource. A logical collection of partitions, providing a single view over a potentially large set of data stored across a distributed system. A Pinot table is a resource.

In summary, the Pinot architecture maps onto Helix components as follows:

Helix uses ZooKeeper to maintain cluster state. ZooKeeper sends Helix spectators notifications of changes in cluster state (which correspond to changes in ZNodes). Zookeeper stores the following information about the cluster:

Zookeeper, as a first-class citizen of a Pinot cluster, may use the well-known ZNode structure for operations and troubleshooting purposes. Be advised that this structure can change in future Pinot releases.

Controller

The Pinot schedules and re-schedules resources in a Pinot cluster when metadata changes or a node fails. As an Apache Helix Controller, it schedules the resources that comprise the cluster and orchestrates connections between certain external processes and cluster components (e.g., ingest of and ). It can be deployed as a single process on its own server or as a group of redundant servers in an active/passive configuration.

Fault tolerance

Only one controller can be active at a time, so when multiple controllers are present in a cluster, they elect a leader. When that controller instance becomes unavailable, the remaining instances automatically elect a new leader. Leader election is achieved using Apache Helix. A Pinot cluster can serve queries without an active controller, but it can't perform any metadata-modifying operations, like adding a table or consuming a new segment.

Controller REST interface

The controller provides a REST interface that allows read and write access to all logical storage resources (e.g., servers, brokers, tables, and segments). See for more information on the web-based admin tool.

Broker

The responsibility is to route queries to the appropriate instances, or in the case of multi-stage queries, to compute a complete query plan and distribute it to the servers required to execute it. The broker collects and merges the responses from all servers into a final result, then sends the result back to the requesting client. The broker exposes an HTTP endpoint that accepts SQL queries in JSON format and returns the response in JSON.

Each broker maintains a query routing table. The routing table maps segments to the servers that store them. (When replication is configured on a table, each segment is stored on more than one server.) The broker computes multiple routing tables depending on the configured strategy for a table. The default strategy is to balance the query load across all available servers.

Query processing

Every query processed by a broker uses the single-stage engine or the . For single-stage queries, the broker does the following:

• Computes query routes based on the routing strategy defined in the configuration.

• Computes the list of segments to query on each . (See for further details on this process.)

• Sends the query to each of those servers for local execution against their segments.

• Receives the results from each server and merges them.

• Sends the query result to the client.

For multi-stage queries, the broker performs the following:

• Computes a query plan that runs on multiple sets of servers. The servers selected for the first stage are selected based on the segments required to execute the query, which are determined in a process similar to single-stage queries.

• Sends the relevant portions of the query plan to one or more servers in the cluster for each stage of the query plan.

• The servers that received query plans each execute their part of the query. For more details on this process, read about the .

• The broker receives a complete result set from the final stage of the query, which is always a single server.

• The broker sends the query result to the client.

Server

host on locally attached storage and process queries on those segments. By convention, operators speak of "real-time" and "offline" servers, although there is no difference in the server process itself or even its configuration that distinguishes between the two. This is merely a convention reflected in the assignment strategy to confine the two different kinds of workloads to two groups of physical instances, since the performance-limiting factors differ between the two kinds of workloads. For example, offline servers might optimize for larger storage capacity, whereas real-time servers might optimize for memory and CPU cores.

Offline servers

Offline servers host segments created by ingesting batch data. The controller writes these segments to the offline server according to the table's replication factor and segment assignment strategy. Typically, the controller writes new segments to the , and affected servers download the segment from deep store. The controller then notifies brokers that a new segment exists, and is available to participate in queries.

Because offline tables tend to have long retention periods, offline servers tend to scale based on the size of the data they store.

Real-time servers

Real-time servers ingest data from streaming sources, like Apache Kafka®, Apache Pulsar®, or AWS Kinesis. Streaming data ends up in conventional segment files just like batch data, but is first accumulated in an in-memory data structure known as a consuming segment. Each message consumed from a streaming source is written immediately to the relevant consuming segment, and is available for query processing from the consuming segment immediately, since consuming segments participate in query processing as first-class citizens. Consuming segments get flushed to disk periodically based on a completion threshold, which can be calculated by row count, ingestion time, or segment size. A flushed segment on a real-time table is called a completed segment, and is functionally equivalent to a segment created during offline ingest.

Real-time servers tend to be scaled based on the rate at which they ingest streaming data.

Minion

A Pinot is an optional cluster component that executes background tasks on table data apart from the query processes performed by brokers and servers. Minions run on independent hardware resources, and are responsible for executing minion tasks as directed by the controller. Examples of minion tasks include converting batch data from a standard format like Avro or JSON into segment files to be loaded into an offline table, and rewriting existing segment files to purge records as required by data privacy laws like GDPR. Minion tasks can run once or be scheduled to run periodically.

Minions isolate the computational burden of out-of-band data processing from the servers. Although a Pinot cluster can function without minions, they are typically present to support routine tasks like ingesting batch data.

Data ingestion overview

Pinot exist in two varieties: offline (or batch) and real-time. Offline tables contain data from batch sources like CSV, Avro, or Parquet files, and real-time tables contain data from streaming sources like like Apache Kafka®, Apache Pulsar®, or AWS Kinesis.

Offline (batch) ingest

Pinot ingests batch data using an , which follows a process like this:

1. The job transforms a raw data source (such as a CSV file) into . This is a potentially complex process resulting in a file that is typically several hundred megabytes in size.

2. The job then transfers the file to the cluster's and notifies the that a new segment exists.

3. The controller (in its capacity as a Helix controller) updates the ideal state of the cluster in its cluster metadata map.

4. The controller then assigns the segment to one or more "offline" (depending on replication factor) and notifies them that new segments are available.

5. The servers then download the newly created segments directly from the deep store.

6. The cluster's brokers, which watch for state changes as Helix spectators, detect the new segments and update their segment routing tables accordingly. The cluster is now able to query the new offline segments.

Real-time ingest

Ingestion is established at the time a real-time table is created, and continues as long as the table exists. When the controller receives the metadata update to create a new real-time table, the table configuration specifies the source of the streaming input data—often a topic in a Kafka cluster. This kicks off a process like this:

1. The controller picks one or more servers to act as direct consumers of the streaming input source.

2. The controller creates consuming segments for the new table. It does this by creating an entry in the global metadata map for a new consuming segment for each of the real-time servers selected in step 1.

3. Through Helix functionality on the controller and the relevant servers, the servers proceed to create consuming segments in memory and establish a connection to the streaming input source. When this input source is Kafka, each server acts as a Kafka consumer directly, with no other components involved in the integration.

4. Through Helix functionality on the controller and all of the cluster's brokers, the brokers become aware of the consuming segments, and begin including them in query routing immediately.

5. The consuming servers simultaneously begin consuming messages from the streaming input source, storing them in the consuming segment.

6. When a server decides its consuming segment is complete, it commits the in-memory consuming segment to a conventional segment file, uploads it to the deep store, and notifies the controller.

7. The controller and the server create a new consuming segment to continue real-time ingestion.

8. The controller marks the newly committed segment as online. Brokers then discover the new segment through the Helix notification mechanism, allowing them to route queries to it in the usual fashion.

How does Apache Pinot use deep storage?

When data is pushed to Apache Pinot, Pinot makes a backup copy of the data and stores it on the configured deep-storage (S3/GCP/ADLS/NFS/etc). This copy is stored as tar.gz Pinot segments. Note, that Pinot servers keep a (untarred) copy of the segments on their local disk as well. This is done for performance reasons.

How does Pinot use Zookeeper?

Pinot uses Apache Helix for cluster management, which in turn is built on top of Zookeeper. Helix uses Zookeeper to store the cluster state, including Ideal State, External View, Participants, and so on. Pinot also uses Zookeeper to store information such as Table configurations, schemas, Segment Metadata, and so on.

Why am I getting "Could not find or load class" error when running Quickstart using 0.8.0 release?

Check the JDK version you are using. You may be getting this error if you are using an older version than the current Pinot binary release was built on. If so, you have two options: switch to the same JDK release as Pinot was built with or download the for the Pinot release and it locally.

How to change TimeZone when running Pinot?

Pinot uses the local timezone by default. To change the timezone, set the pinot.timezone value in the .conf config file. It is set once for all Pinot components (Controller, Broker, Server, Minion). See the following sample configuration:

Pinot tables are stored in one or more independent shards called segments. A small table may be contained by a single segment, but Pinot lets tables grow to an unlimited number of segments. There are different processes for creating segments (see ingestion). Segments have time-based partitions of table data, and are stored on Pinot servers that scale horizontally as needed for both storage and computation.

Pinot achieves this by breaking the data into smaller chunks known as segments (similar to shards/partitions in relational databases). Segments can be seen as time-based partitions.

A segment is a horizontal shard representing a chunk of table data with some number of rows. The segment stores data for all columns of the table. Each segment packs the data in a columnar fashion, along with the dictionaries and indices for the columns. The segment is laid out in a columnar format so that it can be directly mapped into memory for serving queries.

Columns can be single or multi-valued and the following types are supported: STRING, BOOLEAN, INT, LONG, FLOAT, DOUBLE, TIMESTAMP or BYTES. Only single-valued BIG_DECIMAL data type is supported.

Columns may be declared to be metric or dimension (or specifically as a time dimension) in the schema. Columns can have default null values. For example, the default null value of a integer column can be 0. The default value for bytes columns must be hex-encoded before it's added to the schema.

Pinot uses dictionary encoding to store values as a dictionary ID. Columns may be configured to be “no-dictionary” column in which case raw values are stored. Dictionary IDs are encoded using minimum number of bits for efficient storage (e.g. a column with a cardinality of 3 will use only 2 bits for each dictionary ID).

A forward index is built for each column and compressed for efficient memory use. In addition, you can optionally configure inverted indices for any set of columns. Inverted indices take up more storage, but improve query performance. Specialized indexes like Star-Tree index are also supported. For more details, see Indexing.

Creating a segment

Once the table is configured, we can load some data. Loading data involves generating pinot segments from raw data and pushing them to the pinot cluster. Data can be loaded in batch mode or streaming mode. For more details, see the ingestion overview page.

Load data in batch

Prerequisites

1. Set up a cluster

2. Create broker and server tenants

3. Create an offline table

Below are instructions to generate and push segments to Pinot via standalone scripts. For a production setup, you should use frameworks such as Hadoop or Spark. For more details on setting up data ingestion jobs, see Import Data.

Job Spec YAML

To generate a segment, we need to first create a job spec YAML file. This file contains all the information regarding data format, input data location, and pinot cluster coordinates. Note that this assumes that the controller is RUNNING to fetch the table config and schema. If not, you will have to configure the spec to point at their location. For full configurations, see Ingestion Job Spec.

executionFrameworkSpec:
  name: 'standalone'
  segmentGenerationJobRunnerClassName: 'org.apache.pinot.plugin.ingestion.batch.standalone.SegmentGenerationJobRunner'
  segmentTarPushJobRunnerClassName: 'org.apache.pinot.plugin.ingestion.batch.standalone.SegmentTarPushJobRunner'
  segmentUriPushJobRunnerClassName: 'org.apache.pinot.plugin.ingestion.batch.standalone.SegmentUriPushJobRunner'

jobType: SegmentCreationAndTarPush
inputDirURI: 'examples/batch/baseballStats/rawdata'
includeFileNamePattern: 'glob:**/*.csv'
excludeFileNamePattern: 'glob:**/*.tmp'
outputDirURI: 'examples/batch/baseballStats/segments'
overwriteOutput: true

pinotFSSpecs:
  - scheme: file
    className: org.apache.pinot.spi.filesystem.LocalPinotFS

recordReaderSpec:
  dataFormat: 'csv'
  className: 'org.apache.pinot.plugin.inputformat.csv.CSVRecordReader'
  configClassName: 'org.apache.pinot.plugin.inputformat.csv.CSVRecordReaderConfig'
  configs:

tableSpec:
  tableName: 'baseballStats'
  schemaURI: 'http://localhost:9000/tables/baseballStats/schema'
  tableConfigURI: 'http://localhost:9000/tables/baseballStats'

segmentNameGeneratorSpec:

pinotClusterSpecs:
  - controllerURI: 'http://localhost:9000'

pushJobSpec:
  pushParallelism: 2
  pushAttempts: 2
  pushRetryIntervalMillis: 1000

Create and push segment

To create and push the segment in one go, use the following:

docker run \
    --network=pinot-demo \
    --name pinot-data-ingestion-job \
    ${PINOT_IMAGE} LaunchDataIngestionJob \
    -jobSpecFile examples/docker/ingestion-job-specs/airlineStats.yaml

SegmentGenerationJobSpec:
!!org.apache.pinot.spi.ingestion.batch.spec.SegmentGenerationJobSpec
excludeFileNamePattern: null
executionFrameworkSpec: {extraConfigs: null, name: standalone, segmentGenerationJobRunnerClassName: org.apache.pinot.plugin.ingestion.batch.standalone.SegmentGenerationJobRunner,
  segmentTarPushJobRunnerClassName: org.apache.pinot.plugin.ingestion.batch.standalone.SegmentTarPushJobRunner,
  segmentUriPushJobRunnerClassName: org.apache.pinot.plugin.ingestion.batch.standalone.SegmentUriPushJobRunner}
includeFileNamePattern: glob:**/*.avro
inputDirURI: examples/batch/airlineStats/rawdata
jobType: SegmentCreationAndTarPush
outputDirURI: examples/batch/airlineStats/segments
overwriteOutput: true
pinotClusterSpecs:
- {controllerURI: 'http://pinot-controller:9000'}
pinotFSSpecs:
- {className: org.apache.pinot.spi.filesystem.LocalPinotFS, configs: null, scheme: file}
pushJobSpec: {pushAttempts: 2, pushParallelism: 1, pushRetryIntervalMillis: 1000,
  segmentUriPrefix: null, segmentUriSuffix: null}
recordReaderSpec: {className: org.apache.pinot.plugin.inputformat.avro.AvroRecordReader,
  configClassName: null, configs: null, dataFormat: avro}
segmentNameGeneratorSpec: null
tableSpec: {schemaURI: 'http://pinot-controller:9000/tables/airlineStats/schema',
  tableConfigURI: 'http://pinot-controller:9000/tables/airlineStats', tableName: airlineStats}

Trying to create instance for class org.apache.pinot.plugin.ingestion.batch.standalone.SegmentGenerationJobRunner
Initializing PinotFS for scheme file, classname org.apache.pinot.spi.filesystem.LocalPinotFS
Finished building StatsCollector!
Collected stats for 403 documents
Created dictionary for INT column: FlightNum with cardinality: 386, range: 14 to 7389
Using fixed bytes value dictionary for column: Origin, size: 294
Created dictionary for STRING column: Origin with cardinality: 98, max length in bytes: 3, range: ABQ to VPS
Created dictionary for INT column: Quarter with cardinality: 1, range: 1 to 1
Created dictionary for INT column: LateAircraftDelay with cardinality: 50, range: -2147483648 to 303
......
......
Pushing segment: airlineStats_OFFLINE_16085_16085_29 to location: http://pinot-controller:9000 for table airlineStats
Sending request: http://pinot-controller:9000/v2/segments?tableName=airlineStats to controller: a413b0013806, version: Unknown
Response for pushing table airlineStats segment airlineStats_OFFLINE_16085_16085_29 to location http://pinot-controller:9000 - 200: {"status":"Successfully uploaded segment: airlineStats_OFFLINE_16085_16085_29 of table: airlineStats"}
Pushing segment: airlineStats_OFFLINE_16084_16084_30 to location: http://pinot-controller:9000 for table airlineStats
Sending request: http://pinot-controller:9000/v2/segments?tableName=airlineStats to controller: a413b0013806, version: Unknown
Response for pushing table airlineStats segment airlineStats_OFFLINE_16084_16084_30 to location http://pinot-controller:9000 - 200: {"status":"Successfully uploaded segment: airlineStats_OFFLINE_16084_16084_30 of table: airlineStats"}

bin/pinot-admin.sh LaunchDataIngestionJob \
    -jobSpecFile examples/batch/airlineStats/ingestionJobSpec.yaml

Alternately, you can separately create and then push, by changing the jobType to SegmentCreation or SegmenTarPush.

Templating Ingestion Job Spec

The Ingestion job spec supports templating with Groovy Syntax.

This is convenient if you want to generate one ingestion job template file and schedule it on a daily basis with extra parameters updated daily.

e.g. you could set inputDirURI with parameters to indicate the date, so that the ingestion job only processes the data for a particular date. Below is an example that templates the date for input and output directories.

inputDirURI: 'examples/batch/airlineStats/rawdata/${year}/${month}/${day}'
outputDirURI: 'examples/batch/airlineStats/segments/${year}/${month}/${day}'

You can pass in arguments containing values for ${year}, ${month}, ${day} when kicking off the ingestion job: -values $param=value1 $param2=value2...

docker run \
    --network=pinot-demo \
    --name pinot-data-ingestion-job \
    ${PINOT_IMAGE} LaunchDataIngestionJob \
    -jobSpecFile examples/docker/ingestion-job-specs/airlineStats.yaml
    -values year=2014 month=01 day=03

This ingestion job only generates segments for date 2014-01-03

Load data in streaming

Prerequisites

1. Set up a cluster

2. Create broker and server tenants

3. Create a real-time table and set up a real-time stream

Below is an example of how to publish sample data to your stream. As soon as data is available to the real-time stream, it starts getting consumed by the real-time servers.

Kafka

docker run \
  --network pinot-demo \
  --name=loading-airlineStats-data-to-kafka \
  ${PINOT_IMAGE} StreamAvroIntoKafka \
  -avroFile examples/stream/airlineStats/sample_data/airlineStats_data.avro \
  -kafkaTopic flights-realtime -kafkaBrokerList kafka:9092 -zkAddress pinot-zookeeper:2181/kafka

bin/pinot-admin.sh StreamAvroIntoKafka \
  -avroFile examples/stream/airlineStats/sample_data/airlineStats_data.avro \
  -kafkaTopic flights-realtime -kafkaBrokerList localhost:19092 -zkAddress localhost:2191/kafka

Pinot supports consuming data from Apache Pulsar via the pinot-pulsar plugin. You need to enable this plugin so that Pulsar specific libraries are present in the classpath.

Enable the Pulsar plugin with the following config at the time of Pinot setup: -Dplugins.include=pinot-pulsar

Set up Pulsar table

Here is a sample Pulsar stream config. You can use the streamConfigs section from this sample and make changes for your corresponding table.

{
  "tableName": "pulsarTable",
  "tableType": "REALTIME",
  "segmentsConfig": {
    "timeColumnName": "timestamp",
    "replicasPerPartition": "1"
  },
  "tenants": {},
  "tableIndexConfig": {
    "loadMode": "MMAP",
    "streamConfigs": {
      "streamType": "pulsar",
      "stream.pulsar.topic.name": "<your pulsar topic name>",
      "stream.pulsar.bootstrap.servers": "pulsar://localhost:6650,pulsar://localhost:6651",
      "stream.pulsar.consumer.prop.auto.offset.reset" : "smallest",
      "stream.pulsar.consumer.type": "lowlevel",
      "stream.pulsar.fetch.timeout.millis": "30000",
      "stream.pulsar.decoder.class.name": "org.apache.pinot.plugin.inputformat.json.JSONMessageDecoder",
      "stream.pulsar.consumer.factory.class.name": "org.apache.pinot.plugin.stream.pulsar.PulsarConsumerFactory",
      "realtime.segment.flush.threshold.rows": "1000000",
      "realtime.segment.flush.threshold.time": "6h"
    }
  },
  "metadata": {
    "customConfigs": {}
  }
}

Pulsar configuration options

You can change the following Pulsar specifc configurations for your tables

Authentication

The Pinot-Pulsar connector supports authentication using security tokens. To generate a token, follow the instructions in Pulsar documentation. Once generated, add the following property to streamConfigs to add an authentication token for each request:

"stream.pulsar.authenticationToken":"your-auth-token"

OAuth2 Authentication

The Pinot-Pulsar connector supports authentication using OAuth2, for example, if connecting to a StreamNative Pulsar cluster. For more information, see how to Configure OAuth2 authentication in Pulsar clients. Once configured, you can add the following properties to streamConfigs:

"stream.pulsar.issuerUrl": "https://auth.streamnative.cloud"
"stream.pulsar.credsFilePath": "file:///path/to/private_creds_file
"stream.pulsar.audience": "urn:sn:pulsar:test:test-cluster"

TLS support

The Pinot-pulsar connector also supports TLS for encrypted connections. You can follow the official pulsar documentation to enable TLS on your pulsar cluster. Once done, you can enable TLS in pulsar connector by providing the trust certificate file location generated in the previous step.

"stream.pulsar.tlsTrustCertsFilePath": "/path/to/ca.cert.pem"

Also, make sure to change the brokers url from pulsar://localhost:6650 to pulsar+ssl://localhost:6650 so that secure connections are used.

For other table and stream configurations, you can headover to Table configuration Reference

Supported Pulsar versions

Pinot currently relies on Pulsar client version 2.7.2. Make sure the Pulsar broker is compatible with the this client version.

Extract record headers as Pinot table columns

Pinot's Pulsar connector supports automatically extracting record headers and metadata into the Pinot table columns. Pulsar supports a large amount of per-record metadata. Reference the official Pulsar documentation for the meaning of the metadata fields.

The following table shows the mapping for record header/metadata to Pinot table column names:

In order to enable the metadata extraction in a Pulsar table, set the stream config metadata.populate to true. The fields eventTime, publishTime, brokerPublishTime, and key are populated by default. If you would like to extract additional fields from the Pulsar Message, populate the metadataFields config with a comma separated list of fields to populate. The fields are referenced by the field name in the Pulsar Message. For example, setting:

"streamConfigs": {
  ...
        "stream.pulsar.metadata.populate": "true",
        "stream.pulsar.metadata.fields": "messageId,messageIdBytes,eventTime,topicName",
  ...
}

Will make the __metadata$messageId, __metadata$messageBytes, __metadata$eventTime, and __metadata$topicName, fields available for mapping to columns in the Pinot schema.

In addition to this, if you want to use any of these columns in your table, you have to list them explicitly in your table's schema.

For example, if you want to add only the offset and key as dimension columns in your Pinot table, it can listed in the schema as follows:

  "dimensionFieldSpecs": [
    {
      "name": "__key",
      "dataType": "STRING"
    },
    {
      "name": "__metadata$messageId",
      "dataType": "STRING"
    },
    ...
  ],

Once the schema is updated, these columns are similar to any other pinot column. You can apply ingestion transforms and / or define indexes on them.

Enable the Google Cloud Storage using the pinot-gcs plugin. In the controller or server, add the config:

-Dplugins.dir=/opt/pinot/plugins -Dplugins.include=pinot-gcs

GCP file systems provides the following options:

• projectId - The name of the Google Cloud Platform project under which you have created your storage bucket.

• gcpKey - Location of the json file containing GCP keys. You can refer Creating and managing service account keys to download the keys.

Each of these properties should be prefixed by pinot.[node].storage.factory.class.gs. where node is either controller or server depending on the configuration, like this:

pinot.controller.storage.factory.class.gs.projectId=test-project

Examples

Job spec

executionFrameworkSpec:
    name: 'standalone'
    segmentGenerationJobRunnerClassName: 'org.apache.pinot.plugin.ingestion.batch.standalone.SegmentGenerationJobRunner'
    segmentTarPushJobRunnerClassName: 'org.apache.pinot.plugin.ingestion.batch.standalone.SegmentTarPushJobRunner'
    segmentUriPushJobRunnerClassName: 'org.apache.pinot.plugin.ingestion.batch.standalone.SegmentUriPushJobRunner'
jobType: SegmentCreationAndTarPush
inputDirURI: 'gs://my-bucket/path/to/input/directory/'
outputDirURI: 'gs://my-bucket/path/to/output/directory/'
overwriteOutput: true
pinotFSSpecs:
    - scheme: gs
      className: org.apache.pinot.plugin.filesystem.GcsPinotFS
      configs:
        projectId: 'my-project'
        gcpKey: 'path-to-gcp json key file'
recordReaderSpec:
    dataFormat: 'csv'
    className: 'org.apache.pinot.plugin.inputformat.csv.CSVRecordReader'
    configClassName: 'org.apache.pinot.plugin.inputformat.csv.CSVRecordReaderConfig'
tableSpec:
    tableName: 'students'
pinotClusterSpecs:
    - controllerURI: 'http://localhost:9000'
