Advanced Pinot Setup

Start Pinot components (scripts or docker images)

Set up Pinot by starting each component individually

Start Pinot Components using docker

Prerequisites

If running locally, ensure your docker cluster has enough resources, below is a sample config.

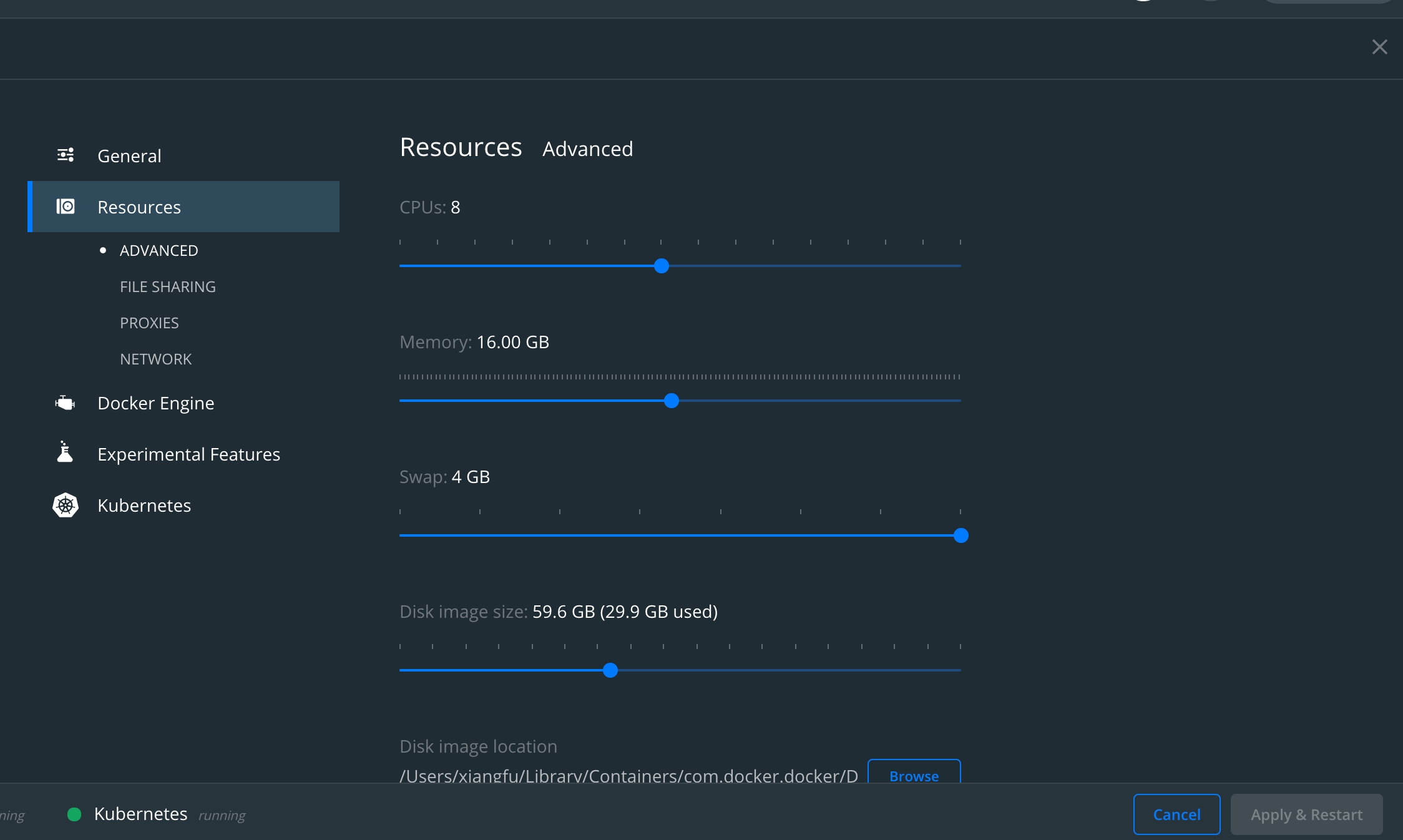

Sample Docker resources

Pull Docker image

You can try out pre-built Pinot all-in-one Docker image.

(Optional) You can also follow the instructions here to build your own images.

0. Create a network

Create an isolated bridge network in Docker.

1. Start Zookeeper

Start Zookeeper in daemon.

Start ZKUI to browse Zookeeper data at http://localhost:9090.

2. Start Pinot Controller

Start Pinot Controller in daemon and connect to Zookeeper.

3. Start Pinot Broker

Start Pinot Broker in daemon and connect to Zookeeper.

4. Start Pinot Server

Start Pinot Server in daemon and connect to Zookeeper.

Now all Pinot related components are started as an empty cluster.

You can run below command to check container status.

Sample Console Output

Start Pinot Using Config Files

Often times we need to customized the setup of Pinot components. Hence user can compile a config file and use it to start Pinot components.

Below are the examples config files and sample command to start Pinot.

Pinot Controller

Below is a sample pinot-controller.conf used in HelmChart setup.

In order to run Pinot Controller, the command is:

Configure Controller

Below are some configurations you can set in Pinot Controller. You can head over to Controller for complete list of available configs.

Config Name
Description
Default Value

controller.helix.cluster.name

Pinot Cluster name

PinotCluster

controller.host

Pinot Controller Host

Required if config pinot.set.instance.id.to.hostname is false.

pinot.set.instance.id.to.hostname

When enabled, use server hostname to infer controller.host

false

controller.port

Pinot Controller Port

9000

controller.vip.host

The VIP hostname used to set the download URL for segments

${controller.host}

controller.vip.port

The VIP port used to set the download URL for segments

${controller.port}

controller.data.dir

Directory to host segment data

${java.io.tmpdir}/PinotController

controller.zk.str

Zookeeper URL

localhost:2181

cluster.tenant.isolation.enable

Enable Tenant Isolation, default is single tenant cluster

true

Pinot Broker

Below is a sample pinot-broker.conf used in HelmChart setup.

In order to run Pinot Broker, the command is:

Configure Broker

Below are some configurations you can set in Pinot Broker. You can head over to Broker for complete list of available configs.

Config Name
Description
Default Value

instanceId

Unique id to register Pinot Broker in the cluster.

BROKER_${BROKER_HOST}_${pinot.broker.client.queryPort}

pinot.set.instance.id.to.hostname

When enabled, use server hostname to set ${BROKER_HOST} in above config, else use IP address.

false

pinot.broker.client.queryPort

Port to query Pinot Broker

8099

pinot.broker.timeoutMs

Timeout for Broker Query in Milliseconds

10000

pinot.broker.enable.query.limit.override

Configuration to enable Query LIMIT Override to protect Pinot Broker and Server from fetch too many records back.

false

pinot.broker.query.response.limit

When config pinot.broker.enable.query.limit.override is enabled, reset limit for selection query if it exceeds this value.

2147483647

pinot.broker.startup.minResourcePercent

Configuration to consider the broker ServiceStatus as being STARTED if the percent of resources (tables) that are ONLINE for this this broker has crossed the threshold percentage of the total number of tables that it is expected to serve

100.0

Pinot Server

Below is a sample pinot-server.conf used in HelmChart setup.

In order to run Pinot Server, the command is:

Configure Server

Below are some outstanding configurations you can set in Pinot Server. You can head over to Server for complete list of available configs.

Config Name
Description
Default Value

instanceId

Unique id to register Pinot Server in the cluster.

Server_${SERVER_HOST}_${pinot.server.netty.port}

pinot.set.instance.id.to.hostname

When enabled, use server hostname to set ${SERVER_HOST} in above config, else use IP address.

false

pinot.server.netty.port

Port to query Pinot Server

8098

pinot.server.adminapi.port

Port for Pinot Server Admin UI

8097

pinot.server.instance.dataDir

Directory to hold all the data

${java.io.tmpDir}/PinotServer/index

pinot.server.instance.segmentTarDir

Directory to hold temporary segments downloaded from Controller or Deep Store

${java.io.tmpDir}/PinotServer/segmentTar

pinot.server.query.executor.timeout

Timeout for Server to process Query in Milliseconds

15000

Create and Configure table

A TABLE in regular database world is represented as <TABLE>_OFFLINE and/or <TABLE>_REALTIME in Pinot depending on the ingestion mode (batch, real-time, hybrid)

See examples for all possible batch/streaming tables.

Batch Table Creation

See Batch Tables for table configuration details and how to customize it.

Sample Console Output

Automatically add an inverted index to your batch table

By default, the inverted index type is the only type of index that isn't created automatically during segment generation. Instead, they are generated when the segments are loaded on the server. But, waiting to build indexes until load time increases the startup time and takes up resources with every new segment push, which increases the time for other operations such as rebalance.

To automatically create an inverted index during segment generation, add an entry to your table index config in the table configuration file.

This setting works with batch (offline) tables.

When set to true, Pinot creates an inverted index for the columns that you specify in the invertedIndexColumns list in the table configuration.

This setting is false by default.

Set createInvertedIndexDuringSegmentGeneration to true in your table config, as follows:

When you update this setting in your table configuration, you must reload the table segment to apply the inverted index to all existing segments.

Streaming Table Creation

See Streaming Tables for table configuration details and how to customize it.

Start Kafka

Create a Kafka Topic

Create a Streaming table

Sample output

Use sortedColumn with streaming tables

For streaming tables, you can use a sorted index with sortedColumn to sort data when generating segments as the segment is created. See Real-time tables for more information.

A sorted forward index can be used as an inverted index with better performance, but with the limitation that the search is only applied to one column per table. See Sorted inverted index to learn more.

Load Data

Now that the table is configured, let's load some data. Data can be loaded in batch mode or streaming mode. See ingestion overview page for details. Loading data involves generating pinot segments from raw data and pushing them to the pinot cluster.

Load Data in Batch

User can always generate and push segments to Pinot via standalone scripts or using frameworks such as Hadoop or Spark. See this page for more details on setting up Data Ingestion Jobs.

Below example goes with the standalone mode.

Sample Console Output

JobSpec yaml file has all the information regarding data format, input data location and pinot cluster coordinates. Note that this assumes that the controller is RUNNING to fetch the table config and schema. If not, you will have to configure the spec to point at their location. See Pinot Ingestion Job for more details.

Load Data in Streaming

Kafka

Run below command to stream JSON data into Kafka topic: flights-realtime
