Running Pinot in Production

Requirements

You will need the following in order to run pinot in production:

  • Hardware for controller/broker/servers as per your load

  • Working installation of Zookeeper that Pinot can use. We recommend setting aside a path within zookpeer and including that path in pinot.controller.zkStr. Pinot will create its own cluster under this path (cluster name decided by pinot.controller.helixClusterName)

  • Shared storage mounted on controllers (if you plan to have multiple controllers for the same cluster). Alternatively, an implementation of PinotFS that the Pinot hosts have access to.

  • HTTP load balancers for spraying queries across brokers (or other mechanism to balance queries)

  • HTTP load balancers for spraying controller requests (e.g. segment push, or other controller APIs) or other mechanisms for distribution of these requests.

Deploying Pinot

In general, when deploying Pinot services, it is best to adhere to a specific ordering in which the various components should be deployed. This deployment order is recommended in case of the scenario that there might be protocol or other significant differences, the deployments go out in a predictable order in which failure due to these changes can be avoided.

The ordering is as follows:

  1. pinot-controller

  2. pinot-broker

  3. pinot-server

  4. pinot-minion

Managing Pinot

Pinot provides a web-based management console and a command-line utility (pinot-admin.sh) in order to help provision and manage pinot clusters.

Pinot Management Console

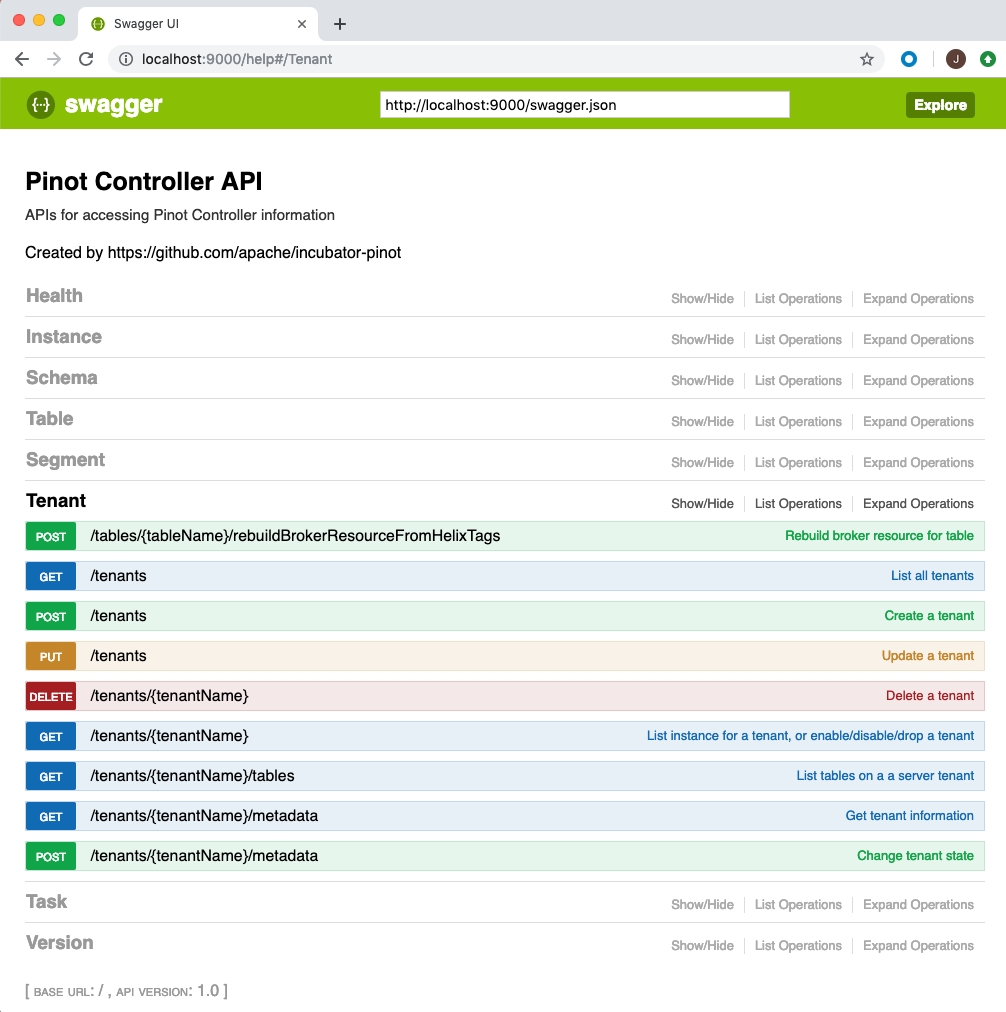

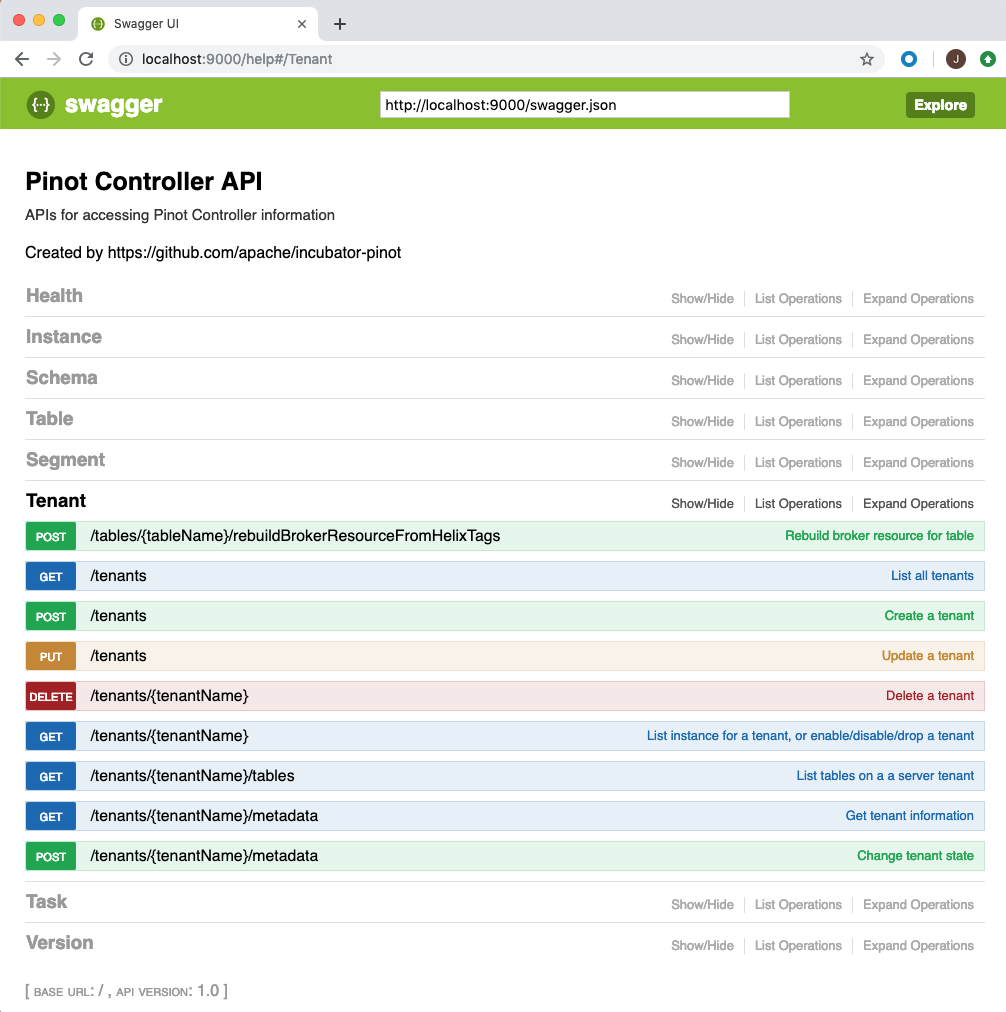

The web based management console allows operations on tables, tenants, segments and schemas. You can access the console via http://controller-host:port/help. The console also allows you to enter queries for interactive debugging. Here are some screen-shots from the console.

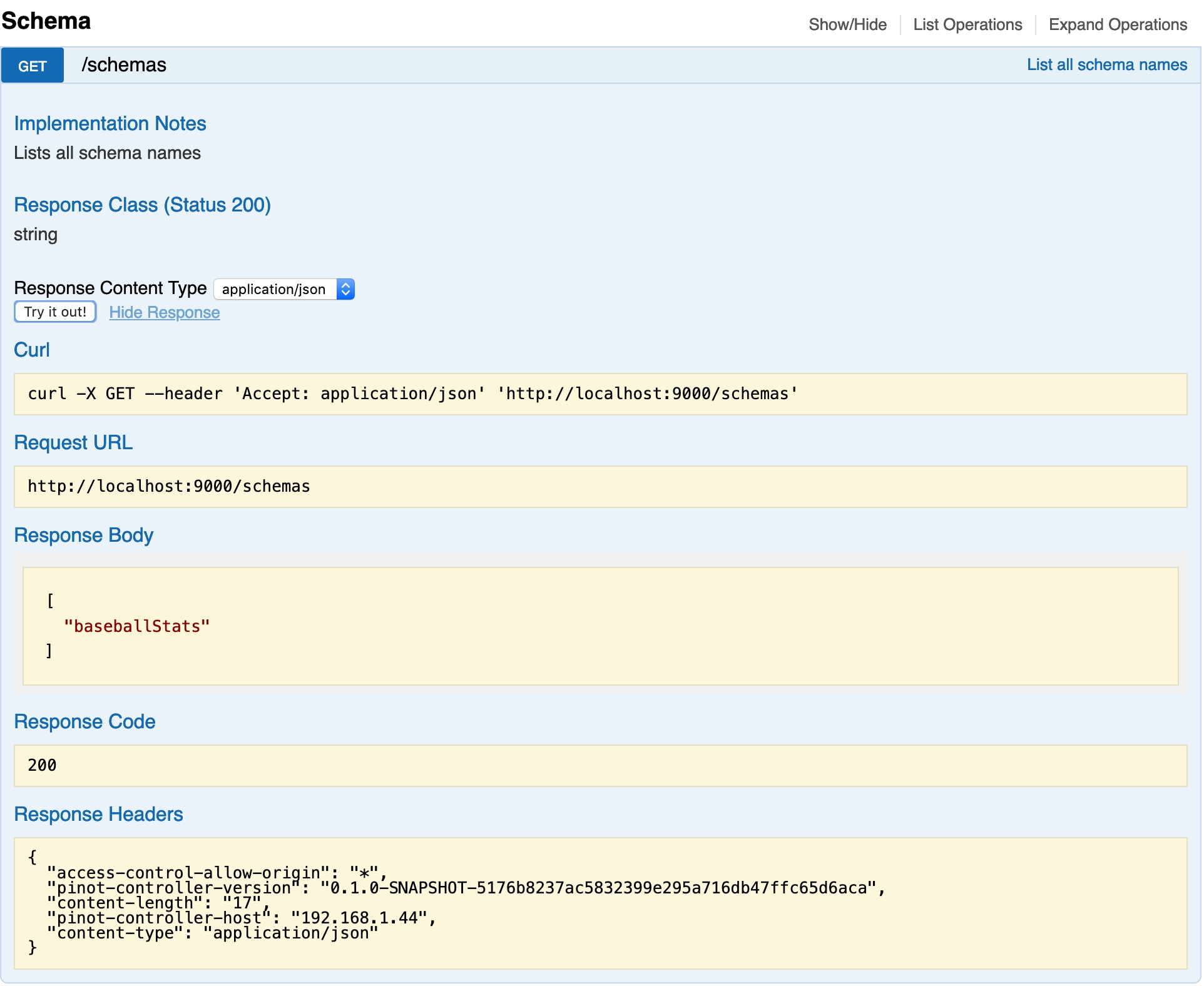

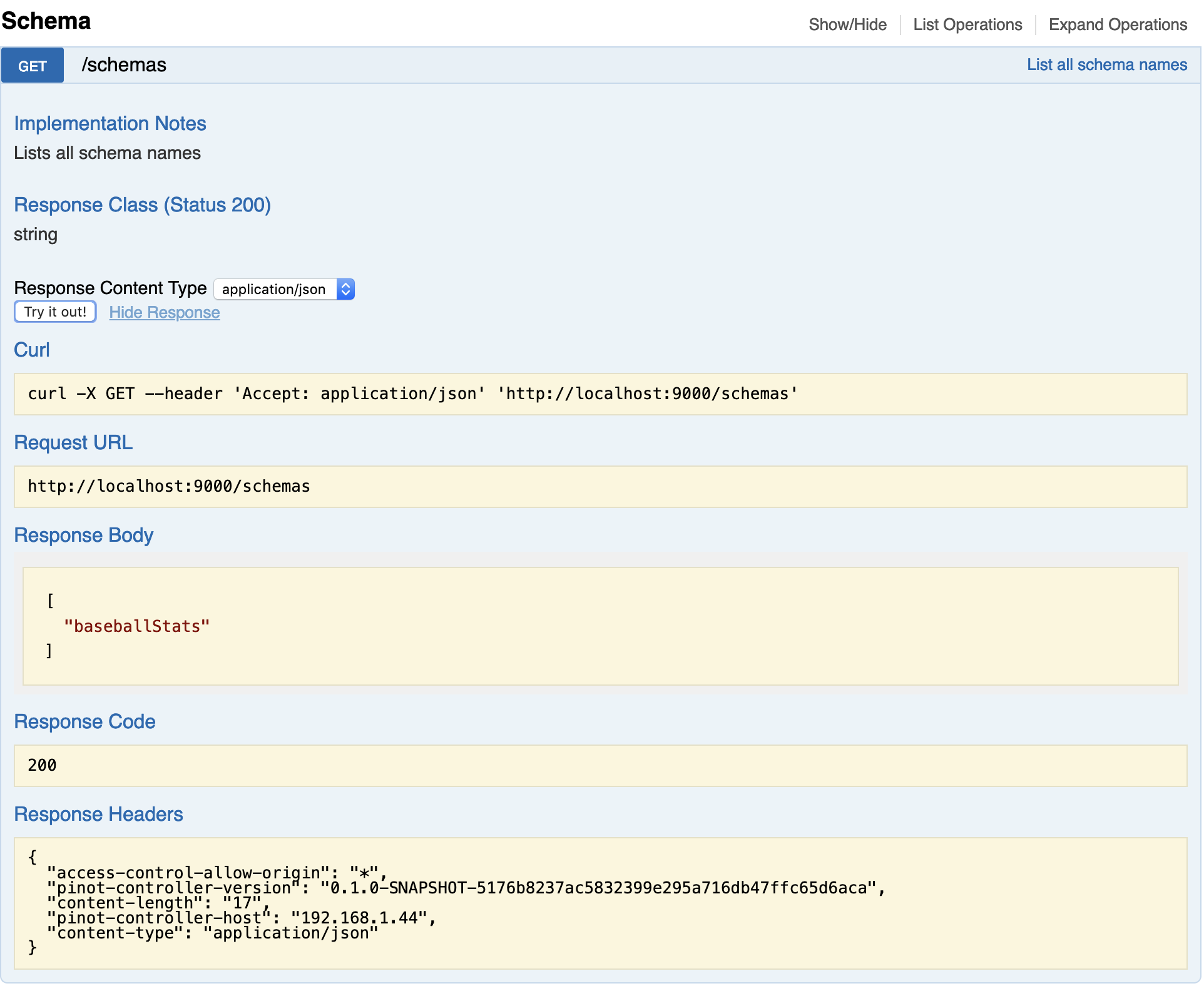

Listing all the schemas in the Pinot cluster:

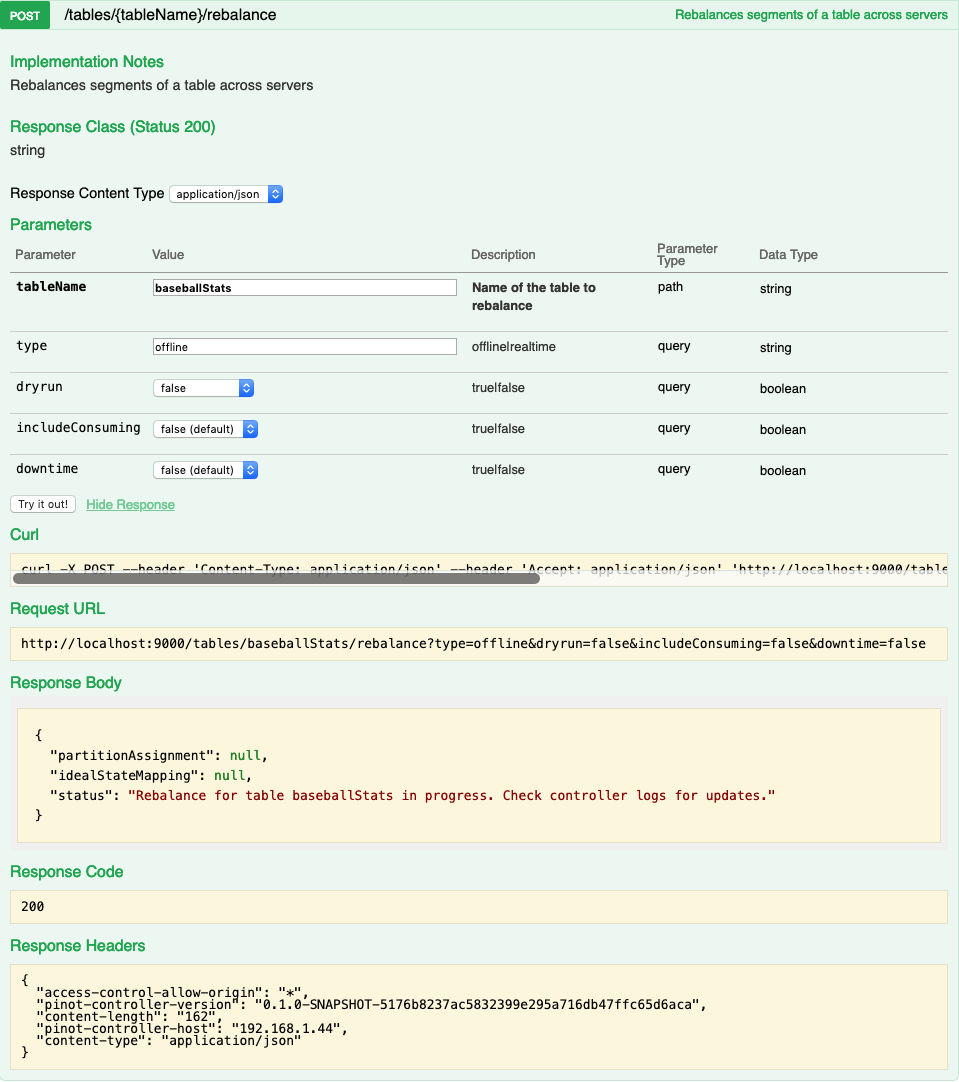

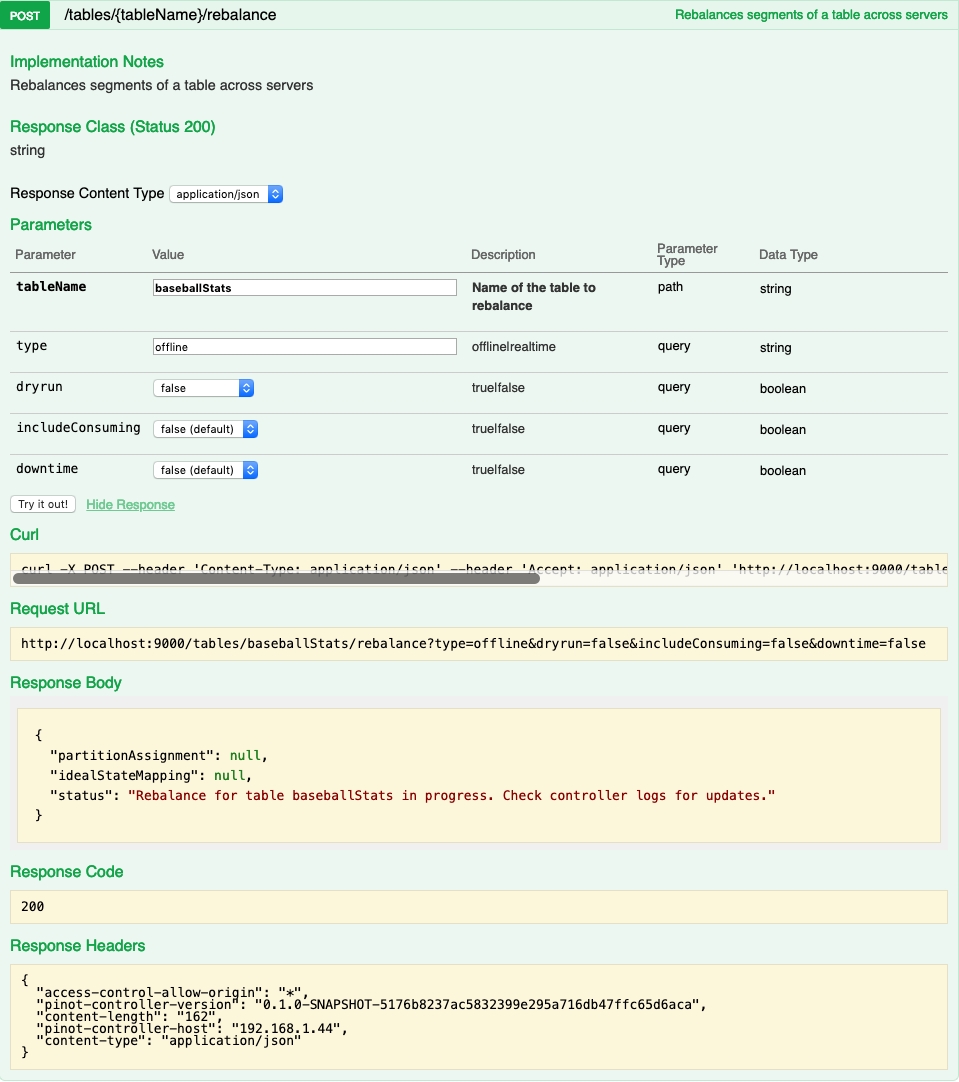

Rebalancing segments of a table:

Command line utility (pinot-admin.sh)

The command line utility (pinot-admin.sh) can be generated by running mvn install package -DskipTests -Pbin-dist in the directory in which you checked out Pinot.

Here is an example of invoking the command to create a pinot segment:

Here is an example of executing a query on a Pinot table:

Graceful Server Node Replacement

On a cloud based platform, node replacement is frequent. A common way to replace Pinot server is to assign the same instanceId to both the old node (ON) and the new node(NN). With this approach, ON usually needs to be stopped before starting the NN in order to prevent failures on taking the same Helix instanceId. NN startup used to take a long time because it needs to download and load all segments from deepstore or peer(s). Pinot has a graceful server node replacement support to make server replacement's overhead same as node restart.

To achieve graceful node replacement, the operators need to setup the workflow in following sequence:

  1. Start NN in the "pre-download" mode by adding one more parameter to StartServerCommand, like:

This step would let the NN download all immutable segments of the instanceId and make its disk state identical as the ON. (Refer to this PR for more details)

  1. Waiting for NN "pre-download" complete with one of following conditions:

  • Pre-download fully succeed

  • Pre-download partially succeed but have retried enough times

  • Pre-download failed in non-retriable mode

  • Already waited for a max time period

  1. Stop the ON

  2. Start the NN in the normal mode

Monitoring Pinot

Pinot exposes several metrics to monitor the service and ensure that pinot users are not experiencing issues. In this section we discuss some of the key metrics that are useful to monitor. A full list of metrics is available in the Metrics section.

Pinot Server

  • Missing Segments - NUM_MISSING_SEGMENTS

    • Number of missing segments that the broker queried for (expected to be on the server) but the server didn’t have. This can be due to retention or stale routing table.

  • Query latency - TOTAL_QUERY_TIME

    • Total time to take from receiving to finishing executing the query.

  • Query Execution Exceptions - QUERY_EXECUTION_EXCEPTIONS

    • The number of exception which might have occurred during query execution.

  • Real-time Consumption Status - LLC_PARTITION_CONSUMING

    • This gives a binary value based on whether low-level consumption is healthy (1) or unhealthy (0). It’s important to ensure at least a single replica of each partition is consuming.

  • Real-time Highest Offset Consumed - HIGHEST_STREAM_OFFSET_CONSUMED

    • The highest offset which has been consumed so far.

Pinot Broker

Pinot Controller

Many of the controller metrics include a table name and thus are dynamically generated in the code. The metrics below point to the classes which generate the corresponding metrics.

To get the real metric name, the easiest route is to spin up a controller instance, create a table with the name you want and look through the generated metrics.

Todo

Give a more detailed explanation of how metrics are generated, how to identify real metrics names and where to find them in the code.

  • Percent Segments Available - PERCENT_SEGMENTS_AVAILABLE

    • Percentage of complete online replicas in external view as compared to replicas in ideal state.

  • Segments in Error State - SEGMENTS_IN_ERROR_STATE

    • Number of segments in an ERROR state for a given table.

  • Last push delay - Generated in the ValidationMetrics class.

    • The time in hours since the last time an offline segment has been pushed to the controller.

  • Percent of replicas up - PERCENT_OF_REPLICAS

    • Percentage of complete online replicas in external view as compared to replicas in ideal state.

  • Table storage quota usage percent - TABLE_STORAGE_QUOTA_UTILIZATION

    • Shows how much of the table’s storage quota is currently being used, metric will a percentage of a the entire quota.
