  1. For Users
  2. APIs

Controller Admin API

PreviousQuery Response FormatNextController API Reference

Was this helpful?

The contains all the APIs that you will need to operate and manage your cluster. It provides a set of APIs for Pinot cluster management including health check, instances management, schema and table management, data segments management.

Note: The controller API's are primarily for admin tasks. Even though the UI console queries Pinot when running queries from the query console, use the for querying Pinot.

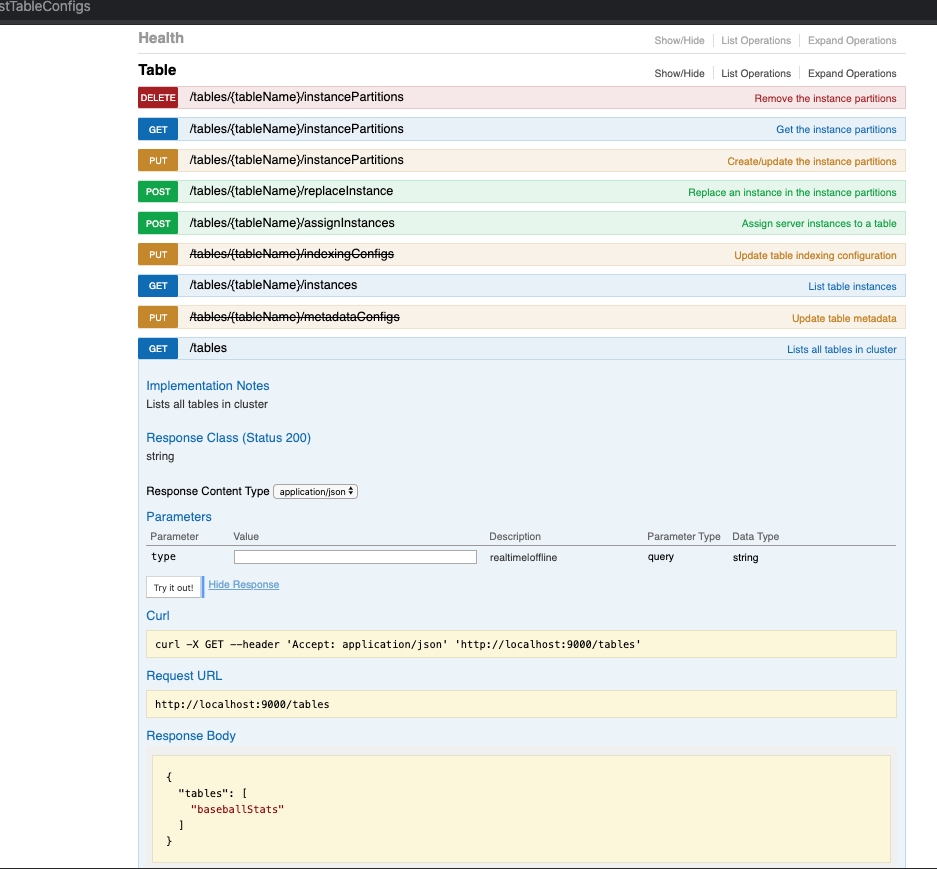

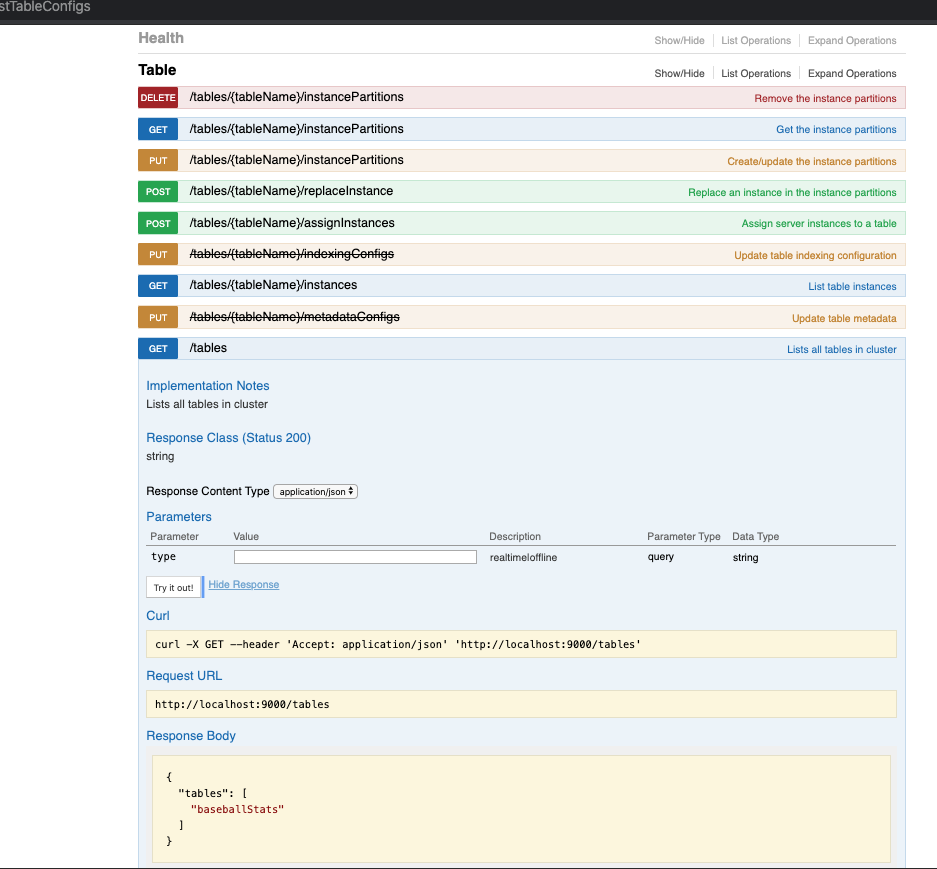

Let's check out the tables in this cluster by going to and click on Try it out!. We can see the baseballStats table listed here. We can also see the exact curl call made to the controller API.

{
  "schemaName": "baseballStats",
  "dimensionFieldSpecs": [
    {
      "name": "playerID",
      "dataType": "STRING"
    },
    {
      "name": "yearID",
      "dataType": "INT"
    },
    {
      "name": "teamID",
      "dataType": "STRING"
    },
    {
      "name": "league",
      "dataType": "STRING"
    },
    {
      "name": "playerName",
      "dataType": "STRING"
    }
  ],
  "metricFieldSpecs": [
    {
      "name": "playerStint",
      "dataType": "INT"
    },
    {
      "name": "numberOfGames",
      "dataType": "INT"
    },
    {
      "name": "numberOfGamesAsBatter",
      "dataType": "INT"
    },
    {
      "name": "AtBatting",
      "dataType": "INT"
    },
    {
      "name": "runs",
      "dataType": "INT"
    },
    {
      "name": "hits",
      "dataType": "INT"
    },
    {
      "name": "doules",
      "dataType": "INT"
    },
    {
      "name": "tripples",
      "dataType": "INT"
    },
    {
      "name": "homeRuns",
      "dataType": "INT"
    },
    {
      "name": "runsBattedIn",
      "dataType": "INT"
    },
    {
      "name": "stolenBases",
      "dataType": "INT"
    },
    {
      "name": "caughtStealing",
      "dataType": "INT"
    },
    {
      "name": "baseOnBalls",
      "dataType": "INT"
    },
    {
      "name": "strikeouts",
      "dataType": "INT"
    },
    {
      "name": "intentionalWalks",
      "dataType": "INT"
    },
    {
      "name": "hitsByPitch",
      "dataType": "INT"
    },
    {
      "name": "sacrificeHits",
      "dataType": "INT"
    },
    {
      "name": "sacrificeFlies",
      "dataType": "INT"
    },
    {
      "name": "groundedIntoDoublePlays",
      "dataType": "INT"
    },
    {
      "name": "G_old",
      "dataType": "INT"
    }
  ]
}

You can look at the configuration of this table by going to , type in baseballStats in the table name, and click Try it out!

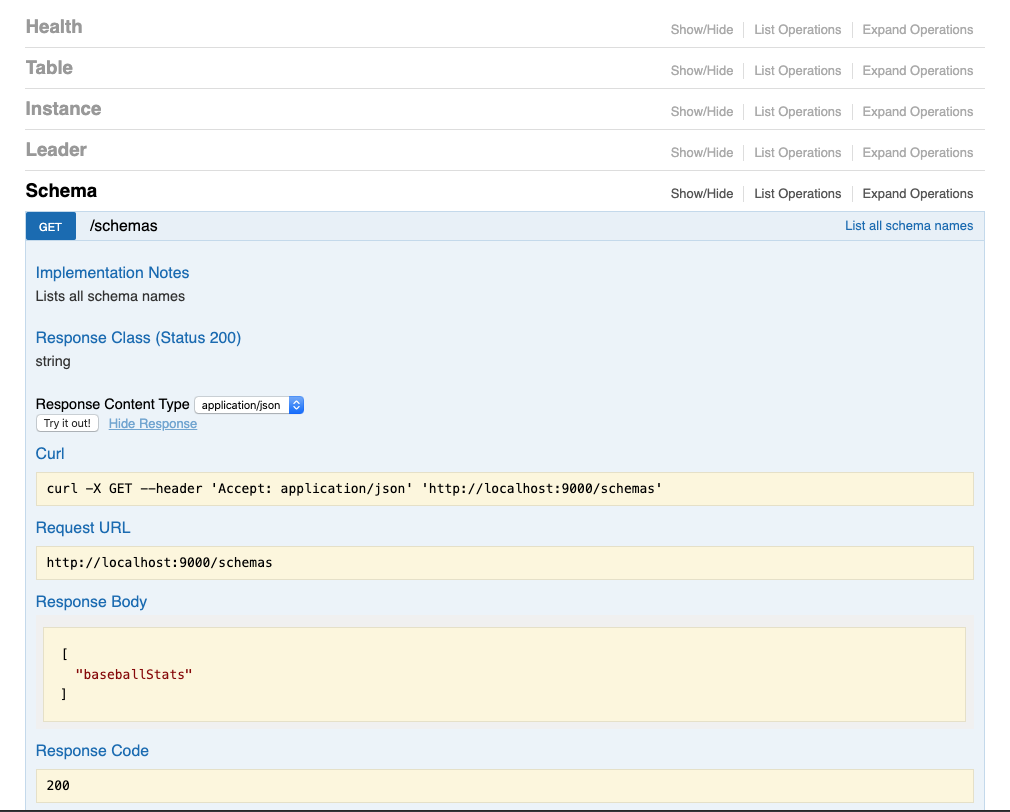

Let's check out the schemas in the cluster by going to and click Try it out!. We can see a schema called baseballStats in this list.

Take a look at the schema by going to , type baseballStats in the schema name, and click Try it out!.

Finally, let's checkout the data segments in the cluster by going to , type in baseballStats in the table name, and click Try it out!. There's 1 segment for this table, called baseballStats_OFFLINE_0.

You might have figured out by now, in order to get data into the Pinot cluster, we need a table, a schema and segments. Let's head over to , to find out more about these components and learn how to create them for your own data.

Tables -> Get/Enable/Disable/Drop a table
Schema -> List all schemas in the cluster
Schema -> Get a schema
List all segments
Batch upload sample data
Pinot Admin UI
Broker Query API
Table -> List all tables in cluster
List all tables in cluster
List all schemas in the cluster
