Batch import example

Step-by-step guide for pushing your own data into the Pinot cluster

This example assumes you have set up your cluster using Pinot in Docker.

Preparing your data

Let's gather our data files and put them in pinot-quick-start/rawdata.

mkdir -p /tmp/pinot-quick-start/rawdata

Supported file formats are CSV, JSON, AVRO, PARQUET, THRIFT, ORC. If you don't have sample data, you can use this sample CSV.

/tmp/pinot-quick-start/rawdata/transcript.csv
studentID,firstName,lastName,gender,subject,score,timestampInEpoch
200,Lucy,Smith,Female,Maths,3.8,1570863600000
200,Lucy,Smith,Female,English,3.5,1571036400000
201,Bob,King,Male,Maths,3.2,1571900400000
202,Nick,Young,Male,Physics,3.6,1572418800000

Creating a schema

Schema is used to define the columns and data types of the Pinot table. A detailed overview of the schema can be found in Schema.

Columns are categorized into 3 types:

Column Type
Description

Dimensions

Typically used in filters and group by, for slicing and dicing into data

Metrics

Typically used in aggregations, represents the quantitative data

Time

Optional column, represents the timestamp associated with each row

In our example transcript-schema, the studentID,firstName,lastName,gender,subject columns are the dimensions, the score column is the metric and timestampInEpoch is the time column.

Once you have identified the dimensions, metrics and time columns, create a schema for your data, using the following reference.

Creating a table configuration

A table configuration is used to define the configuration related to the Pinot table. A detailed overview of the table can be found in Table.

Here's the table configuration for the sample CSV file. You can use this as a reference to build your own table configuration. Edit the tableName and schemaName.

Uploading your table configuration and schema

Review the directory structure so far.

Upload the table configuration using the following command.

Use the Rest API that is running on your Pinot instance to review the table configuration and schema and make sure it was successfully uploaded. This link uses localhost as an example.

Creating a segment

Pinot table data is stored as Pinot segments. A detailed overview of segments can be found in Segment.

  1. To generate a segment, first create a job specification (JobSpec) yaml file. A JobSpec yaml file contains all the information regarding data format, input data location, and pinot cluster coordinates. Copy the following job specification file (example from Pinot quickstart file). If you're using your own data, be sure to do the following:

    • Replace transcript with your table name

    • Set the correct recordReaderSpec

  2. Depending if you're using Docker or a launcher script, choose one of the following commands to generate a segment to upload to Pinot:

Here is some sample output.

Querying your data

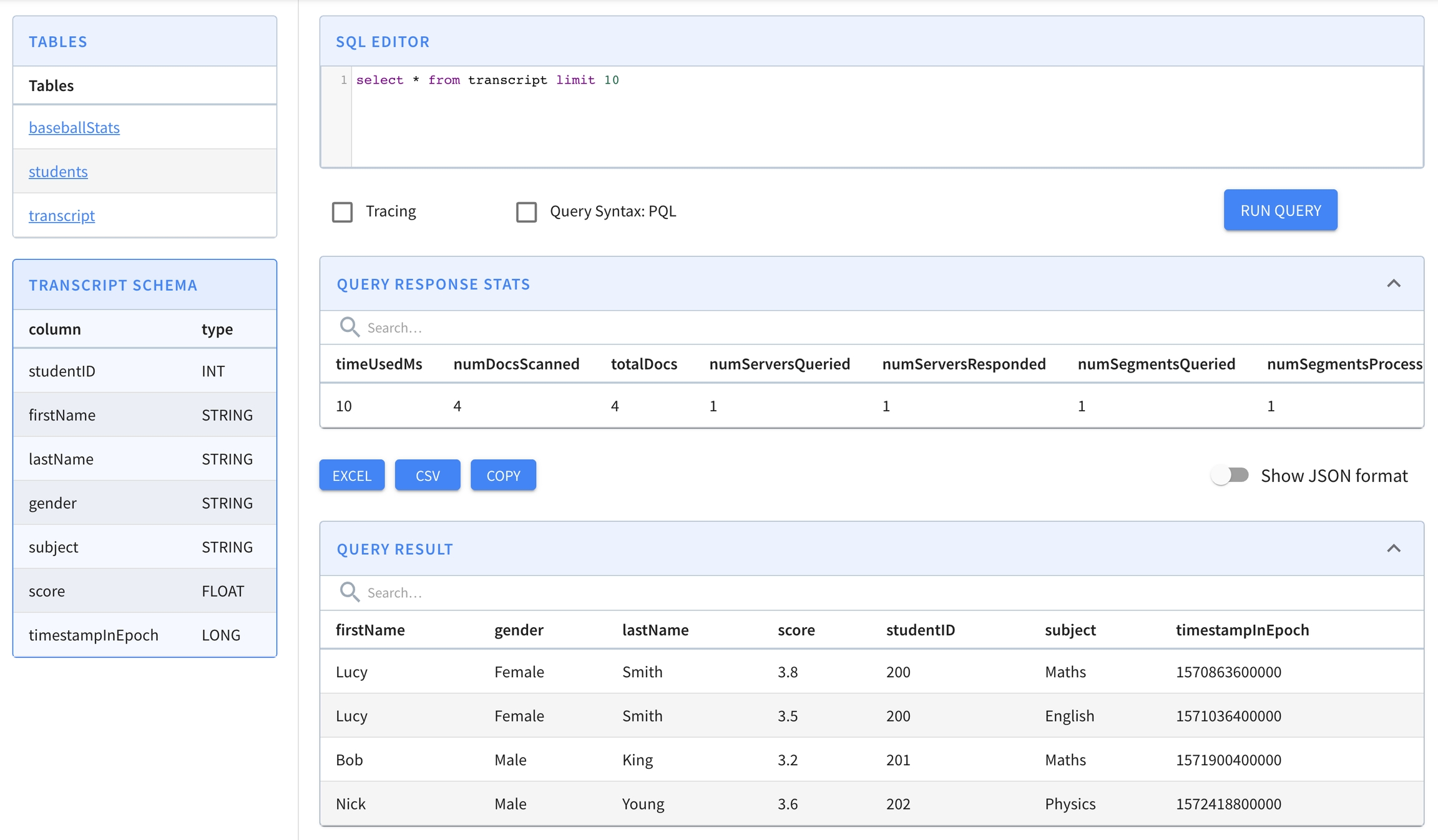

If everything worked, find your table in the Query Console to run queries against it.
