# Complex Type Examples (Unnest)

Additional examples that demonstrate handling of complex types.

## Unnest Root Level Collection

In this example, we would look at un-nesting json records that are batched together as part of a single key at the root level. We will make use of the [ComplexType](https://docs.pinot.apache.org/release-1.4.0/manage-data/data-import/complex-type) configs to persist the individual student records as separate rows in Pinot.

### Sample JSON record

```json
{
  "students": [
    {
      "firstName": "Jane",
      "id": "100",
      "scores": {
        "physics": 91,
        "chemistry": 93,
        "maths": 99
      }
    },
    {
      "firstName": "John",
      "id": "101",
      "scores": {
        "physics": 97,
        "chemistry": 98,
        "maths": 99
      }
    },
    {
      "firstName": "Jen",
      "id": "102",
      "scores": {
        "physics": 96,
        "chemistry": 95,
        "maths": 100
      }
    }
  ]
}
```

### Pinot Schema

The Pinot schema for this example would look as follows.

```json
{
  "schemaName": "students001",
  "enableColumnBasedNullHandling": false,
  "dimensionFieldSpecs": [
    {
      "name": "students.firstName",
      "dataType": "STRING",
      "notNull": false,
      "fieldType": "DIMENSION"
    },
    {
      "name": "students.id",
      "dataType": "STRING",
      "notNull": false,
      "fieldType": "DIMENSION"
    },
    {
      "name": "students.scores",
      "dataType": "JSON",
      "notNull": false,
      "fieldType": "DIMENSION"
    }
  ],
  "dateTimeFieldSpecs": [
    {
      "name": "ts",
      "fieldType": "DATE_TIME",
      "dataType": "LONG",
      "format": "1:MILLISECONDS:EPOCH",
      "granularity": "1:MILLISECONDS"
    }
  ],
  "metricFieldSpecs": []
}
```

### Pinot Table Configuration

The Pinot table configuration for this schema would look as follows.

```json
{
    "ingestionConfig": {
      "complexTypeConfig": {
        "fieldsToUnnest": [
          "students"
        ]
      }
  }
}
```

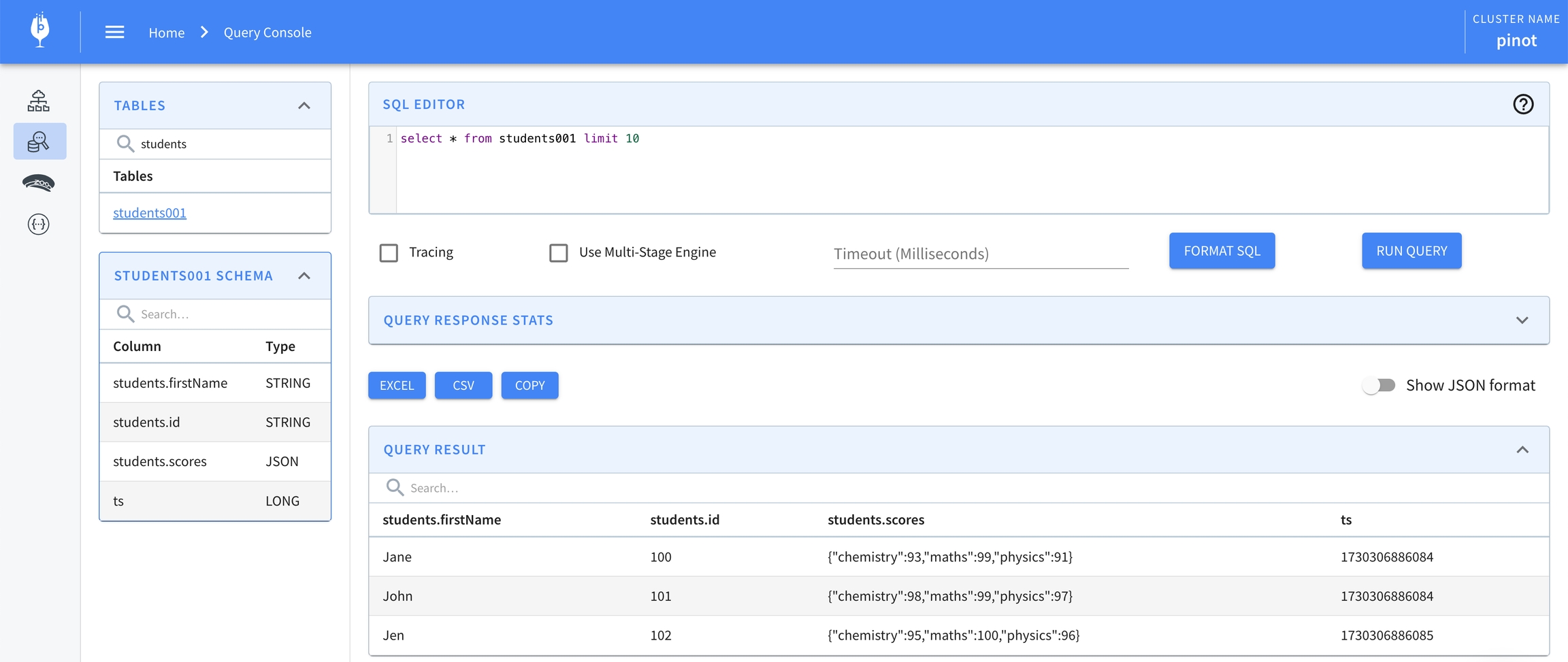

### Data in Pinot

Post ingestion, the student records would appear as separate records in Pinot. Note that the nested field `scores` is captured as a JSON field.

![Unnested Student Records](https://content.gitbook.com/content/ty6SYllypxp3MTxsZRrb/blobs/pVdFhPGrOHUekovzTpFu/root-level-unnest-example.png)

## Unnest sibling collections

In this example, we would look at un-nesting the sibling collections "student" and "teacher".

### Sample JSON Record

```json
{
  "student": [
    {
      "name": "John"
    },
    {
      "name": "Jane"
    }
  ],
  "teacher": [
    {
      "physics": "Kim"
    },
    {
      "chemistry": "Lu"
    },
    {
      "maths": "Walsh"
    }
  ]
}
```

### Pinot Schema

```json
{
  "schemaName": "students002",
  "enableColumnBasedNullHandling": false,
  "dimensionFieldSpecs": [
    {
      "name": "student.name",
      "dataType": "STRING",
      "fieldType": "DIMENSION",
      "notNull": false
    },
    {
      "name": "teacher.physics",
      "dataType": "STRING",
      "fieldType": "DIMENSION",
      "notNull": false
    },
    {
      "name": "teacher.chemistry",
      "dataType": "STRING",
      "fieldType": "DIMENSION",
      "notNull": false
    },
    {
      "name": "teacher.maths",
      "dataType": "STRING",
      "fieldType": "DIMENSION",
      "notNull": false
    }
  ]
}
```

### Pinot Table configuration

```json
  "complexTypeConfig": {
    "fieldsToUnnest": [
      "student",
      "teacher"
    ]
  }
```

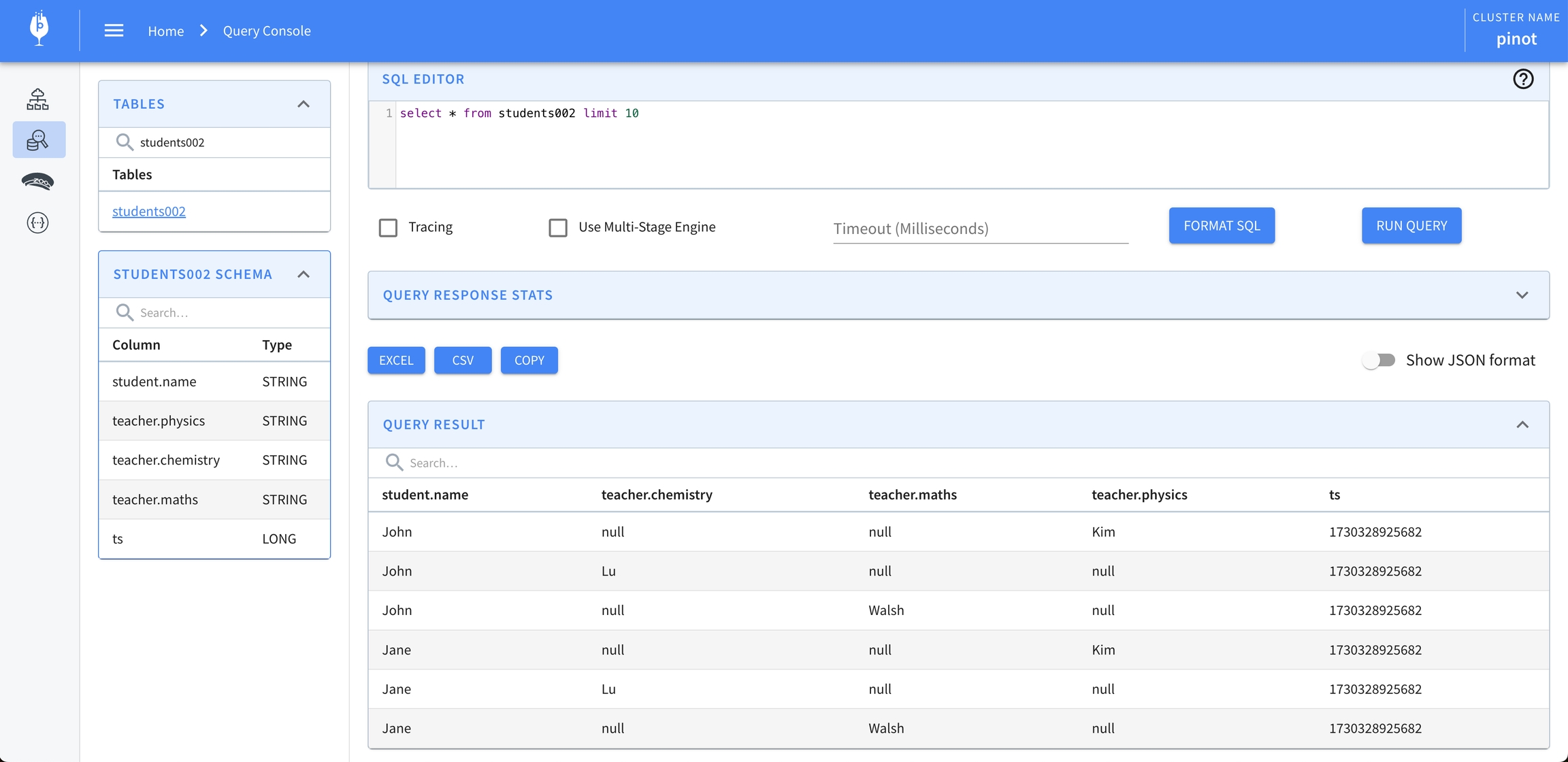

### Data in Pinot

![Unnested student records](https://content.gitbook.com/content/ty6SYllypxp3MTxsZRrb/blobs/Bg2eynJjKrAvkzaBAIow/sibling-level-unnest-example.png)

## Unnest nested collection

In this example, we would look at un-nesting the nested collection "students.grades".

### Sample JSON Record

```json
{
  "students": [
    {
      "name": "Jane",
      "grades": [
        {
          "physics": "A+"
        },
        {
          "maths": "A-"
        }
      ]
    },
    {
      "name": "John",
      "grades": [
        {
          "physics": "B+"
        },
        {
          "maths": "B-"
        }
      ]
    }
  ]
}
```

### Pinot Schema

```json
{
  "schemaName": "students003",
  "enableColumnBasedNullHandling": false,
  "dimensionFieldSpecs": [
    {
      "name": "students.name",
      "dataType": "STRING",
      "fieldType": "DIMENSION",
      "notNull": false
    },
    {
      "name": "students.grades.physics",
      "dataType": "STRING",
      "fieldType": "DIMENSION",
      "notNull": false
    },
    {
      "name": "students.grades.maths",
      "dataType": "STRING",
      "fieldType": "DIMENSION",
      "notNull": false
    }
  ]
}
```

### Pinot Table configuration

```json
  "complexTypeConfig": {
    "fieldsToUnnest": [
      "students",
      "students.grades"
    ]
  }
```

### Data in Pinot

![Unnest Nested Collection](https://content.gitbook.com/content/ty6SYllypxp3MTxsZRrb/blobs/FfCZMzByH5oB2orW4LrI/unnest-nested-collection-example.png)

## Unnest Multi Level Array

In this example, we would look at un-nesting the array "finalExam" which is located within the array "students".

### Sample JSON Record

```json
{
  "students": [
    {
      "name": "John",
      "grades": {
        "finalExam": [
          {
            "physics": "A+"
          },
          {
            "maths": "A-"
          }
        ]
      }
    },
    {
      "name": "Jane",
      "grades": {
        "finalExam": [
          {
            "physics": "B+"
          },
          {
            "maths": "B-"
          }
        ]
      }
    }
  ]
}
```

### Pinot Schema

```json
{
    "schemaName": "students004",
    "enableColumnBasedNullHandling": false,
    "dimensionFieldSpecs": [
      {
        "name": "students.name",
        "dataType": "STRING",
        "notNull": false,
        "fieldType": "DIMENSION"
      },
      {
        "name": "students.grades.finalExam.physics",
        "dataType": "STRING",
        "notNull": false,
        "fieldType": "DIMENSION"
      },
      {
        "name": "students.grades.finalExam.maths",
        "dataType": "STRING",
        "notNull": false,
        "fieldType": "DIMENSION"
      }
    ]
  }
```

### Pinot Table configuration

```json
  "complexTypeConfig": {
    "fieldsToUnnest": [
      "students",
      "students.grades.finalExam"
    ]
  }
```

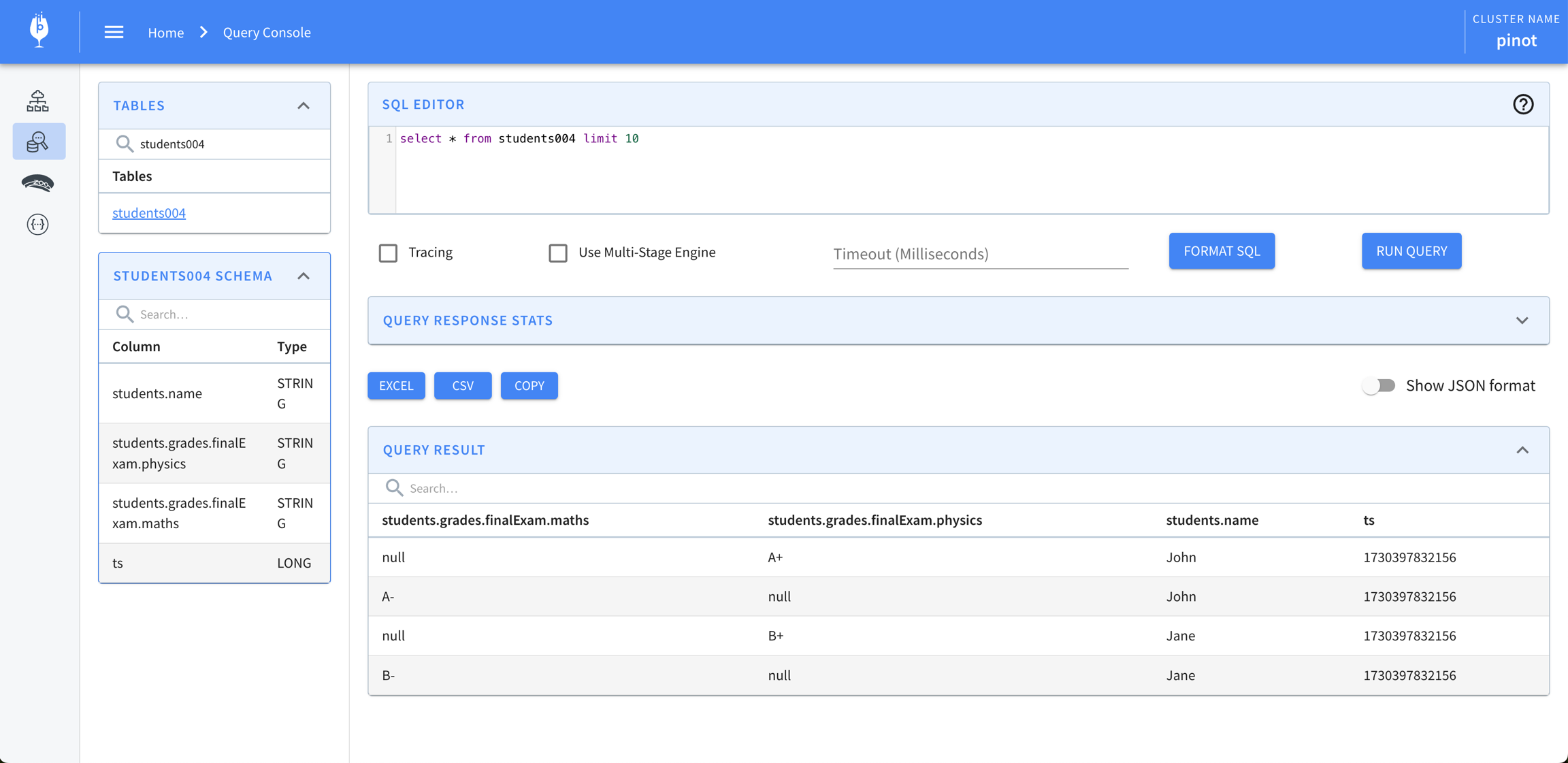

### Data in Pinot

![Unnested Multi Level Array](https://content.gitbook.com/content/ty6SYllypxp3MTxsZRrb/blobs/NWALw4GG5py4LbC6BgPA/unnest-multi-level-array.png)

## Convert inner collections

In this example, the inner collection "grades" is converted into a multi value string column.

### Sample JSON Record

```json
{
  "students": [
    {
      "name": "John",
      "grades": [
        {
          "physics": "A+"
        },
        {
          "maths": "A"
        }
      ]
    },
    {
      "name": "Jane",
      "grades": [
        {
          "physics": "B+"
        },
        {
          "maths": "B-"
        }
      ]
    }
  ]
}
```

### Pinot Schema

```json
{
    "schemaName": "students005",
    "enableColumnBasedNullHandling": false,
    "dimensionFieldSpecs": [
      {
        "name": "students.name",
        "dataType": "STRING",
        "notNull": false,
        "fieldType": "DIMENSION"
      },
      {
        "name": "students.grades",
        "dataType": "STRING",
        "notNull": false,
        "isSingleValue": false,
        "fieldType": "DIMENSION"
      }
    ]
  }
```

### Pinot Table configuration

```json
  "complexTypeConfig": {
    "fieldsToUnnest": [
      "students"
    ]
  }
```

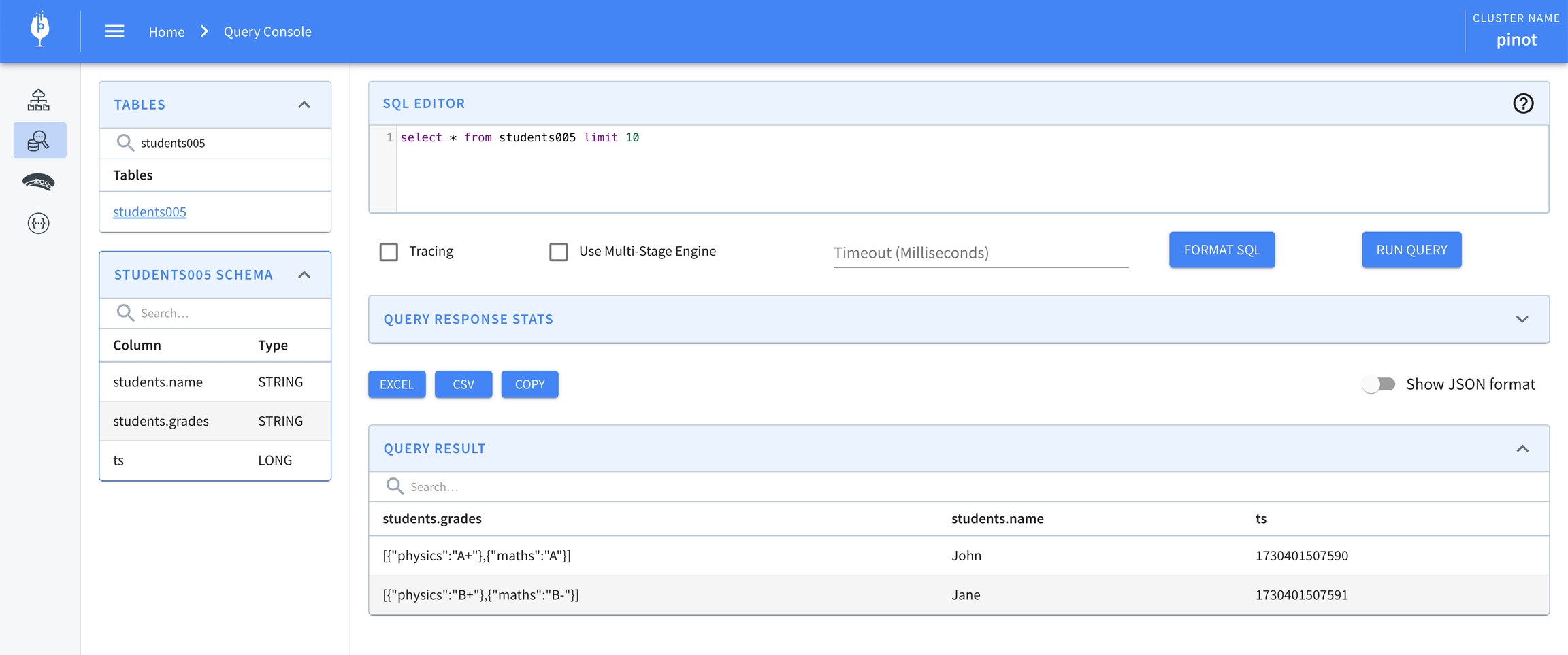

### Data in Pinot

![Converted Inner Collection](https://content.gitbook.com/content/ty6SYllypxp3MTxsZRrb/blobs/sz7x1XWk0nSuEkqkF9z7/convert-inner-collection-mv-string-example.png)

## Primitive Array Converted to JSON String

In this example, the array of primitives "extra\_curricular" is converted to a Json string.

### Sample JSON Record

```json
{
  "students": [
    {
      "name": "John",
      "extra_curricular": [
        "piano", "soccer"
      ]
    },
    {
      "name": "Jane",
      "extra_curricular": [
        "violin", "music"
      ]
    }
  ]
}
```

### Pinot Schema

```json
{
    "schemaName": "students006",
    "enableColumnBasedNullHandling": false,
    "dimensionFieldSpecs": [
      {
        "name": "students.name",
        "dataType": "STRING",
        "notNull": false,
        "fieldType": "DIMENSION"
      },
      {
        "name": "students.extra_curricular",
        "dataType": "JSON",
        "notNull": false,
        "fieldType": "DIMENSION"
      }
    ]
  }
```

### Pinot Table configuration

```json
    "complexTypeConfig": {
      "fieldsToUnnest": [
        "students"
      ],
      "collectionNotUnnestedToJson": "ALL"
    }
```

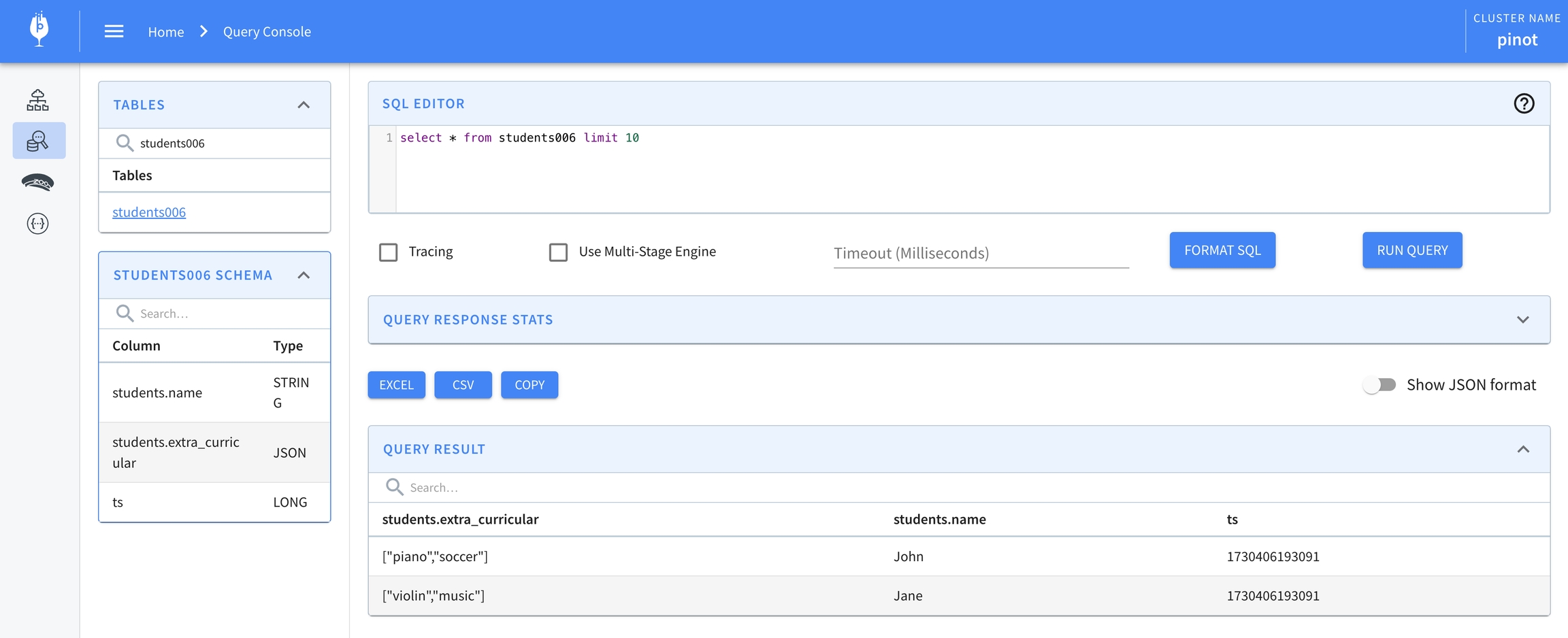

### Data in Pinot

![Primitives Converted to JSON](https://content.gitbook.com/content/ty6SYllypxp3MTxsZRrb/blobs/QP8KL9enrHlYHofkXfXu/convert-primitves-to-json-example.png)

## Unnest JsonArrayString collections

In this example, the data is `STRING` type and the content is string encoded `JSON ARRAY` .

In this case, the Unnest won't happen automatically on a `STRING` field.

Users need to first convert the `STRING` field to `ARRAY` or `MAP` field then perform the unnest.

Here are the steps:

1. use `enrichmentConfigs` to create the intermediate column `recordArray` with the function: `jsonStringToListOrMap(data_for_unnesting)`

```
"enrichmentConfigs": [
  {
    "enricherType": "generateColumn",
    "properties": {"fieldToFunctionMap":{"recordArray":"jsonStringToListOrMap(data_for_unnesting)"}},
    "preComplexTypeTransform": true
  }
],
```

2. configure `complexTypeConfig` to unnest the intermediate field `recordArray` to generate the field `recordArray||name`

```
"complexTypeConfig": {
  "fieldsToUnnest": [
    "recordArray"
  ],
  "delimiter": "||"
},
```

### Sample Record

```
{
  "key": "value",
  "data_for_unnesting": [
    {
      "name": "record1"
    },
    {
      "name": "record2"
    },
    {
      "name": "record3"
    }
  ],
  "event_time": "2025-04-24T20:45:56.721936"
}
```

### Pinot Schema

{% hint style="warning" %}
Note the field to ingest is `recordArray||name` not `data_for_unnesting||name`
{% endhint %}

```
{
  "schemaName": "testUnnest",
  "enableColumnBasedNullHandling": true,
  "dimensionFieldSpecs": [
    {
      "name": "key",
      "dataType": "STRING",
      "fieldType": "DIMENSION"
    },
    {
      "name": "recordArray||name",
      "dataType": "STRING",
      "fieldType": "DIMENSION"
    }
  ],
  "dateTimeFieldSpecs": [
    {
      "name": "event_time",
      "dataType": "LONG",
      "fieldType": "DATE_TIME",
      "format": "EPOCH|MILLISECONDS|1",
      "granularity": "MILLISECONDS|1"
    }
  ]
}
```

### Pinot Table Configuration

```
{
  "tableName": "testUnnest_OFFLINE",
  "tableType": "OFFLINE",
  "segmentsConfig": {
    "deletedSegmentsRetentionPeriod": "0d",
    "segmentPushType": "APPEND",
    "timeColumnName": "event_time",
    "retentionTimeUnit": "DAYS",
    "retentionTimeValue": "180",
    "minimizeDataMovement": false,
    "replication": "1"
  },
  "tenants": {
    "broker": "DefaultTenant",
    "server": "DefaultTenant"
  },
  "tableIndexConfig": {
    "aggregateMetrics": false,
    "optimizeDictionary": false,
    "autoGeneratedInvertedIndex": false,
    "enableDefaultStarTree": false,
    "nullHandlingEnabled": true,
    "skipSegmentPreprocess": false,
    "optimizeDictionaryType": false,
    "enableDynamicStarTreeCreation": false,
    "columnMajorSegmentBuilderEnabled": true,
    "createInvertedIndexDuringSegmentGeneration": true,
    "optimizeDictionaryForMetrics": false,
    "noDictionarySizeRatioThreshold": 0,
    "loadMode": "MMAP",
    "rangeIndexVersion": 2,
    "invertedIndexColumns": [
      "key"
    ],
    "varLengthDictionaryColumns": [
      "key"
    ]
  },
  "metadata": {},
  "ingestionConfig": {
    "transformConfigs": [],
    "enrichmentConfigs": [
      {
        "enricherType": "generateColumn",
        "properties": {"fieldToFunctionMap":{"recordArray":"jsonStringToListOrMap(data_for_unnesting)"}},
        "preComplexTypeTransform": true
      }
    ],
    "continueOnError": true,
    "rowTimeValueCheck": true,
    "complexTypeConfig": {
      "fieldsToUnnest": [
        "recordArray"
      ],
      "delimiter": "||"
    },
    "retryOnSegmentBuildPrecheckFailure": false,
    "segmentTimeValueCheck": false
  },
  "isDimTable": false
}
```

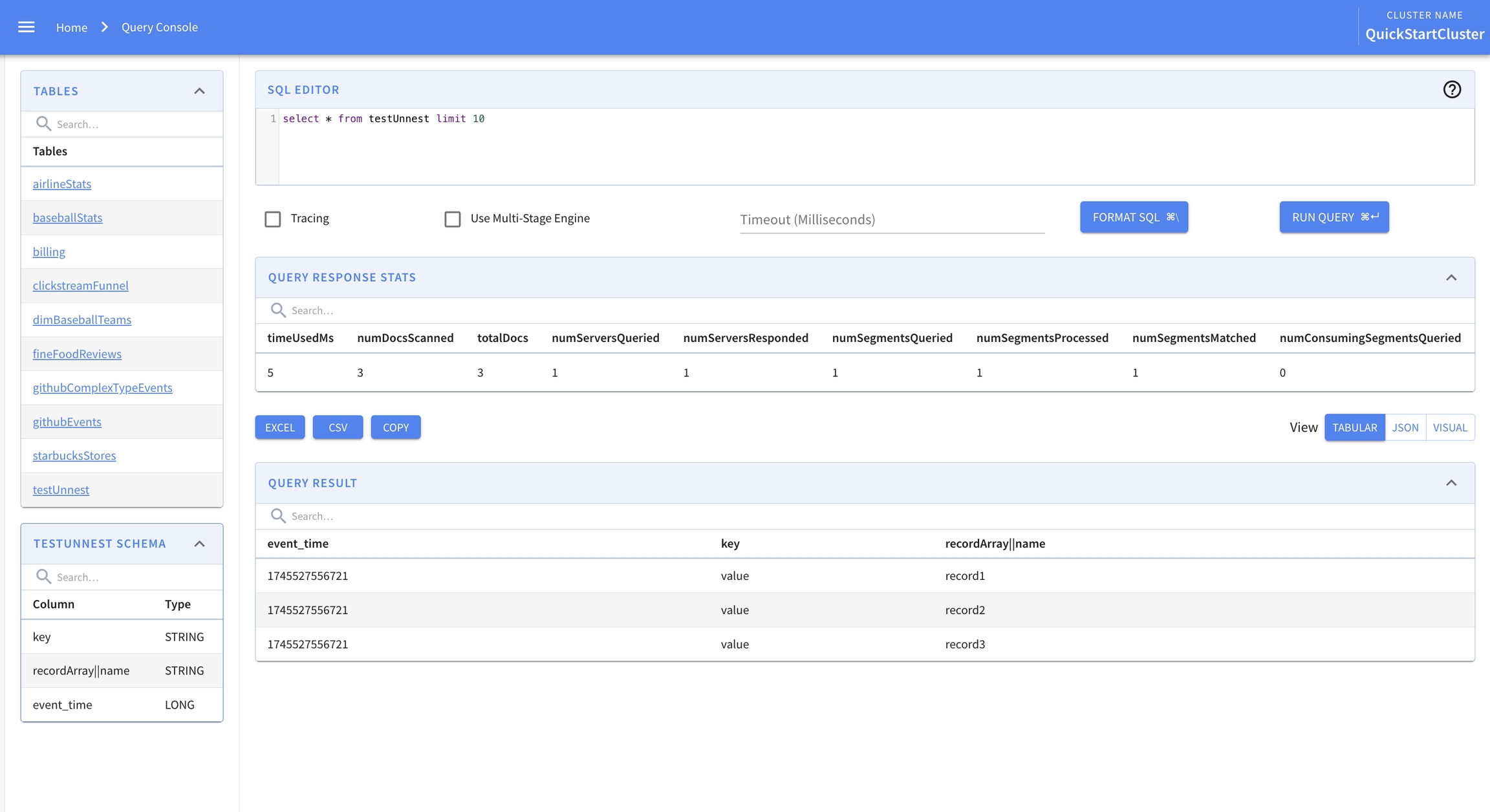

### Data in Pinot

<figure><img src="https://content.gitbook.com/content/ty6SYllypxp3MTxsZRrb/blobs/0kXecmwYHw39Q4OnhKxL/image.png" alt=""><figcaption></figcaption></figure>
