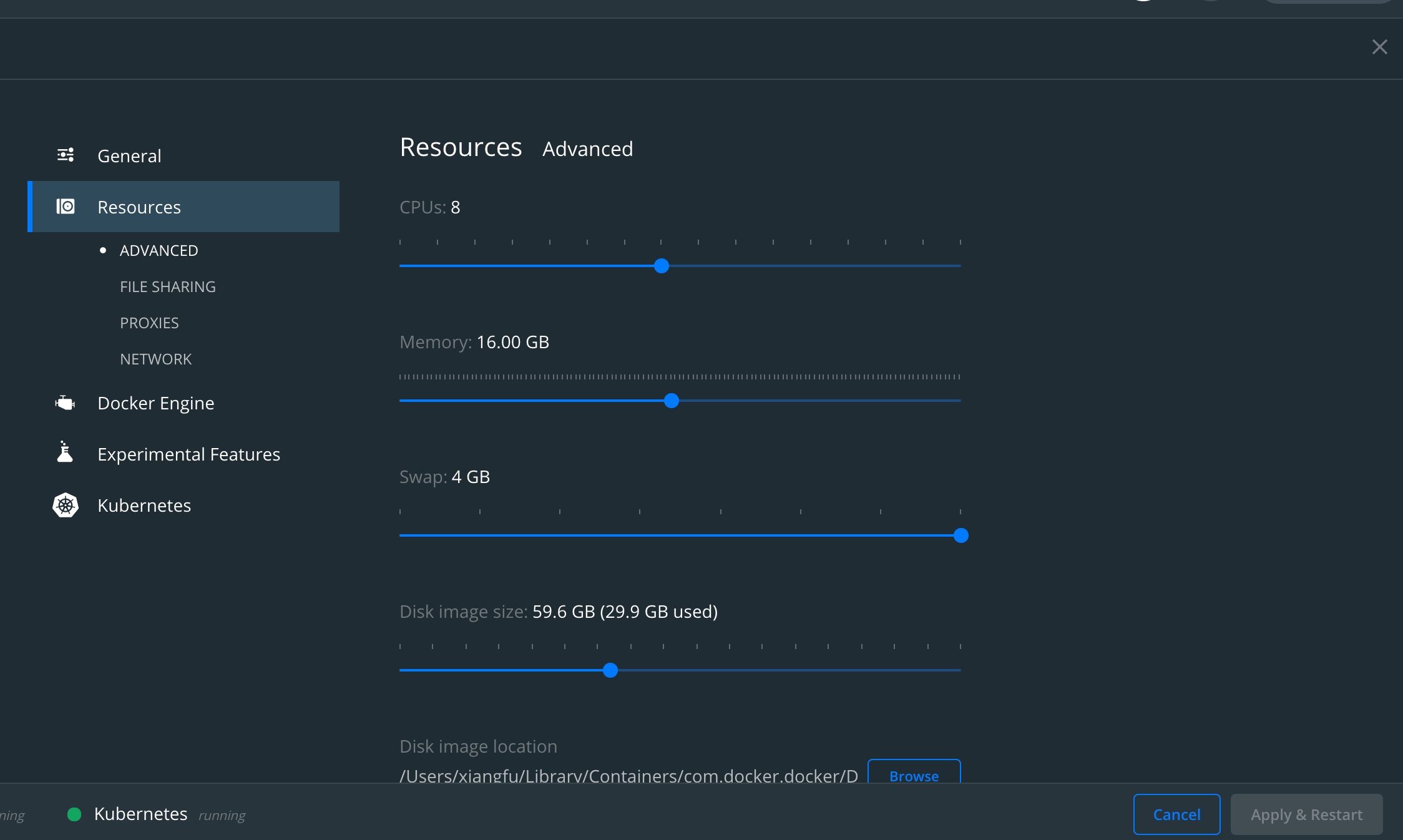

# Advanced Pinot Setup ## Start Pinot components (scripts or docker images) Set up Pinot by starting each component individually {% tabs %} {% tab title="Using docker images" %} **Start Pinot Components using docker** **Prerequisites** {% hint style="info" %} If running locally, ensure your docker cluster has enough resources, below is a sample config. {% endhint %} ![Sample Docker resources](https://content.gitbook.com/content/mWrTLZF04raJ5XRlH8YT/blobs/XIgTkoVgSfOKB0KkEyzw/image%20\(4\).png) **Pull Docker image** You can try out pre-built Pinot all-in-one Docker image. ``` export PINOT_VERSION=0.10.0 export PINOT_IMAGE=apachepinot/pinot:${PINOT_VERSION} docker pull ${PINOT_IMAGE} ``` (Optional) You can also follow the instructions [here](https://docs.pinot.apache.org/release-1.3.0/for-operators/tutorials/build-docker-images) to build your own images. **0. Create a network** Create an isolated bridge network in Docker. ``` docker network create -d bridge pinot-demo ``` **1. Start Zookeeper** Start Zookeeper in daemon. ``` docker run \ --network=pinot-demo \ --name pinot-zookeeper \ --restart always \ -p 2181:2181 \ -d zookeeper:3.5.6 ``` Start [ZKUI](https://github.com/DeemOpen/zkui) to browse Zookeeper data at . ``` docker run \ --network pinot-demo --name=zkui \ -p 9090:9090 \ -e ZK_SERVER=pinot-zookeeper:2181 \ -d qnib/plain-zkui:latest ``` **2. Start Pinot Controller** Start Pinot Controller in daemon and connect to Zookeeper. ``` docker run \ --network=pinot-demo \ --name pinot-controller \ -p 9000:9000 \ -d ${PINOT_IMAGE} StartController \ -zkAddress pinot-zookeeper:2181 ``` **3. Start Pinot Broker** Start Pinot Broker in daemon and connect to Zookeeper. ``` docker run \ --network=pinot-demo \ --name pinot-broker \ -d ${PINOT_IMAGE} StartBroker \ -zkAddress pinot-zookeeper:2181 ``` **4. Start Pinot Server** Start Pinot Server in daemon and connect to Zookeeper. ``` export PINOT_IMAGE=apachepinot/pinot:0.3.0-SNAPSHOT docker run \ --network=pinot-demo \ --name pinot-server \ -d ${PINOT_IMAGE} StartServer \ -zkAddress pinot-zookeeper:2181 ``` Now all Pinot related components are started as an empty cluster. You can run below command to check container status. ``` docker container ls -a ``` **Sample Console Output** ``` CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES 9e80c3fcd29b apachepinot/pinot:0.3.0-SNAPSHOT "./bin/pinot-admin.s…" 18 seconds ago Up 17 seconds 8096-8099/tcp, 9000/tcp pinot-server f4c42a5865c7 apachepinot/pinot:0.3.0-SNAPSHOT "./bin/pinot-admin.s…" 21 seconds ago Up 21 seconds 8096-8099/tcp, 9000/tcp pinot-broker a413b0013806 apachepinot/pinot:0.3.0-SNAPSHOT "./bin/pinot-admin.s…" 26 seconds ago Up 25 seconds 8096-8099/tcp, 0.0.0.0:9000->9000/tcp pinot-controller 9d3b9c4d454b zookeeper:3.5.6 "/docker-entrypoint.…" About a minute ago Up About a minute 2888/tcp, 3888/tcp, 0.0.0.0:2181->2181/tcp, 8080/tcp pinot-zookeeper ``` {% endtab %} {% tab title="Using launcher scripts" %} Download Pinot Distribution from ``` $ export PINOT_VERSION=0.10.0 $ tar -xvf apache-pinot-${PINOT_VERSION}-bin.tar.gz $ cd apache-pinot-${PINOT_VERSION}-bin $ ls DISCLAIMER LICENSE NOTICE bin conf lib licenses query_console sample_data $ PINOT_INSTALL_DIR=`pwd` ``` **Start Pinot components via launcher scripts** **Start Zookeeper** ``` cd apache-pinot-${PINOT_VERSION}-bin bin/pinot-admin.sh StartZookeeper ``` **Start Pinot Controller** > See [controller page](https://docs.pinot.apache.org/release-1.3.0/for-developers/advanced/advanced-pinot-setup) for more details . ``` bin/pinot-admin.sh StartController \ -zkAddress localhost:2181 ``` **Start Pinot Broker** ``` bin/pinot-admin.sh StartBroker \ -zkAddress localhost:2181 ``` **Start Pinot Server** ``` bin/pinot-admin.sh StartServer \ -zkAddress localhost:2181 ``` {% endtab %} {% endtabs %} ## Start Pinot Using Config Files Often times we need to customized the setup of Pinot components. Hence user can compile a config file and use it to start Pinot components. Below are the examples config files and sample command to start Pinot. ### Pinot Controller Below is a sample `pinot-controller.conf` used in HelmChart setup. ``` controller.helix.cluster.name=pinot-quickstart controller.port=9000 controller.vip.host=pinot-controller controller.vip.port=9000 controller.data.dir=/var/pinot/controller/data controller.zk.str=pinot-zookeeper:2181 pinot.set.instance.id.to.hostname=true ``` In order to run Pinot Controller, the command is: ``` bin/pinot-admin.sh StartController -configFileName config/pinot-controller.conf ``` #### Configure Controller Below are some configurations you can set in Pinot Controller. You can head over to [Controller](https://docs.pinot.apache.org/release-1.3.0/configuration-reference/controller#primary-configuration) for complete list of available configs. | Config Name | Description | Default Value | | --------------------------------- | -------------------------------------------------------------- | ------------------------------------------------------------------ | | controller.helix.cluster.name | Pinot Cluster name | PinotCluster | | controller.host | Pinot Controller Host | Required if config **pinot.set.instance.id.to.hostname** is false. | | pinot.set.instance.id.to.hostname | When enabled, use server hostname to infer **controller.host** | false | | controller.port | Pinot Controller Port | 9000 | | controller.vip.host | The VIP hostname used to set the download URL for segments | ${controller.host} | | controller.vip.port | The VIP port used to set the download URL for segments | ${controller.port} | | controller.data.dir | Directory to host segment data | ${java.io.tmpdir}/PinotController | | controller.zk.str | Zookeeper URL | localhost:2181 | | cluster.tenant.isolation.enable | Enable Tenant Isolation, default is single tenant cluster | true | ### Pinot Broker Below is a sample `pinot-broker.conf` used in HelmChart setup. ``` pinot.broker.client.queryPort=8099 pinot.broker.routing.table.builder.class=random pinot.set.instance.id.to.hostname=true ``` In order to run Pinot Broker, the command is: ``` bin/pinot-admin.sh StartBroker -clusterName pinot-quickstart -zkAddress pinot-zookeeper:2181 -configFileName config/pinot-broker.conf ``` #### Configure Broker Below are some configurations you can set in Pinot Broker. You can head over to [Broker](https://docs.pinot.apache.org/release-1.3.0/configuration-reference/broker) for complete list of available configs. | Config Name | Description | Default Value | | ---------------------------------------- | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | --------------------------------------------------------- | | instanceId | Unique id to register Pinot Broker in the cluster. | BROKER\_${BROKER\_HOST}\_${pinot.broker.client.queryPort} | | pinot.set.instance.id.to.hostname | When enabled, use server hostname to set ${BROKER\_HOST} in above config, else use IP address. | false | | pinot.broker.client.queryPort | Port to query Pinot Broker | 8099 | | pinot.broker.timeoutMs | Timeout for Broker Query in Milliseconds | 10000 | | pinot.broker.enable.query.limit.override | Configuration to enable Query LIMIT Override to protect Pinot Broker and Server from fetch too many records back. | false | | pinot.broker.query.response.limit | When config **pinot.broker.enable.query.limit.override** is enabled, reset limit for selection query if it exceeds this value. | 2147483647 | | pinot.broker.startup.minResourcePercent | Configuration to consider the broker ServiceStatus as being STARTED if the percent of resources (tables) that are ONLINE for this this broker has crossed the threshold percentage of the total number of tables that it is expected to serve | 100.0 | ### Pinot Server Below is a sample `pinot-server.conf` used in HelmChart setup. ``` pinot.server.netty.port=8098 pinot.server.adminapi.port=8097 pinot.server.instance.dataDir=/var/pinot/server/data/index pinot.server.instance.segmentTarDir=/var/pinot/server/data/segment pinot.set.instance.id.to.hostname=true ``` In order to run Pinot Server, the command is: ``` bin/pinot-admin.sh StartServer -clusterName pinot-quickstart -zkAddress pinot-zookeeper:2181 -configFileName config/pinot-server.conf ``` #### Configure Server Below are some outstanding configurations you can set in Pinot Server. You can head over to [Server](https://docs.pinot.apache.org/release-1.3.0/configuration-reference/server) for complete list of available configs. | Config Name | Description | Default Value | | ----------------------------------- | ---------------------------------------------------------------------------------------------- | --------------------------------------------------- | | instanceId | Unique id to register Pinot Server in the cluster. | Server\_${SERVER\_HOST}\_${pinot.server.netty.port} | | pinot.set.instance.id.to.hostname | When enabled, use server hostname to set ${SERVER\_HOST} in above config, else use IP address. | false | | pinot.server.netty.port | Port to query Pinot Server | 8098 | | pinot.server.adminapi.port | Port for Pinot Server Admin UI | 8097 | | pinot.server.instance.dataDir | Directory to hold all the data | ${java.io.tmpDir}/PinotServer/index | | pinot.server.instance.segmentTarDir | Directory to hold temporary segments downloaded from Controller or Deep Store | ${java.io.tmpDir}/PinotServer/segmentTar | | pinot.server.query.executor.timeout | Timeout for Server to process Query in Milliseconds | 15000 | ## Create and Configure table A TABLE in regular database world is represented as \\_OFFLINE and/or \
\_REALTIME in Pinot depending on the ingestion mode (batch, real-time, hybrid) See [`examples`](https://github.com/apache/pinot/tree/master/pinot-tools/src/main/resources/examples) for all possible batch/streaming tables. ### Batch Table Creation See [Batch Tables](https://docs.pinot.apache.org/release-1.3.0/for-developers/advanced/advanced-pinot-setup) for table configuration details and how to customize it. {% tabs %} {% tab title="Docker" %} ``` docker run \ --network=pinot-demo \ --name pinot-batch-table-creation \ ${PINOT_IMAGE} AddTable \ -schemaFile examples/batch/airlineStats/airlineStats_schema.json \ -tableConfigFile examples/batch/airlineStats/airlineStats_offline_table_config.json \ -controllerHost pinot-controller \ -controllerPort 9000 \ -exec ``` **Sample Console Output** ``` Executing command: AddTable -tableConfigFile examples/batch/airlineStats/airlineStats_offline_table_config.json -schemaFile examples/batch/airlineStats/airlineStats_schema.json -controllerHost pinot-controller -controllerPort 9000 -exec Sending request: http://pinot-controller:9000/schemas to controller: a413b0013806, version: Unknown {"status":"Table airlineStats_OFFLINE succesfully added"} ``` {% endtab %} {% tab title="Using launcher scripts" %} ``` bin/pinot-admin.sh AddTable \ -schemaFile examples/batch/airlineStats/airlineStats_schema.json \ -tableConfigFile examples/batch/airlineStats/airlineStats_offline_table_config.json \ -exec ``` {% endtab %} {% endtabs %} ### Automatically add an inverted index to your batch table By default, the inverted index type is the only type of index that isn't created automatically during segment generation. Instead, they are generated when the segments are loaded on the server. But, waiting to build indexes until load time increases the startup time and takes up resources with every new segment push, which increases the time for other operations such as rebalance. To automatically create an inverted index during segment generation, add an entry to your [table index config](https://docs.pinot.apache.org/release-1.3.0/configuration-reference/table#table-index-config) in the table configuration file. This setting works with [batch (offline) tables](#batch-table-creation). When set to `true`, Pinot creates an inverted index for the columns that you specify in the `invertedIndexColumns` list in the table configuration. This setting is `false` by default. Set `createInvertedIndexDuringSegmentGeneration` to `true` in your table config, as follows: ```json ... "tableIndexConfig": { ... "createInvertedIndexDuringSegmentGeneration": true, ... } ... ``` When you update this setting in your table configuration, you must [reload the table segment](https://docs.pinot.apache.org/release-1.3.0/basics/data-import/segment-reload) to apply the inverted index to all existing segments. ### Streaming Table Creation See [Streaming Tables](https://docs.pinot.apache.org/release-1.3.0/for-developers/advanced/advanced-pinot-setup) for table configuration details and how to customize it. {% tabs %} {% tab title="Docker" %} **Start Kafka** ``` docker run \ --network pinot-demo --name=kafka \ -e KAFKA_ZOOKEEPER_CONNECT=pinot-zookeeper:2181/kafka \ -e KAFKA_BROKER_ID=0 \ -e KAFKA_ADVERTISED_HOST_NAME=kafka \ -d wurstmeister/kafka:latest ``` **Create a Kafka Topic** ``` docker exec \ -t kafka \ /opt/kafka/bin/kafka-topics.sh \ --zookeeper pinot-zookeeper:2181/kafka \ --partitions=1 --replication-factor=1 \ --create --topic flights-realtime ``` **Create a Streaming table** ``` docker run \ --network=pinot-demo \ --name pinot-streaming-table-creation \ ${PINOT_IMAGE} AddTable \ -schemaFile examples/stream/airlineStats/airlineStats_schema.json \ -tableConfigFile examples/docker/table-configs/airlineStats_realtime_table_config.json \ -controllerHost pinot-controller \ -controllerPort 9000 \ -exec ``` **Sample output** ``` Executing command: AddTable -tableConfigFile examples/docker/table-configs/airlineStats_realtime_table_config.json -schemaFile examples/stream/airlineStats/airlineStats_schema.json -controllerHost pinot-controller -controllerPort 9000 -exec Sending request: http://pinot-controller:9000/schemas to controller: 8fbe601012f3, version: Unknown {"status":"Table airlineStats_REALTIME succesfully added"} ``` {% endtab %} {% tab title="Using launcher scripts" %} **Start Kafka-Zookeeper** ``` bin/pinot-admin.sh StartZookeeper -zkPort 2191 ``` **Start Kafka** ``` bin/pinot-admin.sh StartKafka -zkAddress=localhost:2191/kafka -port 19092 ``` **Create stream table** ``` bin/pinot-admin.sh AddTable \ -schemaFile examples/stream/airlineStats/airlineStats_schema.json \ -tableConfigFile examples/stream/airlineStats/airlineStats_realtime_table_config.json \ -exec ``` {% endtab %} {% endtabs %} ### Use `sortedColumn` with streaming tables For [streaming](#streaming-table-creation) tables, you can use a sorted index with `sortedColumn` to sort data when generating segments as the segment is created. See [Real-time tables](https://docs.pinot.apache.org/release-1.3.0/basics/indexing/forward-index#real-time-tables) for more information. A sorted forward index can be used as an inverted index with better performance, but with the limitation that the search is only applied to one column per table. See [Sorted inverted index](https://docs.pinot.apache.org/release-1.3.0/basics/indexing/inverted-index#sorted-inverted-index) to learn more. ## Load Data Now that the table is configured, let's load some data. Data can be loaded in batch mode or streaming mode. See[ ingestion overview](https://docs.pinot.apache.org/release-1.3.0/for-developers/advanced/data-ingestion) page for details. Loading data involves generating pinot segments from raw data and pushing them to the pinot cluster. ### Load Data in Batch User can always generate and push segments to Pinot via standalone scripts or using frameworks such as Hadoop or Spark. See this [page](https://docs.pinot.apache.org/release-1.3.0/for-developers/advanced/advanced-pinot-setup) for more details on setting up Data Ingestion Jobs. Below example goes with the standalone mode. {% tabs %} {% tab title="Docker" %} ``` docker run \ --network=pinot-demo \ --name pinot-data-ingestion-job \ ${PINOT_IMAGE} LaunchDataIngestionJob \ -jobSpecFile examples/docker/ingestion-job-specs/airlineStats.yaml ``` **Sample Console Output** ``` SegmentGenerationJobSpec: !!org.apache.pinot.spi.ingestion.batch.spec.SegmentGenerationJobSpec excludeFileNamePattern: null executionFrameworkSpec: {extraConfigs: null, name: standalone, segmentGenerationJobRunnerClassName: org.apache.pinot.plugin.ingestion.batch.standalone.SegmentGenerationJobRunner, segmentTarPushJobRunnerClassName: org.apache.pinot.plugin.ingestion.batch.standalone.SegmentTarPushJobRunner, segmentUriPushJobRunnerClassName: org.apache.pinot.plugin.ingestion.batch.standalone.SegmentUriPushJobRunner} includeFileNamePattern: glob:**/*.avro inputDirURI: examples/batch/airlineStats/rawdata jobType: SegmentCreationAndTarPush outputDirURI: examples/batch/airlineStats/segments overwriteOutput: true pinotClusterSpecs: - {controllerURI: 'http://pinot-controller:9000'} pinotFSSpecs: - {className: org.apache.pinot.spi.filesystem.LocalPinotFS, configs: null, scheme: file} pushJobSpec: {pushAttempts: 2, pushParallelism: 1, pushRetryIntervalMillis: 1000, segmentUriPrefix: null, segmentUriSuffix: null} recordReaderSpec: {className: org.apache.pinot.plugin.inputformat.avro.AvroRecordReader, configClassName: null, configs: null, dataFormat: avro} segmentNameGeneratorSpec: null tableSpec: {schemaURI: 'http://pinot-controller:9000/tables/airlineStats/schema', tableConfigURI: 'http://pinot-controller:9000/tables/airlineStats', tableName: airlineStats} Trying to create instance for class org.apache.pinot.plugin.ingestion.batch.standalone.SegmentGenerationJobRunner Initializing PinotFS for scheme file, classname org.apache.pinot.spi.filesystem.LocalPinotFS Finished building StatsCollector! Collected stats for 403 documents Created dictionary for INT column: FlightNum with cardinality: 386, range: 14 to 7389 Using fixed bytes value dictionary for column: Origin, size: 294 Created dictionary for STRING column: Origin with cardinality: 98, max length in bytes: 3, range: ABQ to VPS Created dictionary for INT column: Quarter with cardinality: 1, range: 1 to 1 Created dictionary for INT column: LateAircraftDelay with cardinality: 50, range: -2147483648 to 303 ...... ...... Pushing segment: airlineStats_OFFLINE_16085_16085_29 to location: http://pinot-controller:9000 for table airlineStats Sending request: http://pinot-controller:9000/v2/segments?tableName=airlineStats to controller: a413b0013806, version: Unknown Response for pushing table airlineStats segment airlineStats_OFFLINE_16085_16085_29 to location http://pinot-controller:9000 - 200: {"status":"Successfully uploaded segment: airlineStats_OFFLINE_16085_16085_29 of table: airlineStats"} Pushing segment: airlineStats_OFFLINE_16084_16084_30 to location: http://pinot-controller:9000 for table airlineStats Sending request: http://pinot-controller:9000/v2/segments?tableName=airlineStats to controller: a413b0013806, version: Unknown Response for pushing table airlineStats segment airlineStats_OFFLINE_16084_16084_30 to location http://pinot-controller:9000 - 200: {"status":"Successfully uploaded segment: airlineStats_OFFLINE_16084_16084_30 of table: airlineStats"} ``` {% endtab %} {% tab title="Using launcher scripts" %} ``` bin/pinot-admin.sh LaunchDataIngestionJob \ -jobSpecFile examples/batch/airlineStats/ingestionJobSpec.yaml ``` {% endtab %} {% endtabs %} JobSpec yaml file has all the information regarding data format, input data location and pinot cluster coordinates. Note that this assumes that the controller is **RUNNING** to fetch the table config and schema. If not, you will have to configure the spec to point at their location. See [Pinot Ingestion Job](https://docs.pinot.apache.org/release-1.3.0/basics/data-import/batch-ingestion) for more details. ### Load Data in Streaming #### Kafka {% tabs %} {% tab title="Docker" %} Run below command to stream JSON data into Kafka topic: **flights-realtime** ``` docker run \ --network pinot-demo \ --name=loading-airlineStats-data-to-kafka \ ${PINOT_IMAGE} StreamAvroIntoKafka \ -avroFile examples/stream/airlineStats/sample_data/airlineStats_data.avro \ -kafkaTopic flights-realtime -kafkaBrokerList kafka:9092 -zkAddress pinot-zookeeper:2181/kafka ``` {% endtab %} {% tab title="Using launcher scripts" %} Run below command to stream JSON data into Kafka topic: **flights-realtime** ``` bin/pinot-admin.sh StreamAvroIntoKafka \ -avroFile examples/stream/airlineStats/sample_data/airlineStats_data.avro \ -kafkaTopic flights-realtime -kafkaBrokerList localhost:19092 -zkAddress localhost:2191/kafka ``` {% endtab %} {% endtabs %}
