# Complex Type Examples

Additional examples that demonstrate handling of complex types.

Additional examples that demonstrate handling of complex types.

## Unnest Root Level Collection

In this example, we would look at un-nesting json records that are batched together as part of a single key at the root level. We will make use of the [ComplexType](/release-1.3.0/basics/data-import/pinot-input-formats/complex-type.md) configs to persist the individual student records as separate rows in Pinot.

### Sample JSON record

```json
{
  "students": [
    {
      "firstName": "Jane",
      "id": "100",
      "scores": {
        "physics": 91,
        "chemistry": 93,
        "maths": 99
      }
    },
    {
      "firstName": "John",
      "id": "101",
      "scores": {
        "physics": 97,
        "chemistry": 98,
        "maths": 99
      }
    },
    {
      "firstName": "Jen",
      "id": "102",
      "scores": {
        "physics": 96,
        "chemistry": 95,
        "maths": 100
      }
    }
  ]
}
```

### Pinot Schema

The Pinot schema for this example would look as follows.

```json
{
  "schemaName": "students001",
  "enableColumnBasedNullHandling": false,
  "dimensionFieldSpecs": [
    {
      "name": "students.firstName",
      "dataType": "STRING",
      "notNull": false,
      "fieldType": "DIMENSION"
    },
    {
      "name": "students.id",
      "dataType": "STRING",
      "notNull": false,
      "fieldType": "DIMENSION"
    },
    {
      "name": "students.scores",
      "dataType": "JSON",
      "notNull": false,
      "fieldType": "DIMENSION"
    }
  ],
  "dateTimeFieldSpecs": [
    {
      "name": "ts",
      "fieldType": "DATE_TIME",
      "dataType": "LONG",
      "format": "1:MILLISECONDS:EPOCH",
      "granularity": "1:MILLISECONDS"
    }
  ],
  "metricFieldSpecs": []
}
```

### Pinot Table Configuration

The Pinot table configuration for this schema would look as follows.

```json
{
    "ingestionConfig": {
      "complexTypeConfig": {
        "fieldsToUnnest": [
          "students"
        ]
      }
  }
}
```

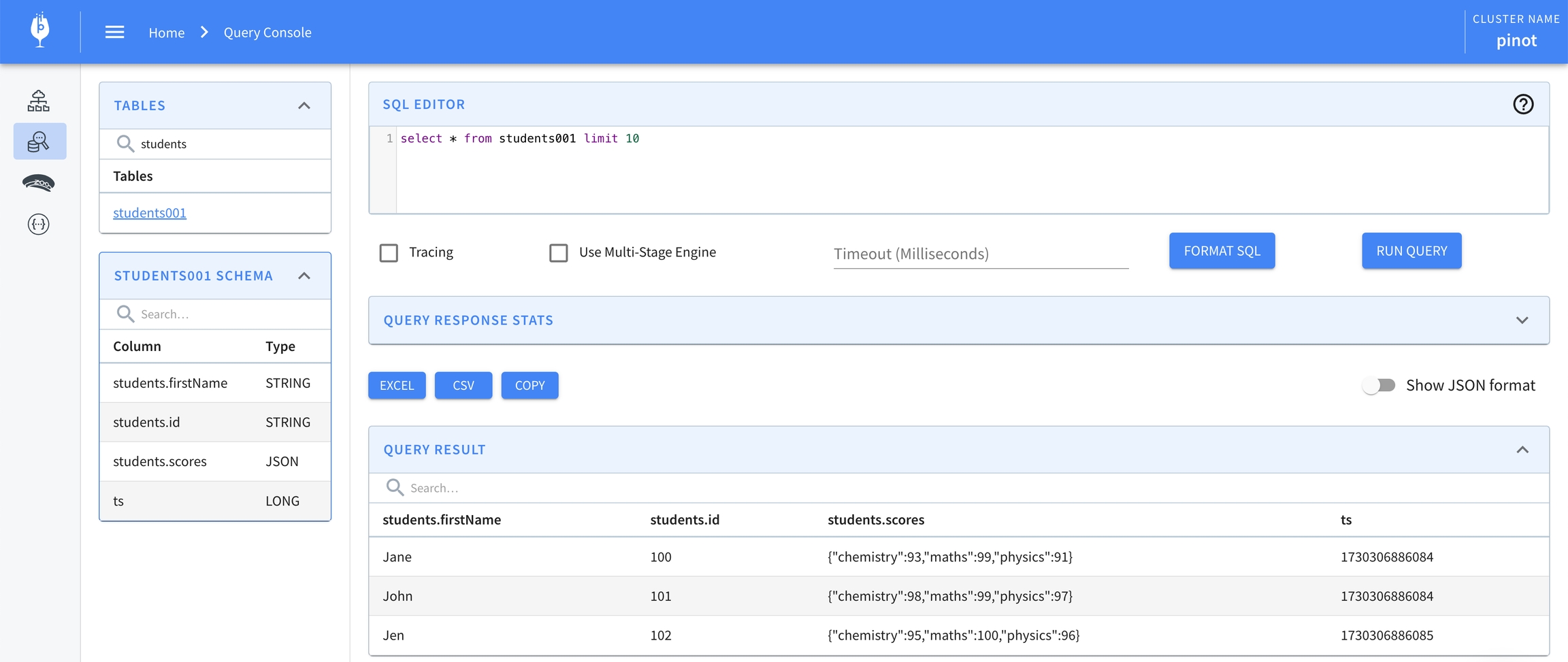

### Data in Pinot

Post ingestion, the student records would appear as separate records in Pinot. Note that the nested field `scores` is captured as a JSON field.

![Unnested Student Records](https://content.gitbook.com/content/mWrTLZF04raJ5XRlH8YT/blobs/doZ41rl8Pr532fbasoI6/root-level-unnest-example.png)

## Unnest sibling collections

In this example, we would look at un-nesting the sibling collections "student" and "teacher".

### Sample JSON Record

```json
{
  "student": [
    {
      "name": "John"
    },
    {
      "name": "Jane"
    }
  ],
  "teacher": [
    {
      "physics": "Kim"
    },
    {
      "chemistry": "Lu"
    },
    {
      "maths": "Walsh"
    }
  ]
}
```

### Pinot Schema

```json
{
  "schemaName": "students002",
  "enableColumnBasedNullHandling": false,
  "dimensionFieldSpecs": [
    {
      "name": "student.name",
      "dataType": "STRING",
      "fieldType": "DIMENSION",
      "notNull": false
    },
    {
      "name": "teacher.physics",
      "dataType": "STRING",
      "fieldType": "DIMENSION",
      "notNull": false
    },
    {
      "name": "teacher.chemistry",
      "dataType": "STRING",
      "fieldType": "DIMENSION",
      "notNull": false
    },
    {
      "name": "teacher.maths",
      "dataType": "STRING",
      "fieldType": "DIMENSION",
      "notNull": false
    }
  ]
}
```

### Pinot Table configuration

```json
  "complexTypeConfig": {
    "fieldsToUnnest": [
      "student",
      "teacher"
    ]
  }
```

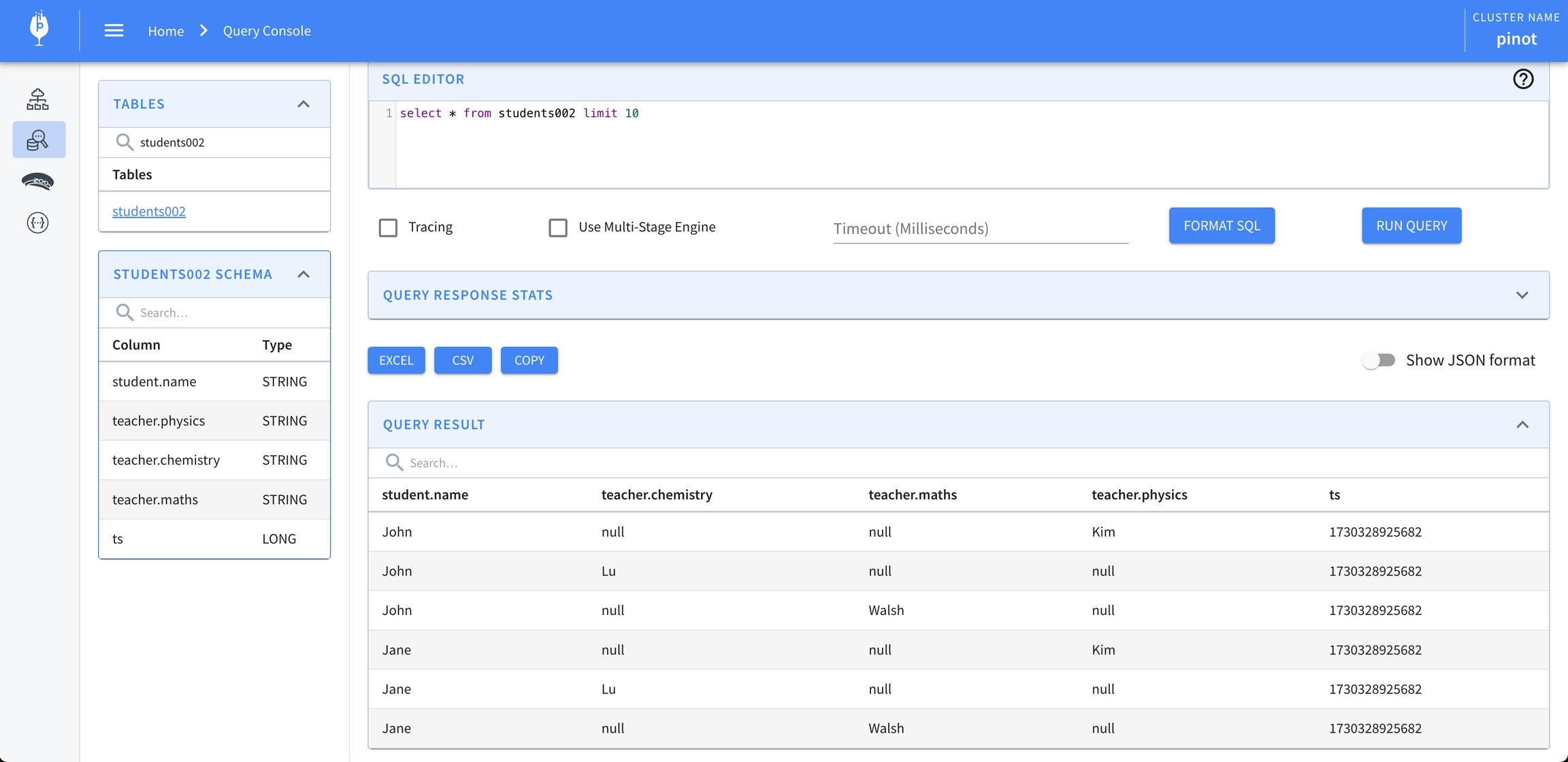

### Data in Pinot

![Unnested student records](https://content.gitbook.com/content/mWrTLZF04raJ5XRlH8YT/blobs/KO6ZbDy0UfkNyWgHVELP/sibling-level-unnest-example.png)

## Unnest nested collection

In this example, we would look at un-nesting the nested collection "students.grades".

### Sample JSON Record

```json
{
  "students": [
    {
      "name": "Jane",
      "grades": [
        {
          "physics": "A+"
        },
        {
          "maths": "A-"
        }
      ]
    },
    {
      "name": "John",
      "grades": [
        {
          "physics": "B+"
        },
        {
          "maths": "B-"
        }
      ]
    }
  ]
}
```

### Pinot Schema

```json
{
  "schemaName": "students003",
  "enableColumnBasedNullHandling": false,
  "dimensionFieldSpecs": [
    {
      "name": "students.name",
      "dataType": "STRING",
      "fieldType": "DIMENSION",
      "notNull": false
    },
    {
      "name": "students.grades.physics",
      "dataType": "STRING",
      "fieldType": "DIMENSION",
      "notNull": false
    },
    {
      "name": "students.grades.maths",
      "dataType": "STRING",
      "fieldType": "DIMENSION",
      "notNull": false
    }
  ]
}
```

### Pinot Table configuration

```json
  "complexTypeConfig": {
    "fieldsToUnnest": [
      "students",
      "students.grades"
    ]
  }
```

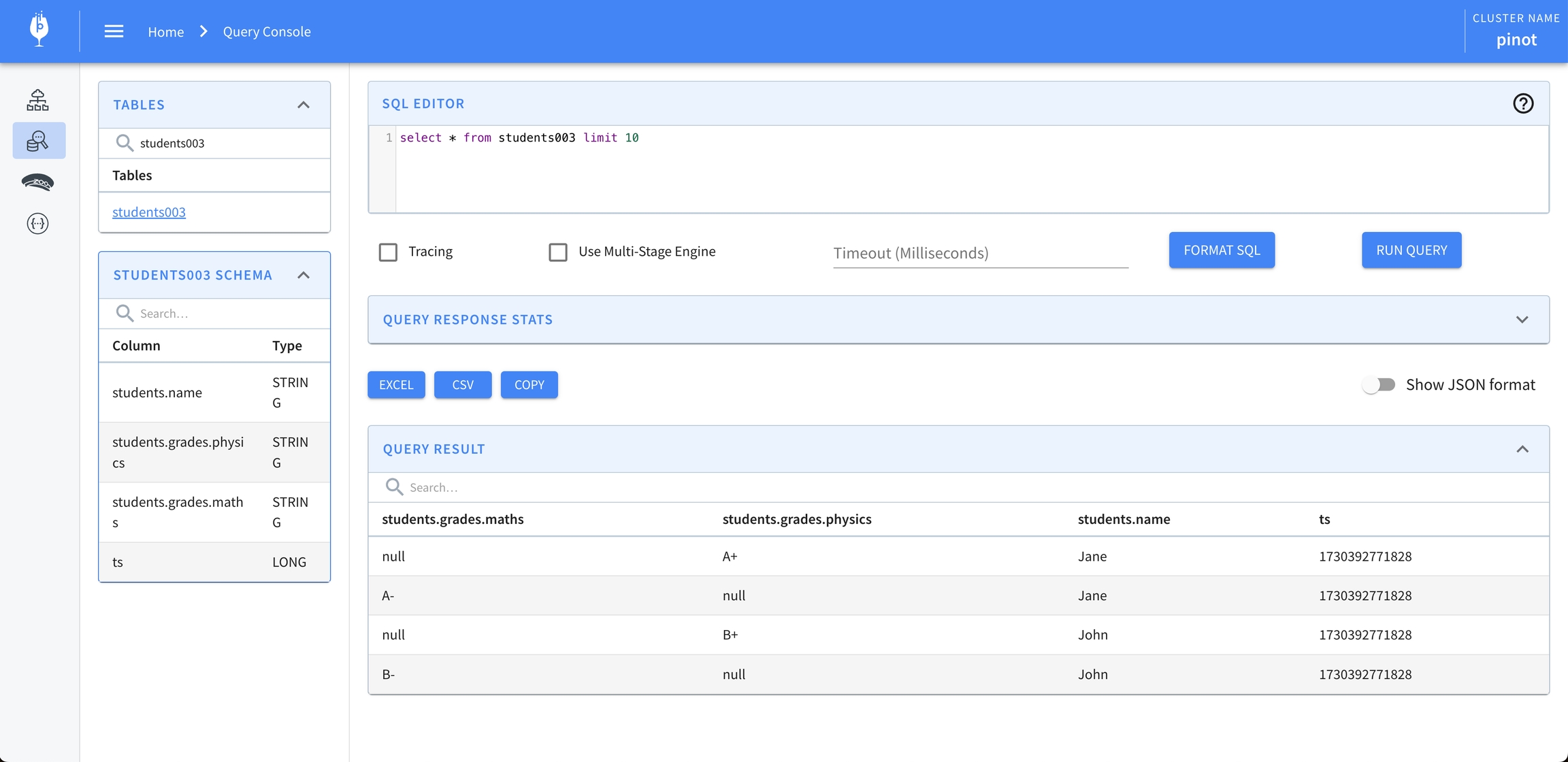

### Data in Pinot

![Unnest Nested Collection](https://content.gitbook.com/content/mWrTLZF04raJ5XRlH8YT/blobs/bd0PTIiU46431hm3qGrz/unnest-nested-collection-example.png)

## Unnest Multi Level Array

In this example, we would look at un-nesting the array "finalExam" which is located within the array "students".

### Sample JSON Record

```json
{
  "students": [
    {
      "name": "John",
      "grades": {
        "finalExam": [
          {
            "physics": "A+"
          },
          {
            "maths": "A-"
          }
        ]
      }
    },
    {
      "name": "Jane",
      "grades": {
        "finalExam": [
          {
            "physics": "B+"
          },
          {
            "maths": "B-"
          }
        ]
      }
    }
  ]
}
```

### Pinot Schema

```json
{
    "schemaName": "students004",
    "enableColumnBasedNullHandling": false,
    "dimensionFieldSpecs": [
      {
        "name": "students.name",
        "dataType": "STRING",
        "notNull": false,
        "fieldType": "DIMENSION"
      },
      {
        "name": "students.grades.finalExam.physics",
        "dataType": "STRING",
        "notNull": false,
        "fieldType": "DIMENSION"
      },
      {
        "name": "students.grades.finalExam.maths",
        "dataType": "STRING",
        "notNull": false,
        "fieldType": "DIMENSION"
      }
    ]
  }
```

### Pinot Table configuration

```json
  "complexTypeConfig": {
    "fieldsToUnnest": [
      "students",
      "students.grades.finalExam"
    ]
  }
```

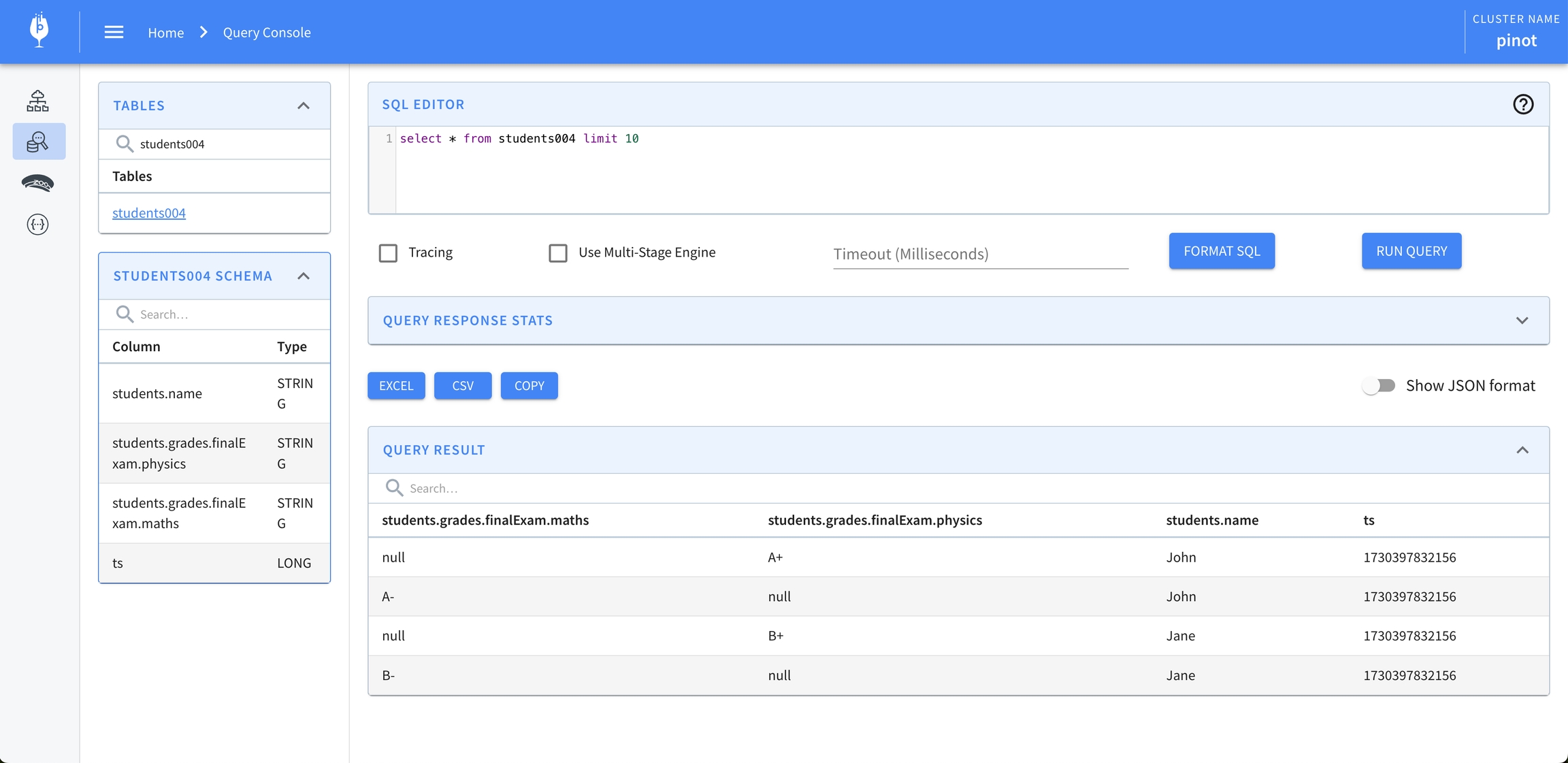

### Data in Pinot

![Unnested Multi Level Array](https://content.gitbook.com/content/mWrTLZF04raJ5XRlH8YT/blobs/25ve6oN8OUvVqhdvRuuL/unnest-multi-level-array.png)

## Convert inner collections

In this example, the inner collection "grades" is converted into a multi value string column.

### Sample JSON Record

```json
{
  "students": [
    {
      "name": "John",
      "grades": [
        {
          "physics": "A+"
        },
        {
          "maths": "A"
        }
      ]
    },
    {
      "name": "Jane",
      "grades": [
        {
          "physics": "B+"
        },
        {
          "maths": "B-"
        }
      ]
    }
  ]
}
```

### Pinot Schema

```json
{
    "schemaName": "students005",
    "enableColumnBasedNullHandling": false,
    "dimensionFieldSpecs": [
      {
        "name": "students.name",
        "dataType": "STRING",
        "notNull": false,
        "fieldType": "DIMENSION"
      },
      {
        "name": "students.grades",
        "dataType": "STRING",
        "notNull": false,
        "isSingleValue": false,
        "fieldType": "DIMENSION"
      }
    ]
  }
```

### Pinot Table configuration

```json
  "complexTypeConfig": {
    "fieldsToUnnest": [
      "students"
    ]
  }
```

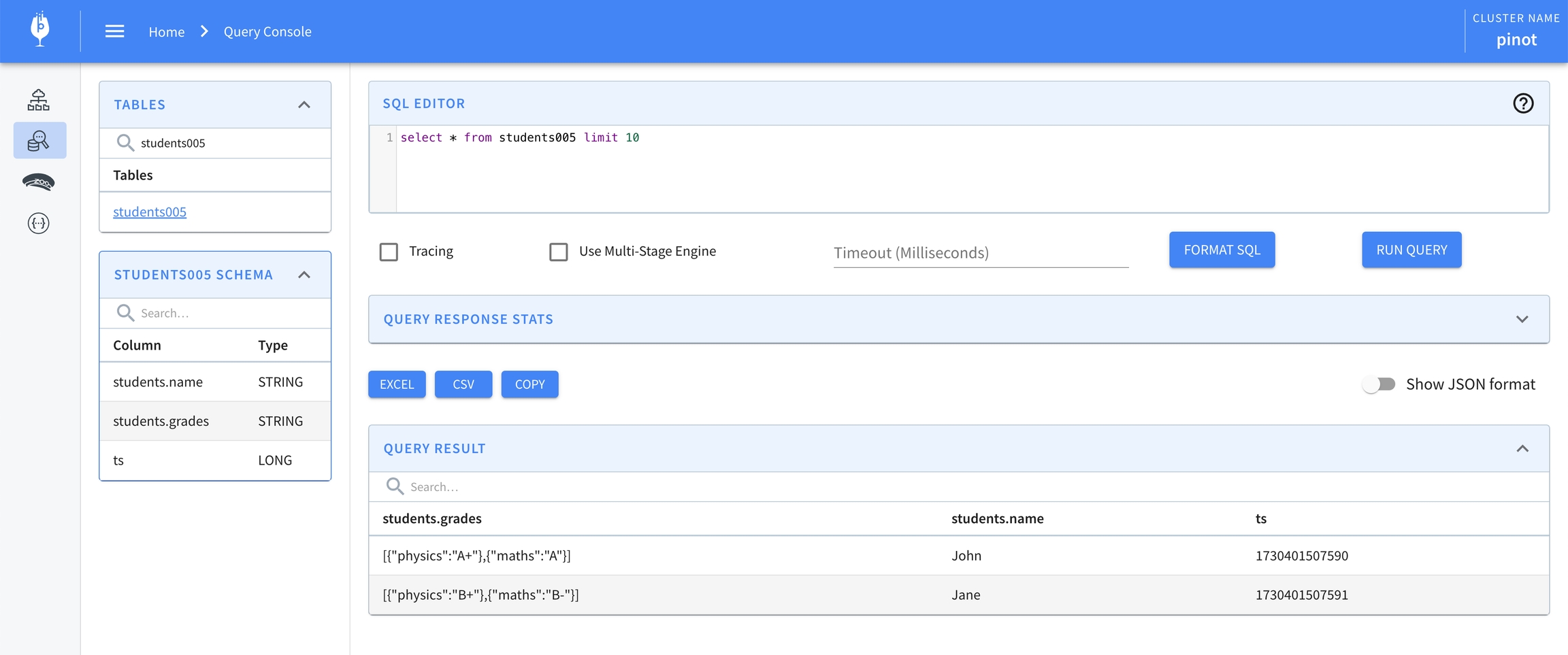

### Data in Pinot

![Converted Inner Collection](https://content.gitbook.com/content/mWrTLZF04raJ5XRlH8YT/blobs/zVgn1NbKlsgvByDfIJfU/convert-inner-collection-mv-string-example.png)

## Primitive Array Converted to JSON String

In this example, the array of primitives "extra\_curricular" is converted to a Json string.

### Sample JSON Record

```json
{
  "students": [
    {
      "name": "John",
      "extra_curricular": [
        "piano", "soccer"
      ]
    },
    {
      "name": "Jane",
      "extra_curricular": [
        "violin", "music"
      ]
    }
  ]
}
```

### Pinot Schema

```json
{
    "schemaName": "students006",
    "enableColumnBasedNullHandling": false,
    "dimensionFieldSpecs": [
      {
        "name": "students.name",
        "dataType": "STRING",
        "notNull": false,
        "fieldType": "DIMENSION"
      },
      {
        "name": "students.extra_curricular",
        "dataType": "JSON",
        "notNull": false,
        "fieldType": "DIMENSION"
      }
    ]
  }
```

### Pinot Table configuration

```json
    "complexTypeConfig": {
      "fieldsToUnnest": [
        "students"
      ],
      "collectionNotUnnestedToJson": "ALL"
    }
```

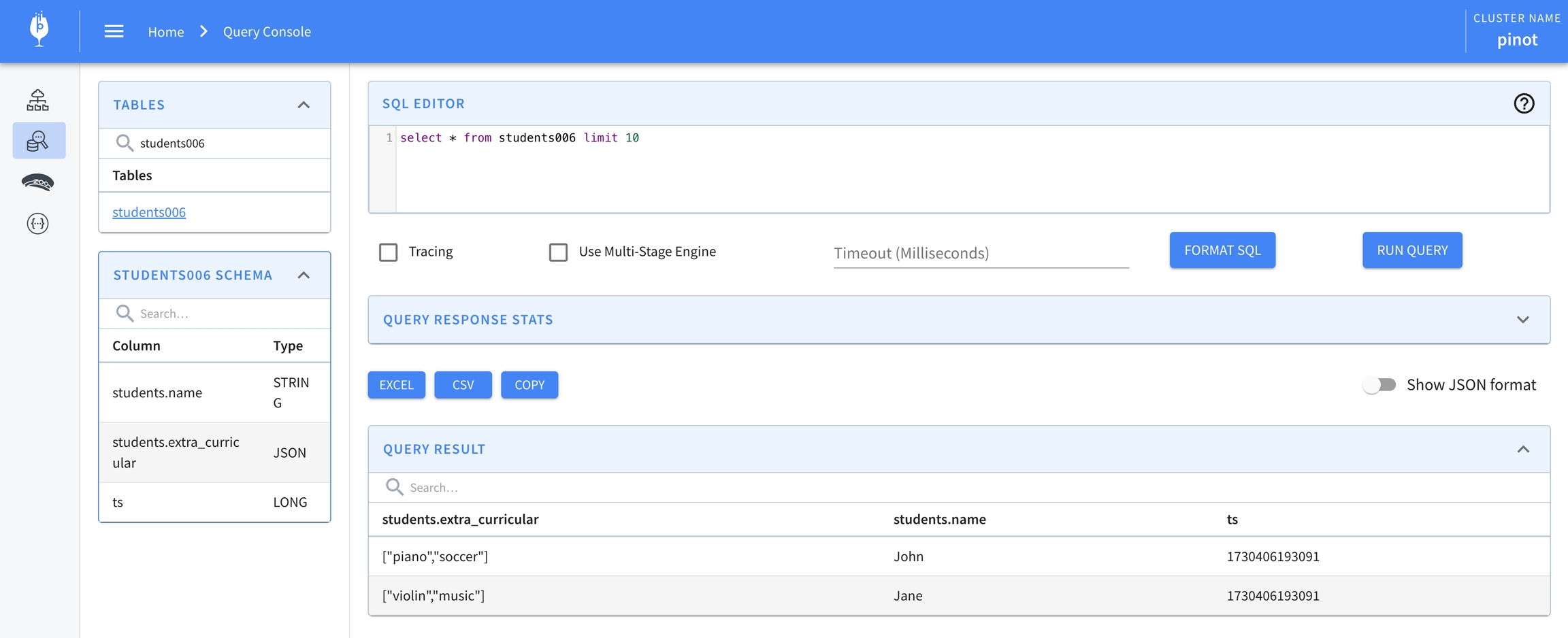

### Data in Pinot

![Primitives Converted to JSON](https://content.gitbook.com/content/mWrTLZF04raJ5XRlH8YT/blobs/hUdPluVXSbQ1gt8lxZDN/convert-primitves-to-json-example.png)


---
