  1. Basics
  2. Concepts
  3. Components

Pinot Data Explorer

Pinot Data Explorer is a user-friendly interface in Apache Pinot for interactive data exploration, querying, and visualization.

PreviousTime boundaryNextGetting Started

Was this helpful?

Once you have set up a cluster, you can start exploring the data and the APIs using the Pinot Data Explorer.

Navigate to in your browser to open the Data Explorer UI.

Cluster Manager

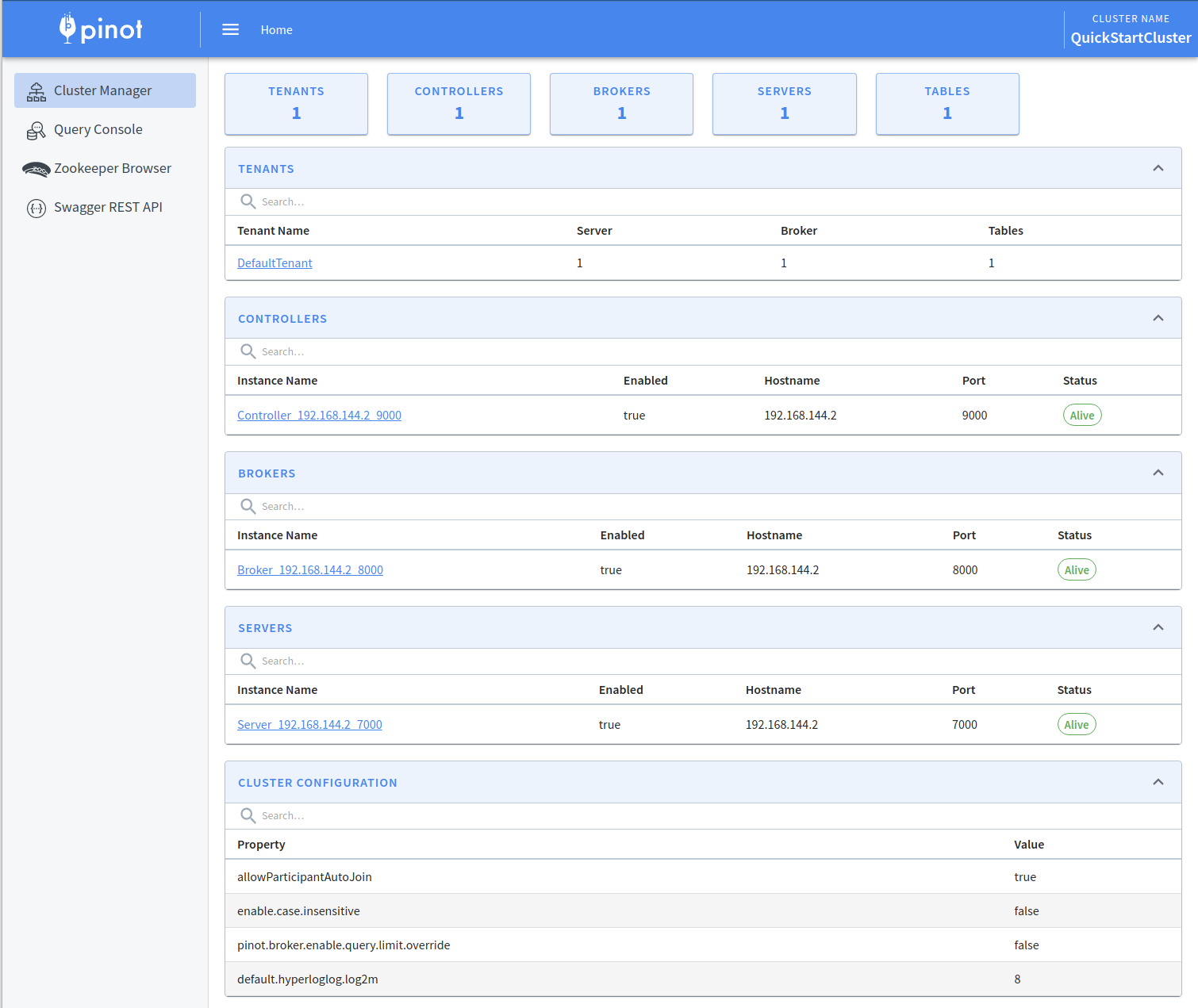

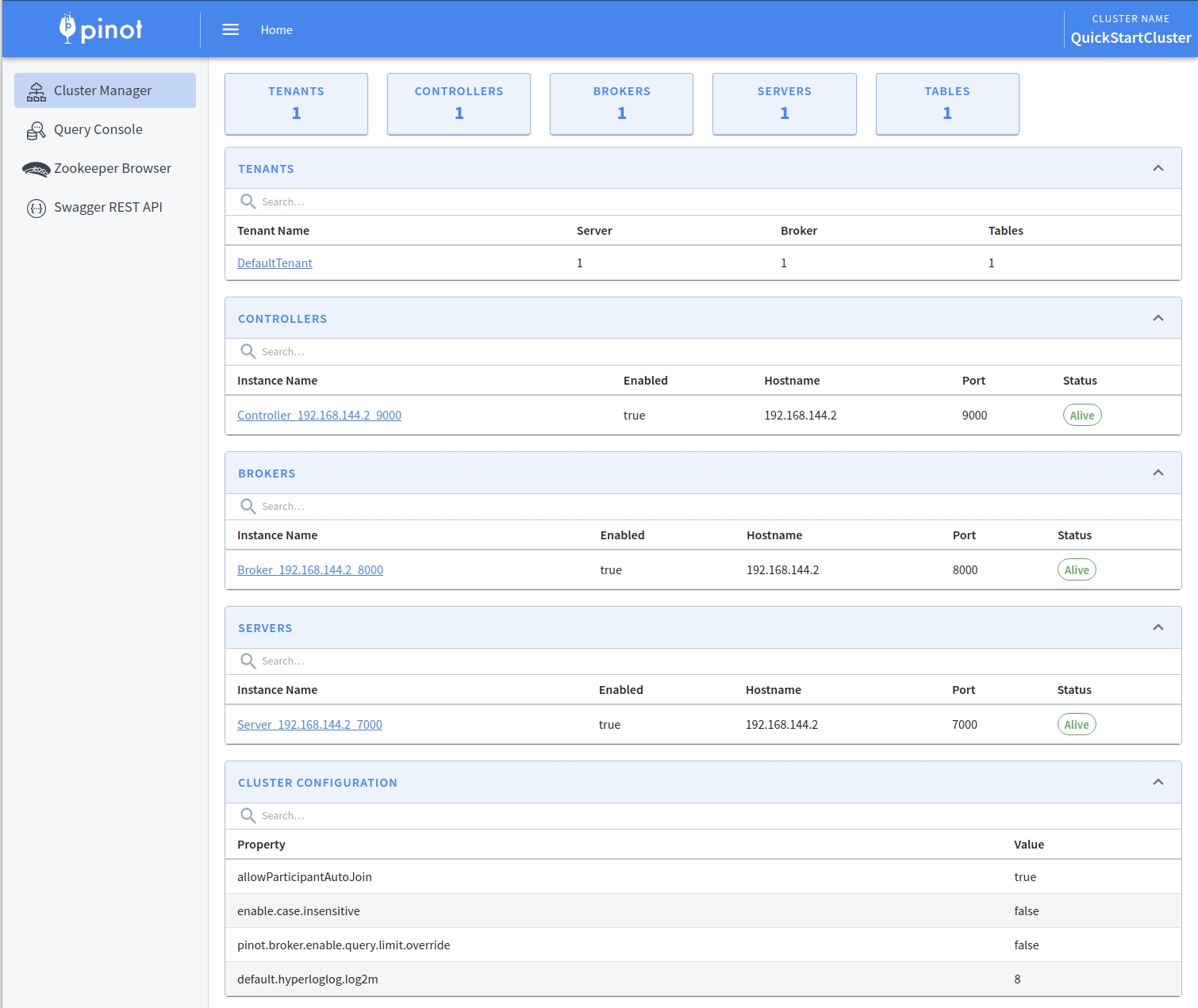

The first screen that you'll see when you open the Pinot Data Explorer is the Cluster Manager. The Cluster Manager provides a UI to operate and manage your cluster.

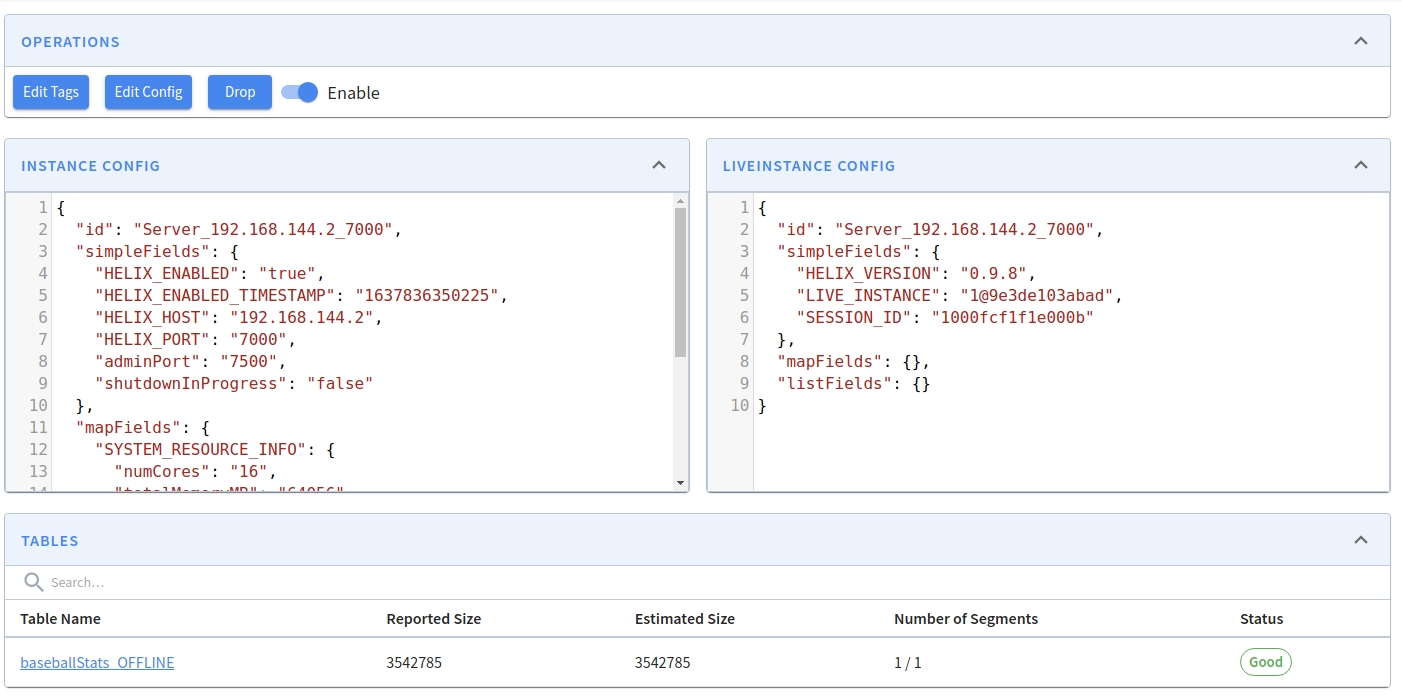

If you want to view the contents of a server, click on its instance name. You'll then see the following:

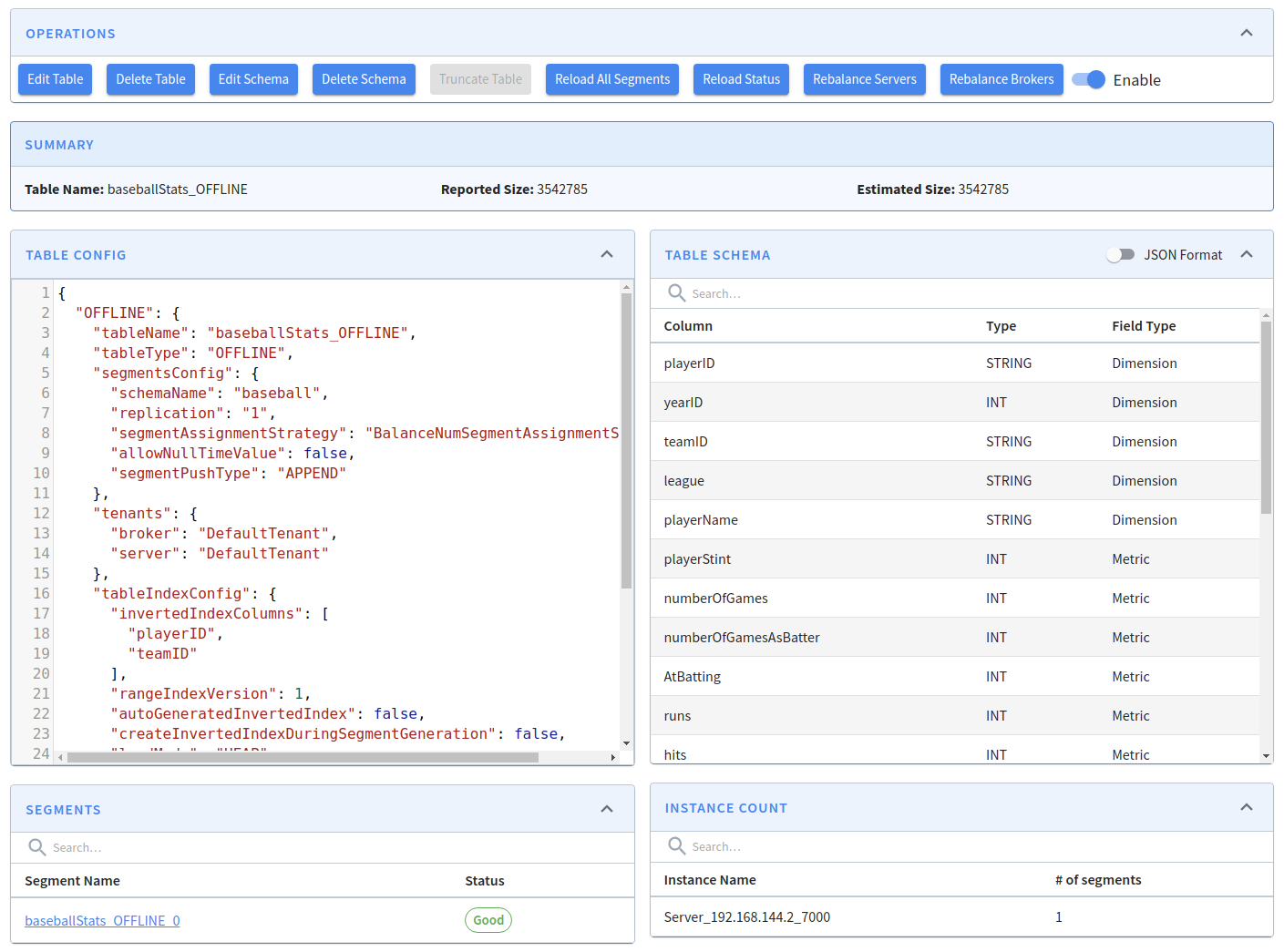

To view the baseballStats table, click on its name, which will show the following screen:

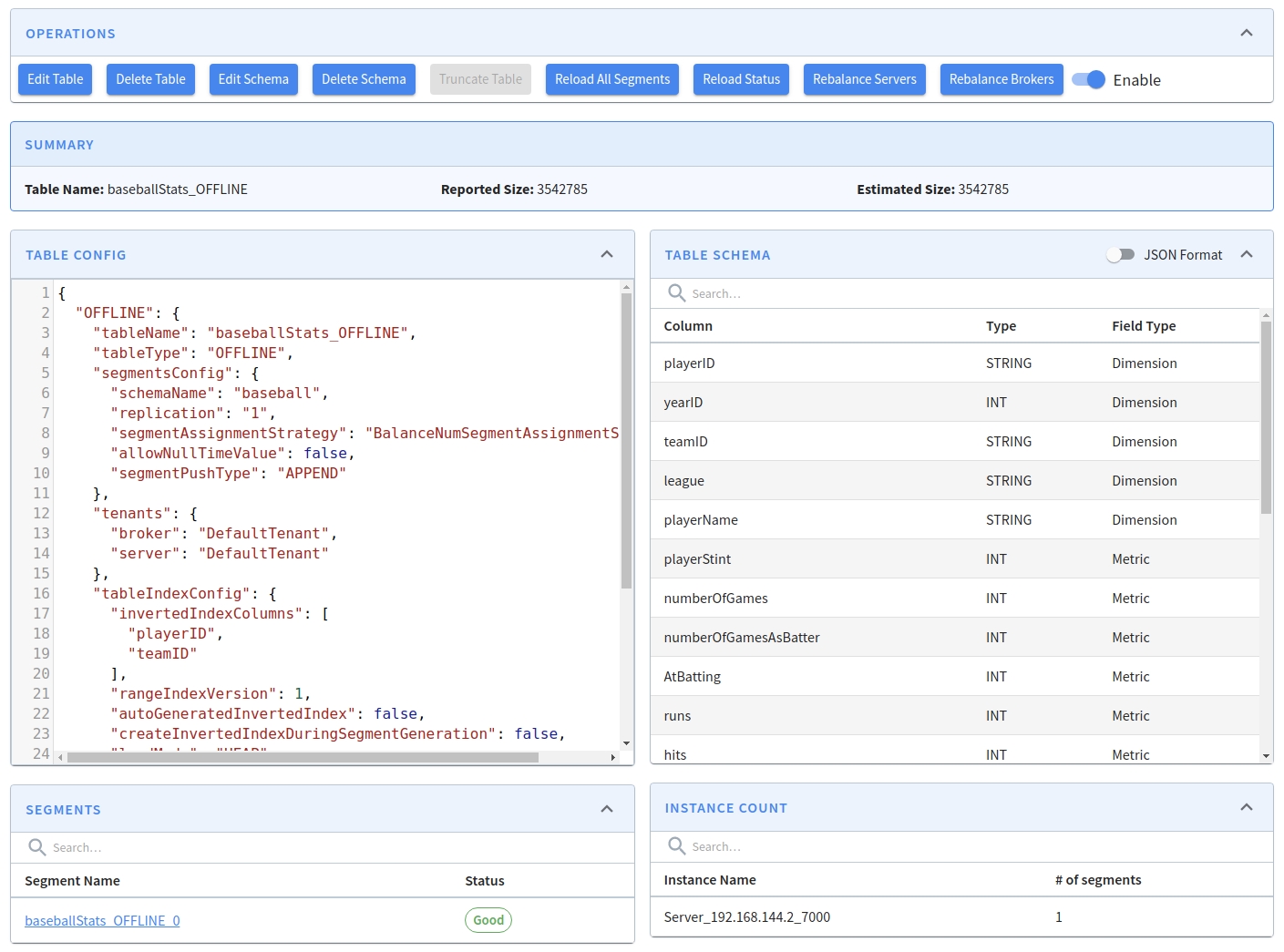

From this screen, we can edit or delete the table, edit or adjust its schema, as well as several other operations.

For example, if we want to add yearID to the list of inverted indexes, click on Edit Table, add the extra column, and click Save:

Query Console

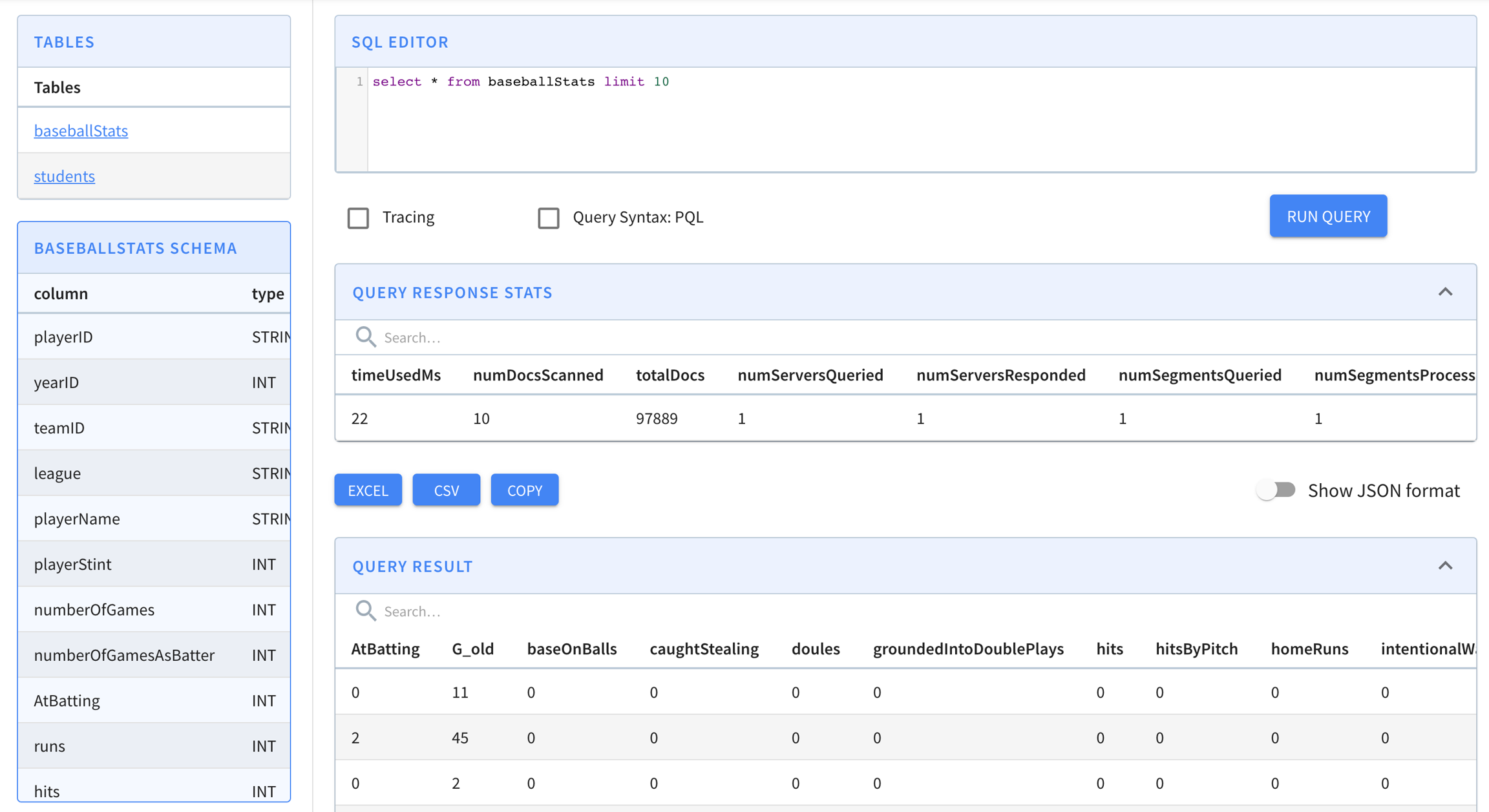

You can also execute a sample query select * from baseballStats limit 10 by typing it in the text box and clicking the Run Query button.

Cmd + Enter can also be used to run the query when focused on the console.

Here are some sample queries you can try:

select playerName, max(hits)
from baseballStats
group by playerName
order by max(hits) desc
select sum(hits), sum(homeRuns), sum(numberOfGames)
from baseballStats
where yearID > 2010
select *
from baseballStats
order by league

Rest API

Edit Table

Let's run some queries on the data in the Pinot cluster. Navigate to to see the querying interface.

We can see our baseballStats table listed on the left (you will see meetupRSVP or airlineStats if you used the streaming or the hybrid ). Click on the table name to display all the names along with the data types of the columns of the table.

Pinot supports a subset of standard SQL. For more information, see .

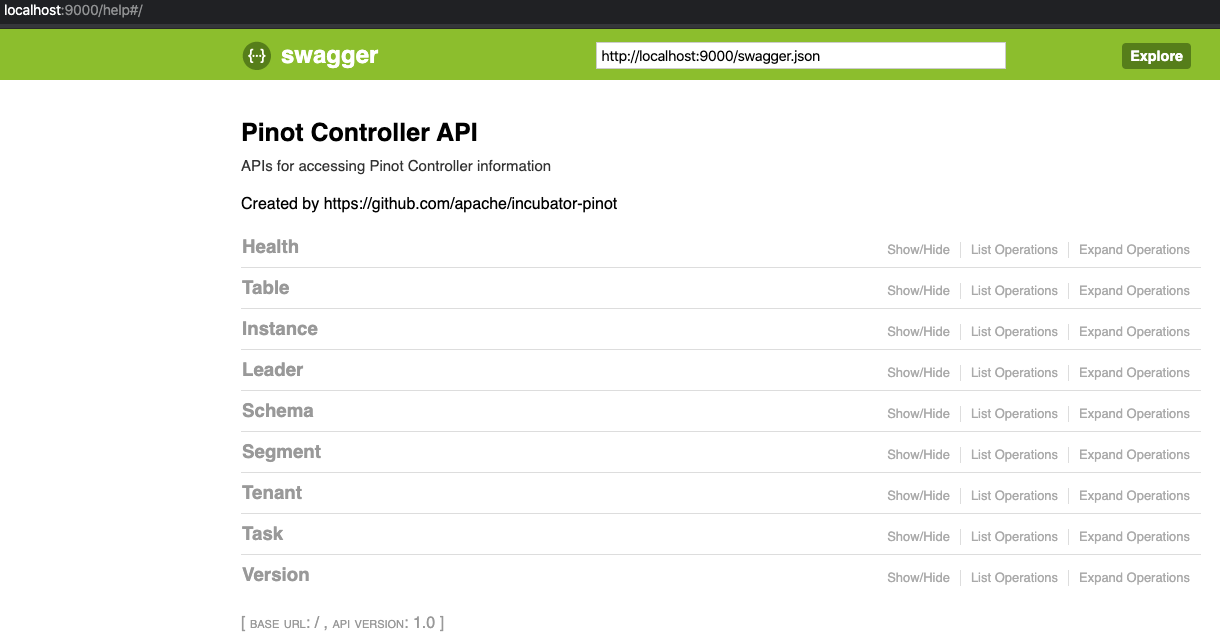

The contains all the APIs that you will need to operate and manage your cluster. It provides a set of APIs for Pinot cluster management including health check, instances management, schema and table management, data segments management.

Let's check out the tables in this cluster by going to , click Try it out, and then click Execute. We can see thebaseballStats table listed here. We can also see the exact cURL call made to the controller API.

You can look at the configuration of this table by going to , click Try it out, type baseballStats in the table name, and then click Execute.

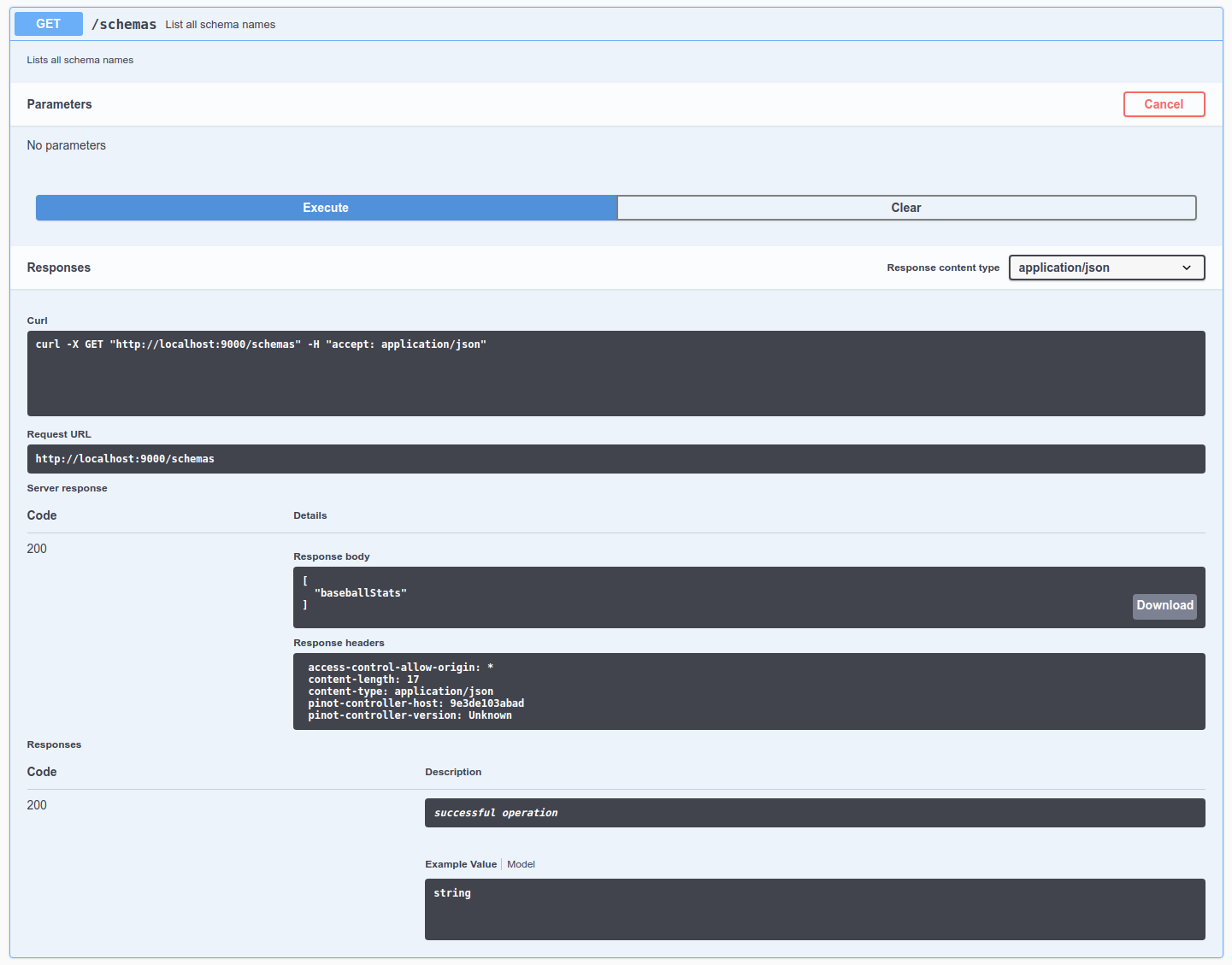

Let's check out the schemas in the cluster by going to , click Try it out, and then click Execute. We can see a schema called baseballStats in this list.

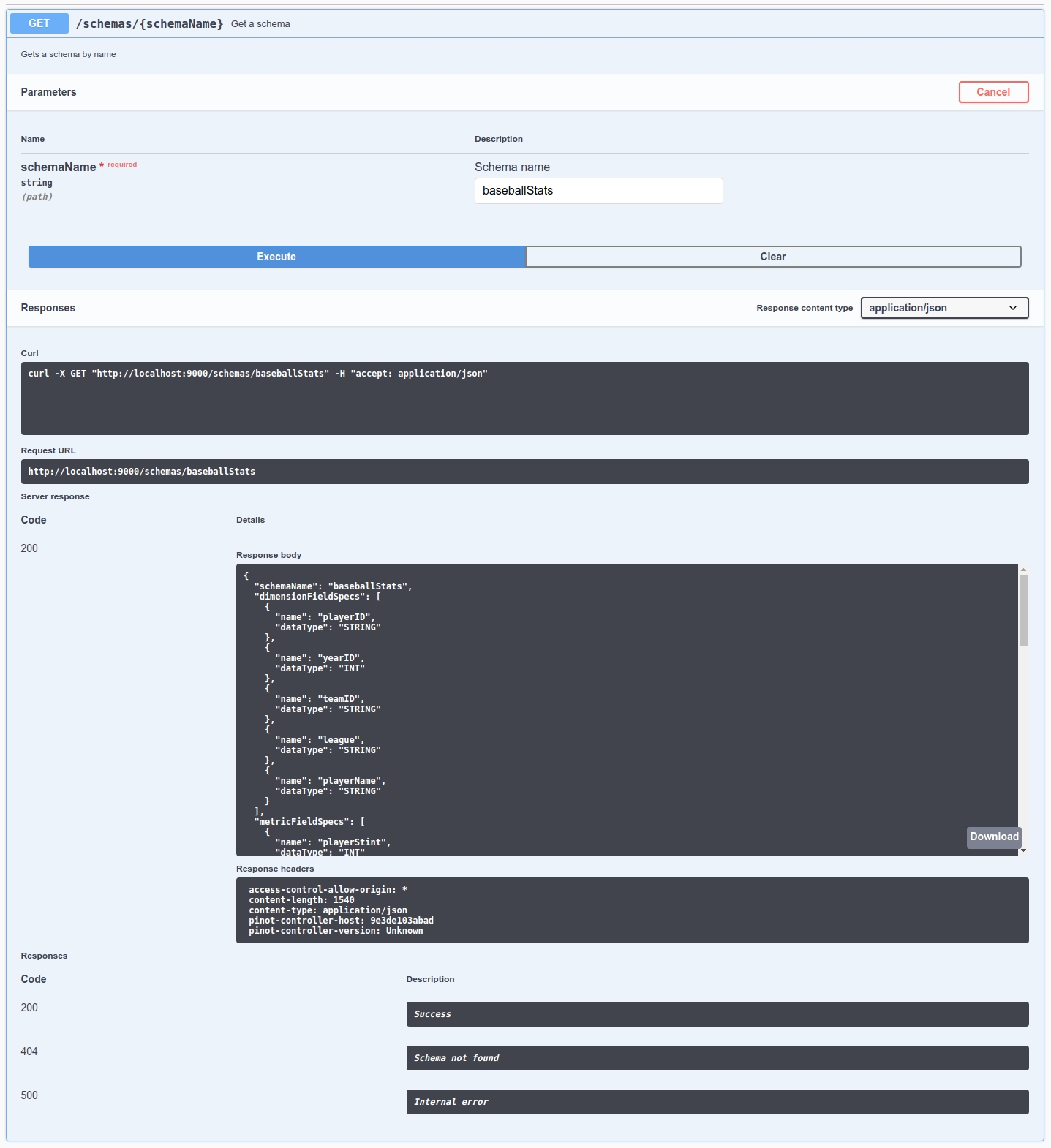

Take a look at the schema by going to , click Try it out, type baseballStats in the schema name, and then click Execute.

Finally, let's check out the data segments in the cluster by going to , click Try it out, type in baseballStats in the table name, and then click Execute. There's 1 segment for this table, called baseballStats_OFFLINE_0.

To learn how to upload your own data and schema, see or .

Query Console
quick start
Pinot Query Language
Pinot Admin UI
Table -> List all tables in cluster
Tables -> Get/Enable/Disable/Drop a table
Schema -> List all schemas in the cluster
Schema -> Get a schema
Segment -> List all segments
Batch Ingestion
Stream ingestion
http://localhost:9000
Pinot Cluster Manager
Pinot Server
baseballStats Table
List all tables in cluster
List all schemas in the cluster
baseballStats Schema
