  1. For Developers
  2. Basics

Code Setup

PreviousContribution GuidelinesNextCode Modules and Organization

Was this helpful?

Dev Environment Setup

To contribute to Pinot, follow the instructions below.

Git

Pinot uses git for source code management. If you are new to Git, it will be good to review of Git and a common tasks like and .

Getting the Source Code

Create a fork

To limit the number of branches created on the Apache Pinot repository, we recommend that you create a fork by clicking on the fork button . Read more about

Clone the repository locally

$ mkdir workspace
$ cd workspace
$ git clone git@github.com:<github username>/pinot.git
$ cd pinot
# set upstream
$ git remote add upstream https://github.com/apache/pinot
# check that the upstream shows up correctly
$ git remote -v

Maven

Run the following maven command to set up the project.

# compile, download sources
$mvn install package -DskipTests -Pbin-dist -DdownloadSources -DdownloadJavadocs

Set up IDE

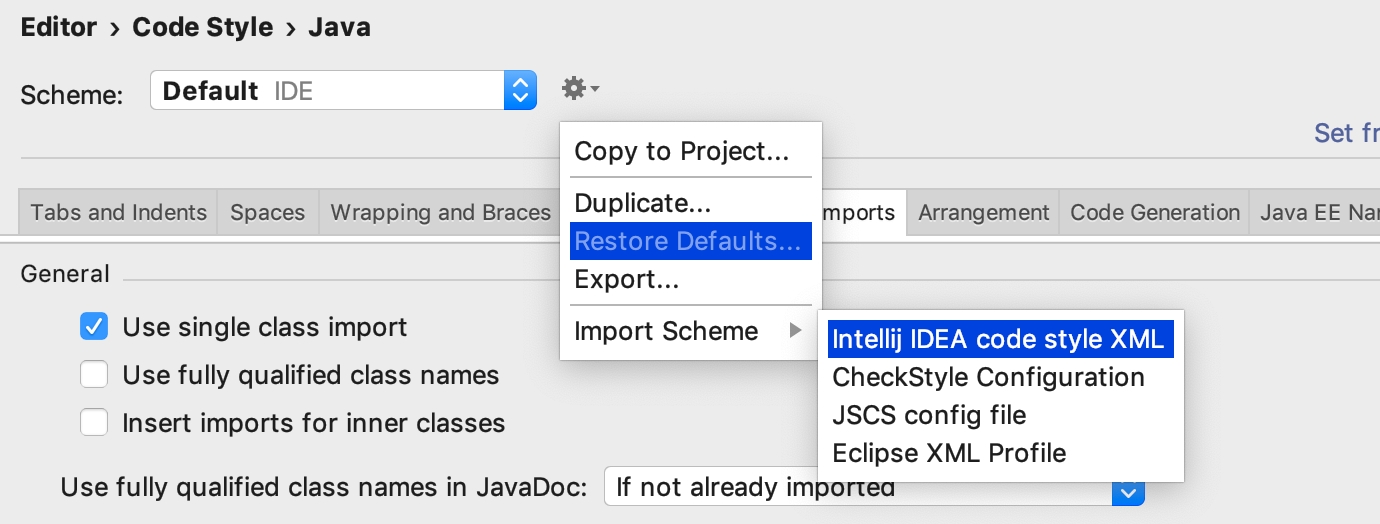

Intellij

To import the Pinot stylesheet this launch intellij and navigate to Preferences (on Mac) or Settings on Linux.

  • Navigate to Editor -> Code Style -> Java

  • Select Import Scheme -> Intellij IDES code style XML

  • Choose codestyle-intellij.xml from pinot/config folder of your workspace. Click Apply.

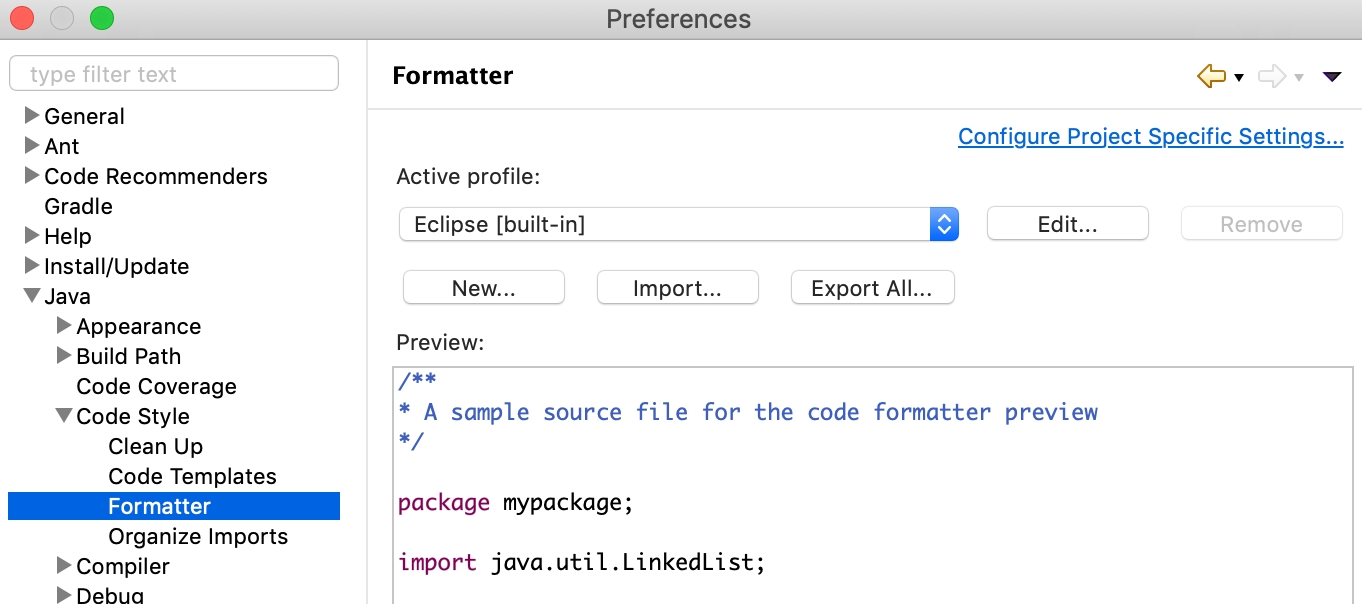

Eclipse

To import the Pinot stylesheet this launch eclipse and navigate to Preferences (on Mac) or Settings on Linux.

  • Navigate to Java->Code Style->Formatter

  • Choose codestyle-eclipse.xml from pinot/config folder of your workspace. Click Apply.

Starting Pinot via IDE

Batch Quickstart

  • start all Pinot components (ZK, Controller, Server, Broker) in the same JVM

  • create Baseball Stats table

Go to localhost:9000 in your browser and play with the query console.

Real-time Quickstart

  • start all Pinot components (ZK, Controller, Server, Broker) in the same JVM

  • Start Kafka in the same JVM

  • create MeetUpRSVP table.

  • Live stream meetup events into Kafka

Go to localhost:9000 in your browser and play with the meetup RSVP table.

Pinot is a Maven project and familiarity with Maven will help you work with Pinot code. If you are new to Maven, you can read about Maven and .

Import the project into your favorite IDE. Set up stylesheet according to your IDE. We have provided instructions for intellij and eclipse. If you are using other IDEs, ensure you use stylesheet based on .

Once the IDE is set up, you can run for batch mode or for real-time mode.
