Troubleshooting Pinot

PreviousHDFS as Deep StorageNextFrequently Asked Questions (FAQs)

Was this helpful?

Find debug information in Pinot

Pinot offers various ways to assist with troubleshooting and debugging problems that might happen.

Start with the which will surface many of the commonly occurring problems. The debug api provides information such as tableSize, ingestion status, and error messages related to state transition in server.

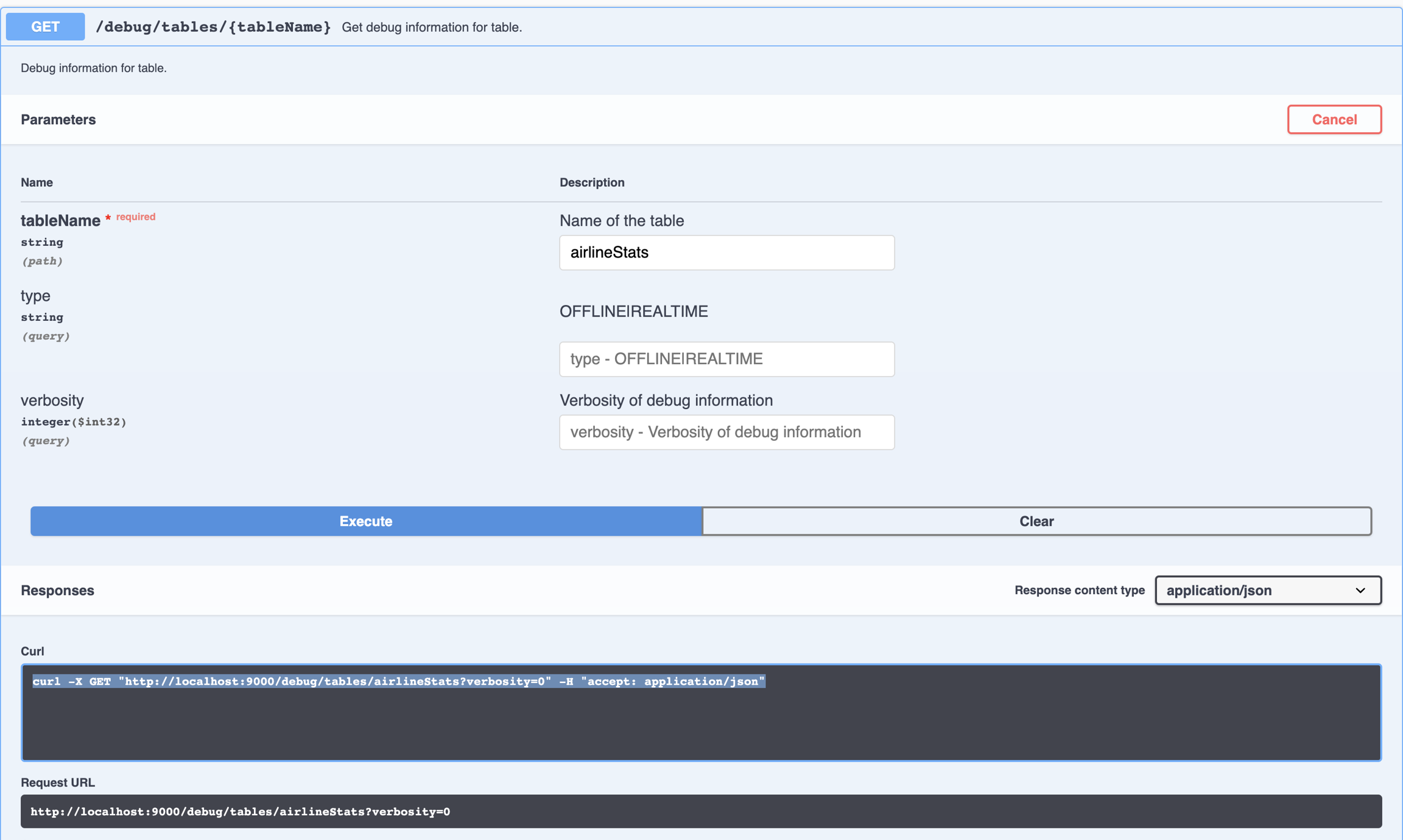

The table debug API can be invoked via the Swagger UI, as in the following image:

It can also be invoked directly by accessing the URL as follows. The api requires the tableName, and can optionally take tableType (offline|realtime) and verbosity level.

curl -X GET "http://localhost:9000/debug/tables/airlineStats?verbosity=0" -H "accept: application/json"

Finally, all pinot components log debug information related to error conditions.

Debug a slow query or a query which keeps timing out

Use the following steps:

  1. If the query executes, look at the query result. Specifically look at numEntriesScannedInFilter and numDocsScanned.

    1. If numEntriesScannedInFilter is very high, consider adding indexes for the corresponding columns being used in the filter predicates. You should also think about partitioning the incoming data based on the dimension most heavily used in your filter queries.

    2. If numDocsScanned is very high, that means the selectivity for the query is low and lots of documents need to be processed after the filtering. Consider refining the filter to increase the selectivity of the query.

  2. If the query is not executing, you can extend the query timeout by appending a timeoutMs parameter to the query, for example, select * from mytable limit 10 option(timeoutMs=60000). Then repeat step 1, as needed.

  3. Look at garbage collection (GC) stats for the corresponding Pinot servers. If a particular server seems to be running full GC all the time, you can do a couple of things such as

    1. Increase Java Virtual Machine (JVM) heap (java -Xmx<size>).

    2. Consider using off-heap memory for segments.

    3. Decrease the total number of segments per server (by partitioning the data in a more efficient way).

Pinot also provides a variety of operational metrics that can be used for creating dashboards, alerting and .

monitoring
debug API
Swagger - Table Debug Api
