Use the multi-stage query engine (v2)

To query using distributed joins, window functions, and other multi-stage operators in real time, turn on the multi-stage query engine (v2).

To query using distributed joins, window functions, and other multi-stage operators in real time, you must enable the multi-stage query engine (v2). To enable v2, do any of the following:

• Enable the multi-stage query engine in the Query Console

• Programmatically access the multi-stage query engine:

  • Query using REST APIs

  • Query outside of the APIs using the query option

To learn more about what the multi-stage query engine is, see Multi-stage query engine (v2).

Enable the multi-stage query engine in the Query Console

• To enable the multi-stage query engine, in the Pinot Query Console, select the Use Multi-Stage Engine check box.

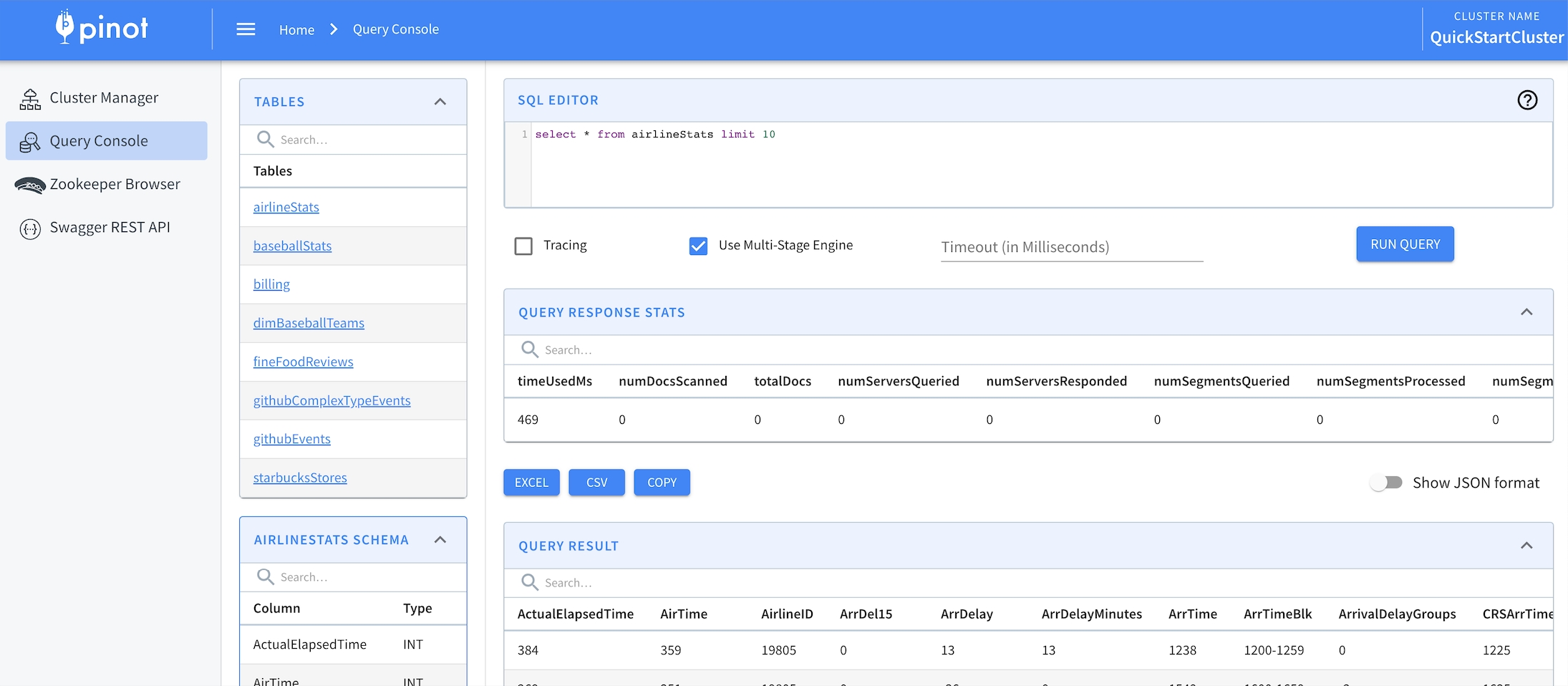

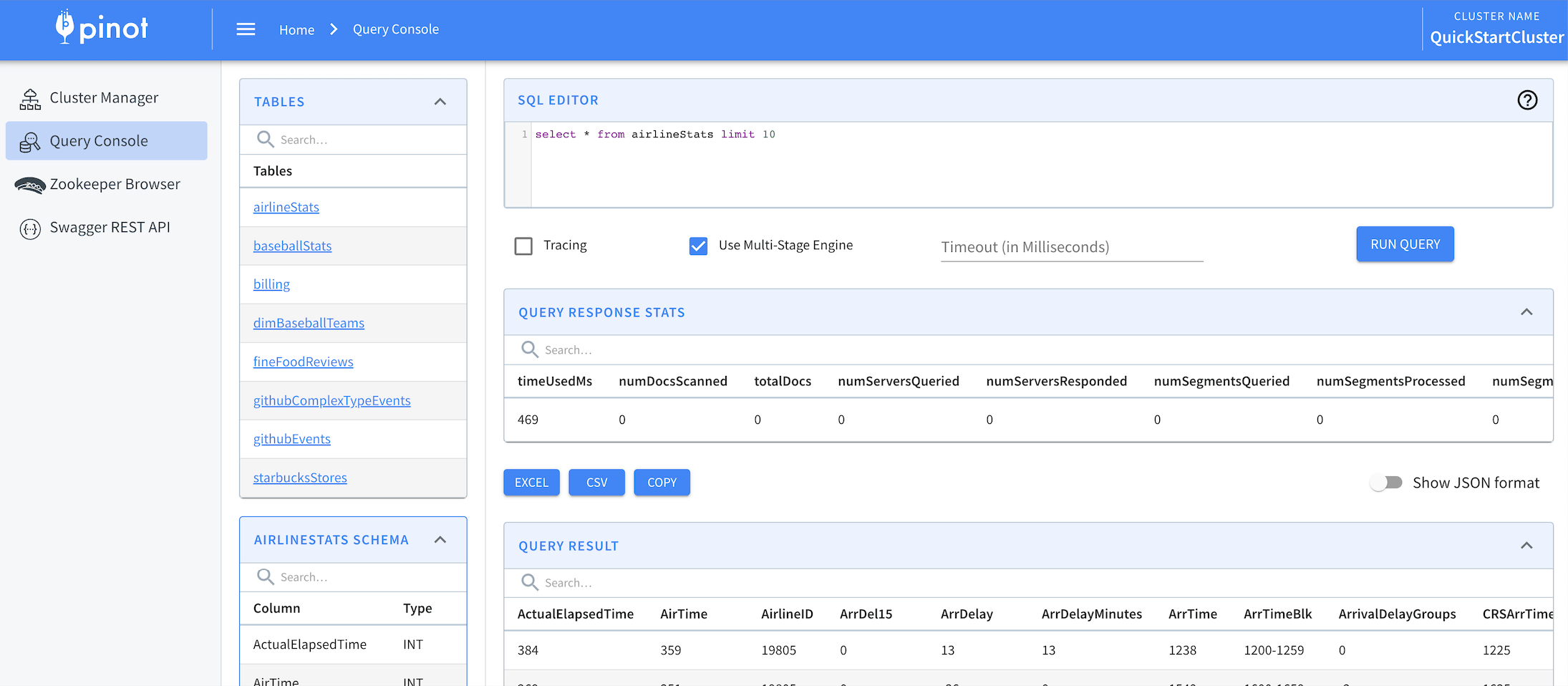

Pinot Query Console with Use Multi Stage Engine enabled

Programmatically access the multi-stage query engine

To query the Pinot multi-stage query engine, use REST APIs or the query option:

Use REST APIs

The Controller admin API and the Broker query API allow optional JSON payload for configuration. For example:

• For Controller Admin API

curl -X POST http://localhost:9000/sql -d
'
{
  "sql": "select * from baseballStats limit 10",
  "trace": false,
  "queryOptions": "useMultistageEngine=true"
}
'

• For Broker Query API

curl -X POST http://localhost:8000/query/sql -d '
{
  "sql": "select * from baseballStats limit 10",
  "trace": false,
  "queryOptions": "useMultistageEngine=true"
}
'

Use the query option

To enable the multi-stage engine via a query outside of the API, add the useMultistageEngine=true option to the top of your query.

For example:

SET useMultistageEngine=true; -- indicator to enable the multi-stage engine.
SELECT * from baseballStats limit 10
